- Part number
- 6GK5334-3TS01-2AR3
- Model no
- XRM334

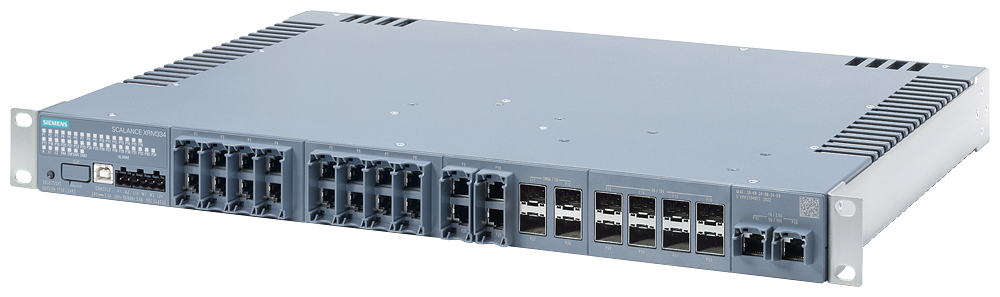

SCALANCE XRSiemens 6GK5334-3TS01-2AR3 SCALANCE XRM334 22-Port 24V DC Managed 19-Inch Ethernet Switch
Siemens SCALANCE XRM334 managed Layer 2 switch, 22 RJ45 + 12 SFP/SFP+ ports, 24V AC/DC, 19-inch rack.
Description
About the XRM334
About the XRM334
The Siemens SCALANCE XRM334 (6GK5334-3TS01-2AR3) is a managed Layer 2 industrial Ethernet switch with 22 RJ45 ports, 4 SFP and 8 SFP+ slots, and a 24V AC/DC power input in a 19-inch rack housing. An integrated redundancy manager supports ring redundancy on PROFINET IO networks with up to 2048 VLANs.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- ULhazloc
- CCC
Selection Notes
The 24V AC/DC power input and -40 to +70 degrees C operating range suit outdoor cabinets and installations running on 24V control voltage without a separate AC-DC converter. Unlike the XR322-12 family, this XRM334 carries an optional Layer 3 upgrade license, so it can be field-upgraded for routing if the network later needs it. Choose the AC-mains sibling variants in this family when the site standardizes on 110-240V supply instead of 24V.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XRM334 |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 4
| number of electrical connections: for network components or terminal equipment | 22; RJ45 |
|---|---|
| number of 10/100/1000 Mbit/s RJ45 ports: with securing collar | 22 |
| number of 1000/2500/5000/10000 Mbps RJ45 ports / with securing collar | 2 |
| number of electrical connections: for SFP | 4; 100 Mbps and 1000 Mbps SFP usable |
Show all 189 specifications ↓ Show less ↑182 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product license, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, System modification during operation, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / marine classification, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5334-3TS01-2AR3 |
|---|---|
| Type designation | XRM334 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622910108 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 10
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for operator console | USB (2.0 type B, USB-to-serial adapter) |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 2 x 2-pole terminal block |
| design of the removable storage: CLP | Yes |
| operating voltage / of the signaling contacts: at AC / rated value | 24 V |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 19
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage supply / redundant power supply unit | No |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 72 W |
| power loss [W] / at DC / at 24 V / typical | 43.2 W |
| supply voltage / 1 / voltage range | 19.2 ... 31.2 |
| consumed current / 1 / maximum | 3 A |
| consumed current / at DC / at 24 V / typical | 1.8 A |
| type of electrical connection / 1 / for power supply | 2 x 2-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | F 10 A / 250 V |
| type of voltage / 2 / of the supply voltage | AC (50 / 60 Hz) |
| supply voltage / 2 / rated value | 24 V |
| power loss [W] / 2 / rated value | 72 W |
| supply voltage / 2 / voltage range | 19.2 ... 30 |
| consumed current / 2 / maximum | 3 A |
| type of electrical connection / 2 / for power supply | 2 x 2-pole terminal block |
| fuse protection type / 2 / at input for supply voltage | F 10 A / 250 V |
Ambient conditions 6
| ambient temperature / in horizontal mounting position / during | -40 ... +70 °C; Starting at -40 °C; The maximum ambient temperature during |
|---|---|
| operation | operation depends on the operating height and the plug-in transceivers, see also manual. |
| installation altitude / at height above sea level / maximum | 4000 m |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| operating condition / fanless operation | Yes |
| protection class IP | IP20 |
Design, dimensions and weights 7
| design | 19-inch rack |
|---|---|
| number of modular height units / relating to 19-inch cabinet | 1 |
| width | 446 mm |
| height | 43.6 mm |
| depth | 374.8 mm |
| material / of the enclosure | metal |
| fastening method: 19-inch installation | Yes |
Product features, product functions, product components / general 6
| cascading in cases of star topology | any (depending only on signal propagation time) |
|---|---|
| number of automatically learnable MAC addresses | 16382 |
| number of QoS queues / per port | 8 |
| product function: QoS according to IEEE 802.1Q | Yes |
| product conformity / according to IEEE 802.1Qbu and IEEE 802.3br (Frame Preemption) | Yes |
| product feature: Store & Forward switching method | Yes |
Product license 1
| product license / Upgrade license | Yes; layer 3 license |
|---|
Product functions / management, configuration, engineering 34
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | No |
| product function: SMTP server | No |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: Encapsulated Remote Traffic Mirroring (ERTM) | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | II |
| telegram length / for Ethernet / maximum | 9194 byte |
| protocol / is supported: Telnet | No |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | No |
| protocol / is supported: NETCONF | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 7
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| product function: VLAN dynamic | Yes |
| number of VLANs / maximum | 2048 |
| number of VLANs - dynamic / maximum | 2048 |
| product function / VXLAN according to RFC 7348 | No |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 12
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | No |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | No |
| product function: high speed redundancy protocol (HRP) with standby redundancy | No |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: passive listening | Yes |
| product function: eRSTP | Yes |
| protocol / is supported: LACP | Yes |
System modification during operation 1
| product function / configuration in RUN via CiR/H-CiR | No |
|---|
Product functions / security 5
| product conformity / according to IEEE 802.1X-port based Network Access Control | No |
|---|---|
| product function: security / MACsec (IEEE 802.1AE) | No |
| protocol / is supported: RADIUS | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 9
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: IEEE 1588 v2 transparent forwarding | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
| protocol / is supported: IEEE 1588 profile default | Yes |
| accuracy / at IEEE 1588 v2: not less than | 100 ns |
| accuracy / at IEEE 1588 v2: typical | 50 ns |
| product function / WorkingClock Synchronization / PROFINET / according to IEEE 802.1AS-2020 | Yes |
Standards, specifications, approvals 9
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| product conformity / according to EMC-guideline | 2014/30/EU |
| standard: for EMC interference emission | EN 61000-6-4 |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 62368-1, UL 61010 - 2 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 3
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / marine classification 10
| certificate of suitability / shipbuilding approval / note | Certifications marked 'No' are currently under renewal. |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Chinese Classification Society (CCS) | No |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Korean Register of Shipping (KRS) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
| Marine classification association: Nippon Kaiji Kyokai (NK) | Yes |
| Marine classification association: Polski Rejestr Statkow (PRS) | No |
| Marine classification association: Royal Institution of Naval Architects (RINA) | No |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 2101.59 kg |
| global warming potential [CO2 eq]: during manufacturing | 132 kg |
| global warming potential [CO2 eq]: during operation | 1969 kg |
| global warming potential [CO2 eq]: after end of life | 0.59 kg |
Product functions / general 4
| MTBF | 13.2 a |
|---|---|
| reference temperature / for MTBF determination | 40 °C |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 2
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 132 kg |
|---|---|
| Environment General Product Approval | TUEV |
Logistics 6
| Net weight | 3 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 3.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5334-3TS01-2AR3
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
Quick answers
Questions about the XRM334
What is the rated current of XRM334?
The rated current of XRM334 is 3 A.
Which supply voltage is XRM334 rated for?
The rated operational voltage of XRM334 is 24 V AC.
What is the HS code of XRM334 for customs?
The tariff (HS) code on file for XRM334 is 85176200.
What is the EAN of XRM334?
The EAN (GTIN) of XRM334 is 4047622910108.
Where does XRM334 ship from, and how fast?
XRM334 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Siemens SCALANCE XR
- Brand
- Siemens
- Series
- SCALANCE XR
