Siemens 6GK5334-2TS00-3AR3 SCALANCE XR326-8 230V AC 19-Inch Managed PROFINET Switch

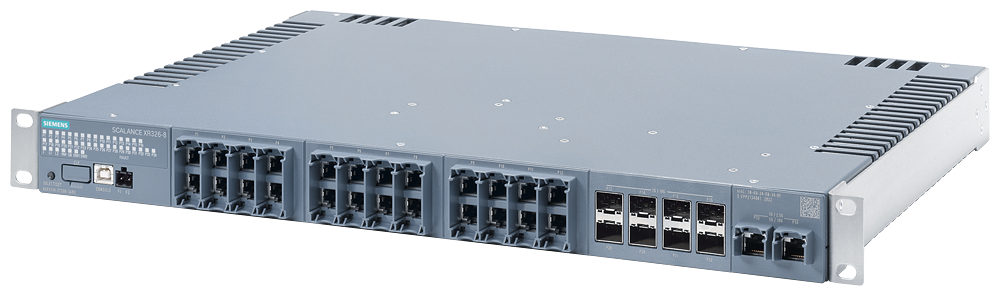

The Siemens SCALANCE XR326-8 (6GK5334-2TS00-3AR3) is a 19-inch rack-mount managed Layer 2 Ethernet switch with 26 RJ45 ports up to 10 Gbit/s and 8 SFP+ ports, built as a PROFINET IO device with an integrated redundancy manager. It runs on a 110-240 V AC supply (85-264 V range) through an IEC C14 inlet, and operates fanless from -25 to +60 degrees C at altitudes up to 3000 m.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• KC
• RCM
• RoHS
• EPD

Selection Notes

This 230 V AC variant swaps the DC terminal-block input of the 24V DC XR326-8 for an IEC C14 mains inlet, rated 110-240 V AC (85-264 V range) at 0.8 A, useful when a 24 V DC bus is not run to the cabinet and the switch can connect straight to line power. The tighter -25 to +60 degrees C operating range (versus -40 to +70 on the DC model) and single power input reflect the mains-only design; select the 2x230V AC redundant variant instead if the installation needs a backup feed.
