- Part number
- 6GK5332-0GA01-2AC2
- Model no
- XCM332

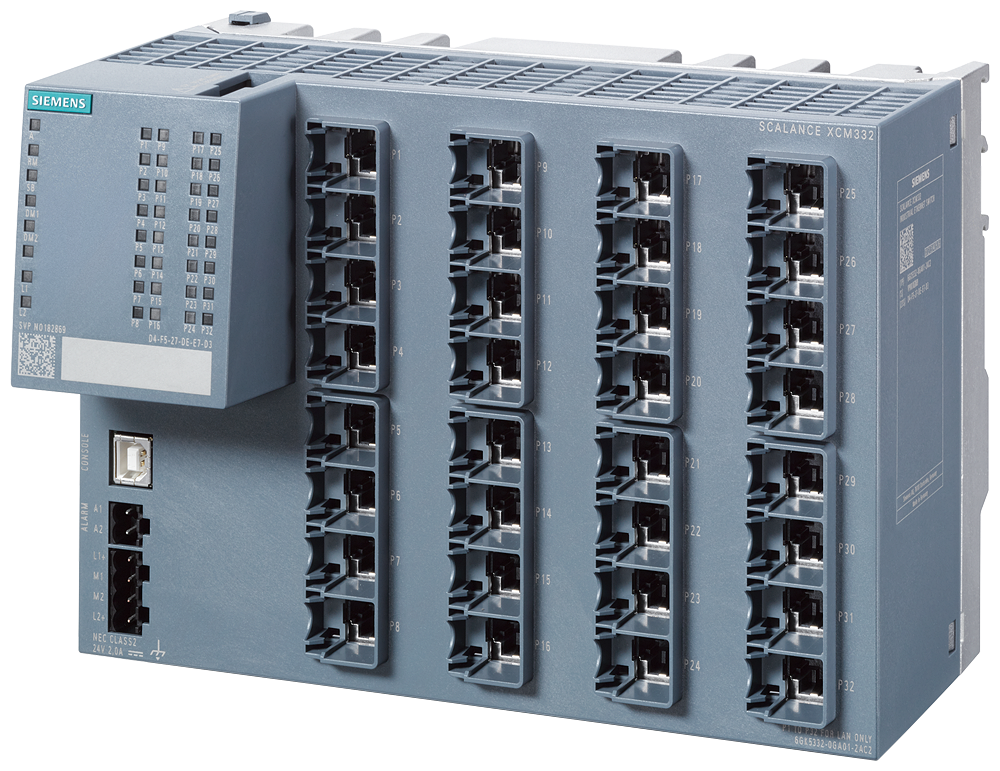

SCALANCE XCSiemens 6GK5332-0GA01-2AC2 SCALANCE XCM332 32-Port 10/100/1000 Managed PROFINET Switch
The Siemens SCALANCE XCM332 (6GK5332-0GA01-2AC2) is a managed Layer 2 industrial Ethernet switch with 32 RJ45 ports for 10/100/1000 Mbit/s, a PROFI...
Description
About the XCM332
About the XCM332
The Siemens SCALANCE XCM332 (6GK5332-0GA01-2AC2) is a managed Layer 2 industrial Ethernet switch with 32 RJ45 ports for 10/100/1000 Mbit/s, a PROFINET IO device interface, and an included Layer 3 upgrade license. It runs on a 24 V DC supply with a dual terminal-block input for redundant power, operates fanless from -40 to +60 degrees C, and mounts on a DIN rail, S7-300, or S7-1500 rail.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- ULhazloc
- CCC
Selection Notes
The included Layer 3 upgrade license is the deciding difference from the XC332: it enables inter-VLAN routing on the same 32-port hardware without a separate license purchase. Network load class II (versus class III on the XC332) means it targets segments with moderate rather than maximum cyclic PROFINET load. IEEE 1588 v2 transparent forwarding is available for time-synchronized applications the plain XC332 does not list.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XCM332 |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 2
| number of electrical connections: for network components or terminal equipment | 32; RJ45 |
|---|---|
| number of 10/100/1000 Mbit/s RJ45 ports: with securing collar | 32 |
Show all 168 specifications ↓ Show less ↑163 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product license, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5332-0GA01-2AC2 |
|---|---|
| Type designation | XCM332 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622856253 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 11
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for operator console | USB (2.0 type B, USB-to-serial adapter) |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 2 x 2-pole terminal block |
| number of extender expansion interfaces | 1 |
| design of the removable storage: CLP | Yes |
| product function / device replacement with replacement of the storage medium | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 11
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 43.2 W |
| power loss [W] / at DC / at 24 V / typical | 25.92 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 1.8 A |
| consumed current / at DC / at 24 V / typical | 1.08 A |
| type of electrical connection / 1 / for power supply | 2 x 2-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | F 10 A / 250 V |
Ambient conditions 8
| ambient temperature: during operation | -40 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature / in horizontal mounting position / during | -40 ... +60 °C; Starting at -40 °C; The maximum ambient temperature during |
| operation | operation depends on the operating height and the plug-in transceivers, see also manual. |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| operating condition / fanless operation | Yes |
| protection class IP | IP20 |
Design, dimensions and weights 10
| design | compact |
|---|---|
| width | 210 mm |
| height | 147 mm |
| depth | 125 mm |
| fastening method | 35 mm DIN rail according to EN 60715, S7-300 / S7-1500 mounting rail, wall mounting |
| 19-inch installation | No |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
| S7-300 rail mounting | Yes |
| S7-1500 rail mounting | Yes |
Product features, product functions, product components / general 3
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
| product conformity / according to IEEE 802.1Qbu and IEEE 802.3br (Frame Preemption) | Yes |
Product license 1
| product license / Upgrade license | Yes; layer 3 license |
|---|
Product functions / management, configuration, engineering 33
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | No |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: Encapsulated Remote Traffic Mirroring (ERTM) | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | II |
| telegram length / for Ethernet / maximum | 9194 byte |
| protocol / is supported: Telnet | No |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | No |
| protocol / is supported: NETCONF | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 7
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| product function: VLAN dynamic | Yes |
| number of VLANs / maximum | 2048 |
| number of VLANs - dynamic / maximum | 2048 |
| product function / VXLAN according to RFC 7348 | No |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 12
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | No |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | No |
| product function: high speed redundancy protocol (HRP) with standby redundancy | No |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: passive listening | Yes |
| product function: eRSTP | Yes |
| protocol / is supported: LACP | Yes |
Product functions / security 3
| product function: security / MACsec (IEEE 802.1AE) | No |
|---|---|
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 8
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: IEEE 1588 v2 transparent forwarding | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: IEEE 1588 profile default | Yes |
| accuracy / at IEEE 1588 v2: not less than | 100 ns |
| accuracy / at IEEE 1588 v2: typical | 50 ns |
| product function / WorkingClock Synchronization / PROFINET / according to IEEE 802.1AS-2020 | Yes |
Standards, specifications, approvals 9
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| product conformity / according to EMC-guideline | 2014/30/EU |
| standard: for EMC interference emission | EN 61000-6-4 |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL-61010-2 E85972 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 4
| certificate of suitability: railway application in accordance with EN 50121-4 | Yes; use only in areas not accessible to the public |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 1244.435 kg |
| global warming potential [CO2 eq]: during manufacturing | 123 kg |
| global warming potential [CO2 eq]: during operation | 1120 kg |
| global warming potential [CO2 eq]: after end of life | 0.908 kg |
Product functions / general 3
| MTBF | 11.6 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 2
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 123 kg |
|---|---|
| Environment General Product Approval | TUEV |
Logistics 7
| Net weight | 0.799 kg |
|---|---|
| Package dimensions | 205 × 205 × 245 mm |
| Country of origin | DE |
| Shipping weight | 1.299 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5332-0GA01-2AC2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
Quick answers
Questions about the XCM332
What is the rated current of XCM332?
The rated current of XCM332 is 1.8 A.
Which supply voltage is XCM332 rated for?
The rated operational voltage of XCM332 is 24 V AC.
What is the HS code of XCM332 for customs?
The tariff (HS) code on file for XCM332 is 85176200.
What is the EAN of XCM332?
The EAN (GTIN) of XCM332 is 4047622856253.
Where does XCM332 ship from, and how fast?
XCM332 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
