- Part number
- 6GK5328-4FS00-3AR3
- Model no
- XR328-4C WG

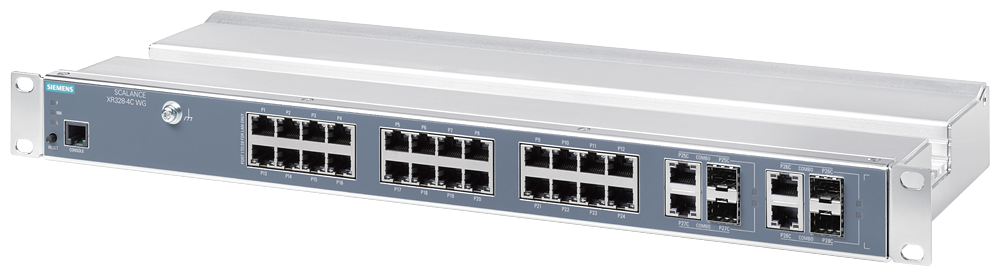

SCALANCE XR328Siemens 6GK5328-4FS00-3AR3 SCALANCE XR328-4C WG 24xFE 4xGE 100-240V AC Industrial Ethernet Switch
SCALANCE XR328-4C WG managed switch, 24x FE + 4x GE combo, 100-240V AC, IP30, 19-inch rack, cULus
Description
About the XR328-4C WG
About the XR328-4C WG
The Siemens SCALANCE XR328-4C WG (6GK5328-4FS00-3AR3) is a managed Layer 2 industrial Ethernet switch for 19-inch cabinet mounting, combining 24 electrical 10/100 Mbit/s RJ45 ports with 4 combo ports that run at 1000 Mbit/s electrical or optical. It runs from a 100-240 V AC supply, 85-264 V range, and supports PROFINET IO diagnostics, MRP and HRP ring redundancy, plus IEC 62443-4-2 cybersecurity certification.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- RoHS
- EPD
Selection Notes
The 3AR3 variant runs from 100-240 V AC, 85-264 V range, instead of 24 V DC, and it carries cULus approval like its DC-powered hazardous-location sibling but without ATEX/UKEX/IECEx/CCC-Ex hazardous-area listing, so it fits a standard AC-distribution cabinet outside classified zones. Its 46 W power loss and 0.15 A draw are higher than the DC-fed variants because of the internal AC/DC conversion stage, and the IEC C14 power inlet plus 177 mm depth, 33 mm deeper than the DC models, needs to be accounted for in the rack layout. Choose the AC-powered sibling without cULus if North American listing isn't required, or a 24 V DC variant if the cabinet already runs DC control power.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XR328-4C WG |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 4
| number of electrical connections: for network components or terminal equipment | 28; RJ45 |
|---|---|
| number of 10/100 Mbit/s RJ45 ports | 24 |
| number of combo ports / with RJ45 interface for optical plug-in | 4; 1000 Mbit/s SFP plug-in transceiver or 100 Mbit/s via SCALANCE SFP991-1 |
| transceiver | (LD) A |
Show all 147 specifications ↓ Show less ↑140 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5328-4FS00-3AR3 |
|---|---|
| Type designation | XR328-4C WG |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622504680 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 3
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for power supply | IEC plug C14 |
Supply voltage, current consumption, power loss 10
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage supply / redundant power supply unit | No |
| type of voltage / 1 / of the supply voltage | AC |
| supply voltage / 1 / rated value | 240 V; 100 V ... 240 V AC |
| power loss [W] / 1 / rated value | 46 W |
| supply voltage / 1 / voltage range | 85 ... 264 |
| consumed current / 1 / maximum | 0.15 A |
| type of electrical connection / 1 / for power supply | IEC plug C14 |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | F 4 A / 250 V |
Ambient conditions 5
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP30 |
Design, dimensions and weights 11
| design | 19-inch rack |
|---|---|
| number of modular height units / relating to 19-inch cabinet | 1 |
| width | 483 mm |
| height | 44 mm |
| depth | 177 mm |
| material / of the enclosure | metal |
| fastening method: 19-inch installation | Yes |
| fastening method: 35 mm DIN-rail mounting | No |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | No |
| fastening method: S7-1500 rail mounting | No |
Product features, product functions, product components / general 2
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
Product functions / management, configuration, engineering 28
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: port mirroring | Yes |
| product function: multiport mirroring | No |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | II |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | No |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 7
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| product function: VLAN dynamic | Yes |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 17
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | No |
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function: passive listening | Yes |
| protocol / is supported: STP/RSTP | Yes |
| protocol / is supported: STP | Yes |
| protocol / is supported: RSTP | Yes |
| protocol / is supported: MSTP | No |
| protocol / is supported: RSTP big network support | Yes |
| protocol / is supported: LACP | No |
Product functions / security 4
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
Product functions / time 4
| product function: SICLOCK support | Yes |
|---|---|
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
| protocol / is supported: IEEE 1588 profile default | No |
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class B) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
Standards, specifications, approvals / other 4
| certificate of suitability: railway application in accordance with EN 50155 | No |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 520.66 kg |
| global warming potential [CO2 eq]: during manufacturing | 109.07 kg |
| global warming potential [CO2 eq]: during operation | 411.04 kg |
| global warming potential [CO2 eq]: after end of life | 0.55 kg |
Product functions / general 3
| MTBF | 39 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 2
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 109.07 kg |
|---|---|
| Environment General Product Approval | Declaration of Con- formity |
Logistics 7
| Net weight | 3 kg |
|---|---|
| Package dimensions | 125 × 210 × 147 mm |
| Country of origin | DE |
| Shipping weight | 3.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5328-4FS00-3AR3
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- RoHS conformity
- Environmental Product Declaration
Quick answers
Questions about the XR328-4C WG
Which supply voltage is XR328-4C WG rated for?
The rated operational voltage of XR328-4C WG is 100–240 V AC.
What is the HS code of XR328-4C WG for customs?
The tariff (HS) code on file for XR328-4C WG is 85176200.
What is the EAN of XR328-4C WG?
The EAN (GTIN) of XR328-4C WG is 4047622504680.
Where does XR328-4C WG ship from, and how fast?
XR328-4C WG ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
