- Part number
- 6GK5328-4FS00-2AR3
- Model no
- XR328-4C WG
- ATEX

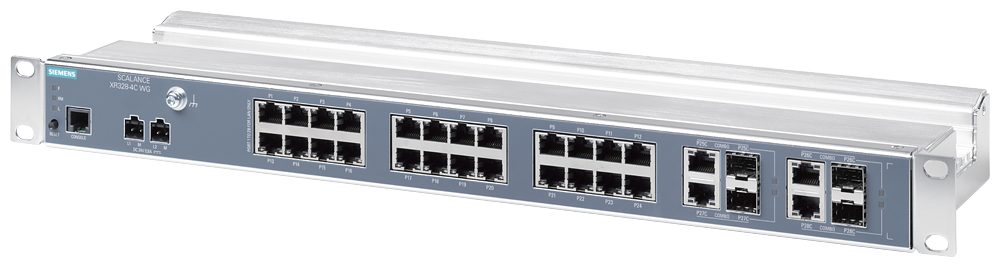

SCALANCE XR328Siemens 6GK5328-4FS00-2AR3 SCALANCE XR328-4C WG 24xFE 4xGE 24V DC Industrial Ethernet Switch
SCALANCE XR328-4C WG managed switch, 24x FE + 4x GE combo, 24V DC, IP30, 19-inch rack, hazardous-location approved
Description
About the XR328-4C WG
About the XR328-4C WG
The Siemens SCALANCE XR328-4C WG (6GK5328-4FS00-2AR3) is a managed Layer 2 industrial Ethernet switch for 19-inch cabinet mounting, combining 24 electrical 10/100 Mbit/s RJ45 ports with 4 combo ports that run at 1000 Mbit/s electrical or optical. It runs from a 24 V DC supply, 19.2-28.8 V range, and supports PROFINET IO diagnostics, MRP and HRP ring redundancy, plus IEC 62443-4-2 cybersecurity certification.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- ULhazloc
- CCC-Ex
Selection Notes
The 2AR3 variant adds cULus, ATEX/UKEX/IECEx and CCC hazardous-location approval on top of the base 24 V DC electrical design, which matters when the switch sits in a classified Zone 2/22 or Division 2 cabinet; for a standard control-room installation, the electrically identical DC variant without hazardous-location certification covers the same 24-port Fast Ethernet plus 4-port Gigabit combo layout at lower cost. Choose this switch over the 240 V AC-powered siblings when the panel already distributes 24 V DC control power, since it skips a separate power conversion step and its 12 W power loss is far lower than the AC-fed models draw. If the application needs switched Gigabit on all downstream ports rather than Fast Ethernet, the all-Gigabit sibling in the same enclosure is the better fit.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XR328-4C WG |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 4
| number of electrical connections: for network components or terminal equipment | 28; RJ45 |
|---|---|
| number of 10/100 Mbit/s RJ45 ports | 24 |
| number of combo ports / with RJ45 interface for optical plug-in | 4; 1000 Mbit/s SFP plug-in transceiver or 100 Mbit/s via SCALANCE SFP991-1 |
| transceiver | (LD) A |
Show all 151 specifications ↓ Show less ↑144 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5328-4FS00-2AR3 |
|---|---|
| Type designation | XR328-4C WG |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622504673 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 3
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for power supply | 2 x 2-pole terminal block |
Supply voltage, current consumption, power loss 9
| type of voltage supply / redundant power supply unit | No |
|---|---|
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 12 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 0.5 A |
| type of electrical connection / 1 / for power supply | 2 x 2-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | F 5 A / 60 V |
Ambient conditions 5
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP30 |
Design, dimensions and weights 11
| design | 19-inch rack |
|---|---|
| number of modular height units / relating to 19-inch cabinet | 1 |
| width | 483 mm |
| height | 44 mm |
| depth | 127 mm |
| material / of the enclosure | metal |
| fastening method: 19-inch installation | Yes |
| fastening method: 35 mm DIN-rail mounting | No |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | No |
| fastening method: S7-1500 rail mounting | No |
Product features, product functions, product components / general 2
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
Product functions / management, configuration, engineering 28
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: port mirroring | Yes |
| product function: multiport mirroring | No |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | II |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | No |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 7
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| product function: VLAN dynamic | Yes |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 17
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | No |
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function: passive listening | Yes |
| protocol / is supported: STP/RSTP | Yes |
| protocol / is supported: STP | Yes |
| protocol / is supported: RSTP | Yes |
| protocol / is supported: MSTP | No |
| protocol / is supported: RSTP big network support | Yes |
| protocol / is supported: LACP | No |
Product functions / security 4
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
Product functions / time 4
| product function: SICLOCK support | Yes |
|---|---|
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
| protocol / is supported: IEEE 1588 profile default | No |
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class B) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1, UL 61010-2-201 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 4
| certificate of suitability: railway application in accordance with EN 50155 | No |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 438.45 kg |
| global warming potential [CO2 eq]: during manufacturing | 109.07 kg |
| global warming potential [CO2 eq]: during operation | 328.83 kg |
| global warming potential [CO2 eq]: after end of life | 0.55 kg |
Product functions / general 3
| MTBF | 43 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 109.07 kg |
|---|
Logistics 7
| Net weight | 3 kg |
|---|---|
| Package dimensions | 125 × 210 × 147 mm |
| Country of origin | DE |
| Shipping weight | 3.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5328-4FS00-2AR3
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- ATEX
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
Quick answers
Questions about the XR328-4C WG
What is the HS code of XR328-4C WG for customs?
The tariff (HS) code on file for XR328-4C WG is 85176200.
What is the EAN of XR328-4C WG?
The EAN (GTIN) of XR328-4C WG is 4047622504673.
Where does XR328-4C WG ship from, and how fast?
XR328-4C WG ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
