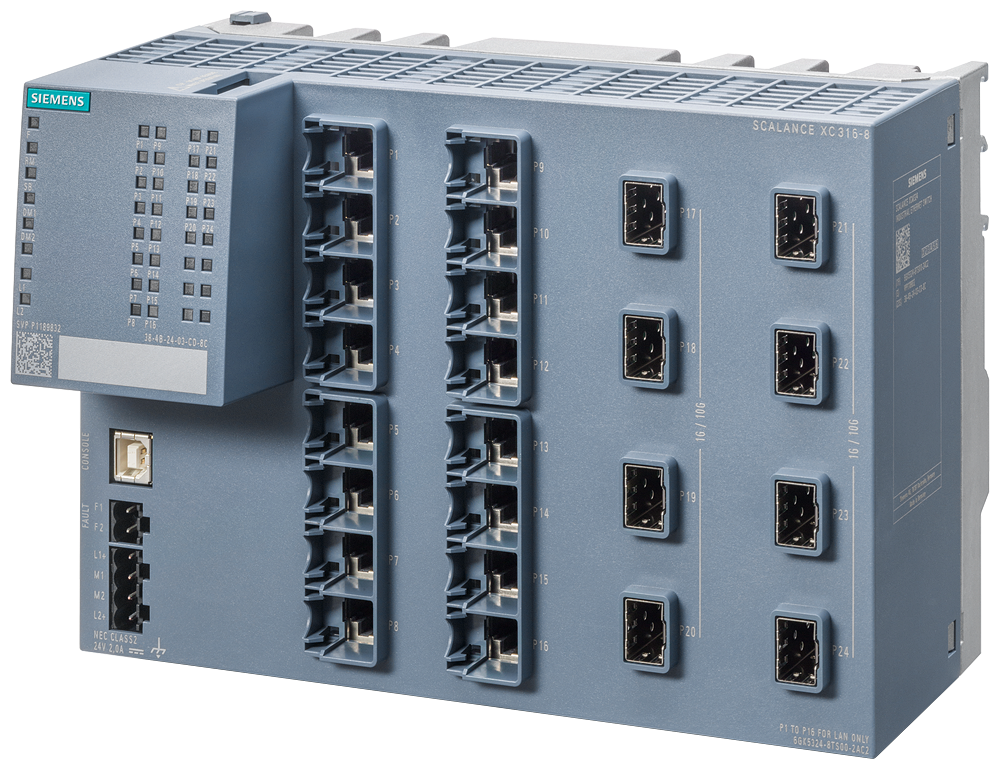

SCALANCE XC316Siemens 6GK5324-8TS00-2AC2 SCALANCE XC316-8 16x RJ45 8x SFP+ 10G Managed Switch
SCALANCE XC316-8 managed switch, 16x RJ45 gigabit + 8x SFP+ 1/10G, DIN rail, 24V DC.
Description
About the XC316-8
About the XC316-8
The Siemens 6GK5324-8TS00-2AC2 SCALANCE XC316-8 is a managed Layer 2 Industrial Ethernet switch in a compact, fanless DIN-rail housing, with 16 electrical 10/100/1000 Mbit/s RJ45 ports and 8 SFP+ slots supporting 1 or 10 Gbit/s modules. It runs from a 24 V DC supply, supports MRP ring redundancy with PRP/HSR network access redundancy, and meets PROFINET conformity class B.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- ULhazloc
- CCC-Ex
Selection Notes
This is the fixed Layer 2 model in the 16x RJ45 + 8x SFP+ compact-housing family; a Layer-3-upgradeable sibling with NETCONF automation exists for sites that need routing or infrastructure-as-code from the same physical unit. Choose this XC316-8 where VXLAN tunneling (RFC 7348), PRP/HSR redundancy, and DHCP server functions cover the requirement, since the Layer 3 upgrade license adds cost this model doesn't carry. The 8 SFP+ slots take either 1 Gbit/s or 10 Gbit/s modules, so uplink speed is set by transceiver choice rather than switch variant.
Applications
DIN-rail aggregation switch for machine networks needing a mix of gigabit copper and 1/10G fiber uplinks, MRP or PRP/HSR redundancy, and configuration-in-RUN (CiR) changes without a network outage.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XC316-8 |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 3
| number of electrical connections: for network components or terminal equipment | 16; RJ45 |
|---|---|
| number of 10/100/1000 Mbit/s RJ45 ports: with securing collar | 16 |
| number of electrical connections: for SFP+ | 8; 1000 Mbps and 10000 Mbps SFP usable |
Show all 185 specifications ↓ Show less ↑179 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, System modification during operation, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5324-8TS00-2AC2 |
|---|---|
| Type designation | XC316-8 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622954775 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 10
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for operator console | USB (2.0 type B, USB-to-serial adapter) |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 2 x 2-pole terminal block |
| design of the removable storage: CLP | Yes |
| product function / device replacement with replacement of the storage medium | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 11
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 43.2 W |
| power loss [W] / at DC / at 24 V / typical | 25.92 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 1.8 A |
| consumed current / at DC / at 24 V / typical | 1.08 A |
| type of electrical connection / 1 / for power supply | 2 x 2-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | F 10 A / 250 V |
Ambient conditions 8
| ambient temperature: during operation | -40 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature / in horizontal mounting position / during | -40 ... +60 °C; Starting at -40 °C; The maximum ambient temperature during |
| operation | operation depends on the operating height and the plug-in transceivers, see also manual. |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| operating condition / fanless operation | Yes |
| protection class IP | IP20 |
Design, dimensions and weights 10
| design | compact |
|---|---|
| width | 210 mm |
| height | 147 mm |
| depth | 125 mm |
| fastening method | 35 mm DIN rail according to EN 60715, S7-300 / S7-1500 mounting rail, wall mounting |
| 19-inch installation | No |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
| S7-300 rail mounting | Yes |
| S7-1500 rail mounting | Yes |
Product features, product functions, product components / general 6
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
| number of automatically learnable MAC addresses | 16382 |
| number of QoS queues / per port | 8 |
| product function: QoS according to IEEE 802.1Q | Yes |
| product feature: Store & Forward switching method | Yes |
Product functions / management, configuration, engineering 32
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 9194 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | No |
| protocol / is supported: NETCONF | No |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 8
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| product function: VLAN dynamic | Yes |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
| product function / VXLAN according to RFC 7348 | Yes |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 22
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: of the PROFINET IO device / is supported / H-Sync forwarding | Yes |
| product function: of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: High-availability Seamless Redundancy (HSR) | Yes |
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | Yes |
| product function: passive listening | Yes |
| product function: eRSTP | Yes |
| protocol / is supported: STP/RSTP | Yes |
| protocol / is supported: STP | Yes |
| protocol / is supported: RSTP | Yes |
| protocol / is supported: MSTP | Yes |
| protocol / is supported: RSTP big network support | Yes |
| protocol / is supported: LACP | Yes |
System modification during operation 1
| product function / configuration in RUN via CiR/H-CiR | Yes |
|---|
Product functions / security 6
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: security / MACsec (IEEE 802.1AE) | No |
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 10
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: SNTP client | Yes |
| product function: IEEE 1588 v2 transparent forwarding | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
| protocol / is supported: IEEE 1588 profile default | No |
| accuracy / at IEEE 1588 v2: not less than | 100 ns |
| accuracy / at IEEE 1588 v2: typical | 50 ns |
| product function / WorkingClock Synchronization / PROFINET / according to IEEE 802.1AS-2020 | No |
Standards, specifications, approvals 9
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| product conformity / according to EMC-guideline | 2014/30/EU |
| standard: for EMC interference emission | EN 61000-6-4 |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL-61010-2 E85972 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 4
| certificate of suitability: railway application in accordance with EN 50121-4 | Yes; use only in areas not accessible to the public |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 1244.3 kg |
| global warming potential [CO2 eq]: during manufacturing | 122.74 kg |
| global warming potential [CO2 eq]: during operation | 1120.64 kg |
| global warming potential [CO2 eq]: after end of life | 0.91 kg |
Product functions / general 3
| MTBF | 13.4 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 122.74 kg |
|---|
Logistics 7
| Net weight | 0.52 kg |
|---|---|
| Package dimensions | 205 × 205 × 245 mm |
| Country of origin | DE |
| Shipping weight | 1.02 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5324-8TS00-2AC2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
Quick answers
Questions about the XC316-8
What is the rated current of XC316-8?
The rated current of XC316-8 is 1.8 A.
Which supply voltage is XC316-8 rated for?
The rated operational voltage of XC316-8 is 24 V AC.
What is the HS code of XC316-8 for customs?
The tariff (HS) code on file for XC316-8 is 85176200.
What is the EAN of XC316-8?
The EAN (GTIN) of XC316-8 is 4047622954775.
Where does XC316-8 ship from, and how fast?
XC316-8 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Siemens SCALANCE XC316
- Brand
- Siemens
- Series
- SCALANCE XC316
