- Part number
- 6GK5324-4QG10-3AR2
- Model no
- XR324-4M PoE
Siemens has announced the end of 6GK5324-4QG10-3AR2
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

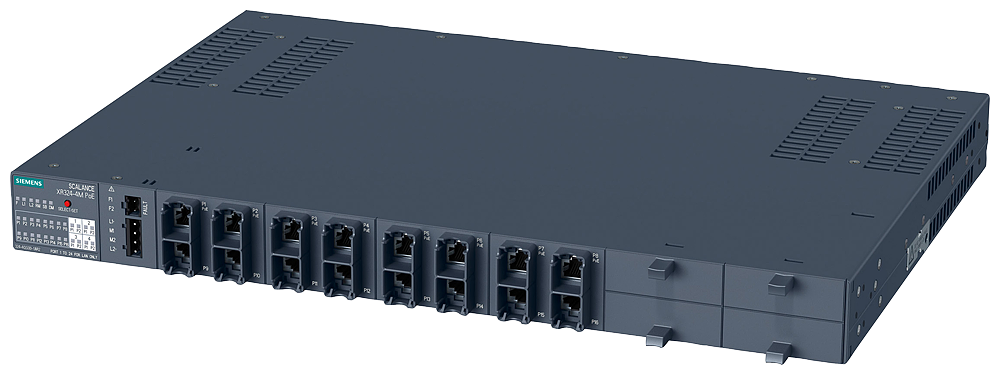

SCALANCE XR324Siemens 6GK5324-4QG10-3AR2 SCALANCE XR324-4M PoE AC230V Front-Port Managed Switch
SCALANCE XR324-4M PoE managed switch, 16x RJ45 (8 PoE) + 4 media slots, 230V AC, front ports.
Description
About the XR324-4M PoE
About the XR324-4M PoE
The Siemens 6GK5324-4QG10-3AR2 SCALANCE XR324-4M PoE is a managed Layer 2 Industrial Ethernet switch for 19-inch rack mounting, with 16 electrical 10/100/1000 Mbit/s RJ45 ports (8 of them PoE-capable) plus four slots for 2-port media modules, all accessed from the front. It runs from a 230 V AC (85 ... 264 V) supply and supports MRP/HRP ring redundancy with a redundancy manager, meeting PROFINET conformity class B.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- RoHS
- RINA
- EPD
Selection Notes
The 230 V AC (85 ... 264 V) supply removes the need for a separate 24 V DC feed to the rack, drawing a maximum of 1 A at rated voltage and carrying a wider -40 ... +70 °C ambient rating than the DC-supplied sibling's -40 ... +60 °C. This front-port, AC-supplied build also lists cULus and RINA marine classification, which the DC-supplied siblings in this family do not carry. Choose the DC-supplied siblings instead where the cabinet already runs a 24 V bus.
Applications
Machine or process-cell aggregation switch feeding PoE-powered cameras or WLAN access points alongside conventional Gigabit Ethernet devices, in mains-fed cabinets including marine and offshore installations covered by the RINA classification.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XR324-4M PoE |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 4
| number of electrical connections: for network components or terminal equipment | 16; RJ45 |
|---|---|
| number of electrical connections: for Power-over-Ethernet / for network components or terminal equipment | 8 |
| number of 100 Mbit/s ST(BFOC) ports: for multimode | 8 |
| number of 100 Mbit/s SC ports: for multimode | 8 |
Show all 140 specifications ↓ Show less ↑133 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals / other, Standards, specifications, approvals / marine classification, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 8
| Part number | 6GK5324-4QG10-3AR2 |
|---|---|
| Type designation | XR324-4M PoE |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622468531 |
Interfaces / other 10
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for media module | 4 |
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for operator console | RJ11 |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 2-pole terminal block |
| design of the removable storage: C-PLUG | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 8
| type of voltage supply / redundant power supply unit | No |
|---|---|
| type of voltage / 1 / of the supply voltage | AC |
| supply voltage / 1 / rated value | 230 V |
| power loss [W] / 1 / rated value | 46 W |
| supply voltage / 1 / voltage range | 85 ... 264 |
| consumed current / 1 / maximum | 1 A |
| type of electrical connection / 1 / for power supply | 2-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: note | With vertical installation, the maximum operating temperature is reduced to 60 °C. |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 11
| design | 19-inch rack |
|---|---|
| number of modular height units / relating to 19-inch cabinet | 1 |
| width | 449 mm |
| height | 43.6 mm |
| depth | 305 mm |
| fastening method | When used in shipbuilding, the device must be secured in the 19" rack at four points |
| 19-inch installation | Yes |
| 35 mm DIN-rail mounting | No |
| wall mounting | No |
| S7-300 rail mounting | No |
| S7-1500 rail mounting | No |
Product features, product functions, product components / general 2
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 100 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
Product functions / management, configuration, engineering 27
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 6
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| product function: VLAN dynamic | Yes |
| number of VLANs / maximum | 255 |
| number of VLANs - dynamic / maximum | 255 |
Product functions / DHCP 4
| product function: DHCP client | Yes |
|---|---|
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 15
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: passive listening | Yes |
| protocol / is supported: STP/RSTP | Yes |
| protocol / is supported: STP | Yes |
| protocol / is supported: RSTP | Yes |
| protocol / is supported: MSTP | Yes |
| protocol / is supported: RSTP big network support | Yes |
| protocol / is supported: LACP | Yes |
Product functions / security 4
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
Product functions / time 8
| product function: SICLOCK support | Yes |
|---|---|
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
| protocol / is supported: IEEE 1588 profile default | Yes |
| standards, specifications, approvals certificate of suitability: CE marking | Yes |
| standard: for EMC interference emission | EN 61000-6-4:2007 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2:2006 |
| standard: for safety / from CSA and UL | UL 508, CSA C22.2 No. 142-M1987 |
Standards, specifications, approvals / other 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / marine classification 3
| certificate of suitability / shipbuilding approval / note | Certifications marked 'No' are currently under renewal. |
|---|---|
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 601.38 kg |
| global warming potential [CO2 eq]: during manufacturing | 207 kg |
| global warming potential [CO2 eq]: during operation | 393.45 kg |
| global warming potential [CO2 eq]: after end of life | 0.93 kg |
Product functions / general 1
| warranty period | 5 a |
|---|
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 207 kg |
|---|
Logistics 7
| Net weight | 6.9 kg |
|---|---|
| Package dimensions | 177 × 483 × 44 mm |
| Country of origin | DE |
| Shipping weight | 7.9 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5324-4QG10-3AR2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- RoHS conformity
- Royal Institution of Naval Architects (RINA)
- Environmental Product Declaration
Quick answers
Questions about the XR324-4M PoE
What is the rated current of XR324-4M PoE?
The rated current of XR324-4M PoE is 1 A.
Which supply voltage is XR324-4M PoE rated for?
The rated operational voltage of XR324-4M PoE is 230 V AC.
What is the HS code of XR324-4M PoE for customs?
The tariff (HS) code on file for XR324-4M PoE is 85176200.
What is the EAN of XR324-4M PoE?
The EAN (GTIN) of XR324-4M PoE is 4047622468531.
Where does XR324-4M PoE ship from, and how fast?
XR324-4M PoE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
