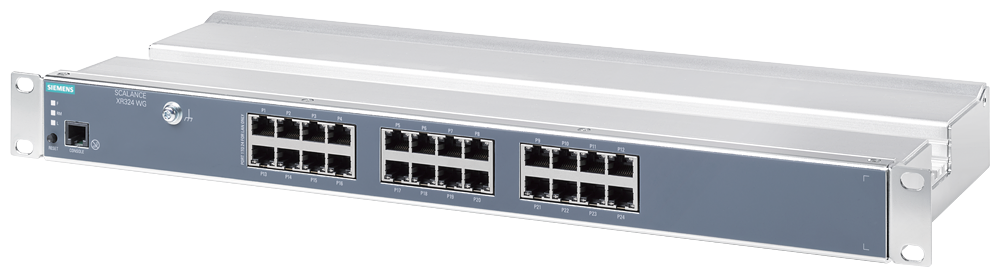

SCALANCE XR324Siemens 6GK5324-0BA00-3AR3 SCALANCE XR324WG 24x RJ45 AC230V 19-Inch Managed Switch
SCALANCE XR324WG managed 19-inch switch, 24x 10/100 RJ45, 230V AC supply, MRP ring.
Description
About the XR324 WG
About the XR324 WG
The Siemens 6GK5324-0BA00-3AR3 SCALANCE XR324WG is a managed Layer 2 Industrial Ethernet switch for 19-inch rack mounting, with 24 electrical 10/100 Mbit/s RJ45 ports and a 230 V AC (85 ... 264 V) power input via IEC C14 inlet. It supports MRP/HRP ring redundancy with a redundancy manager and meets PROFINET conformity class B and network load class II.
Certifications & Standards
- CE
- UKCA
- KC
- RCM
- RoHS
- EPD
Selection Notes
This 230 V AC (85 ... 264 V) supply variant fits 19-inch cabinets that only distribute mains power, drawing a maximum 0.09 A through an IEC C14 inlet instead of a terminal block — a 24 V DC-supplied sibling exists for cabinets built around a DC power bus. Port count, redundancy protocols, and PROFINET conformity class B are otherwise identical to that DC sibling, so the choice comes down to which power infrastructure the cabinet already carries.
Applications
19-inch rack-mounted aggregation for PROFINET networks needing MRP ring redundancy across 24 Fast Ethernet field devices, in cabinets fed from a mains AC supply.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XR324 WG |
Transfer rate 1
| transfer rate | 10, 100 Mbit/s |
|---|
Interfaces / for communication / integrated 2
| number of electrical connections: for network components or terminal equipment | 24; RJ45 |
|---|---|
| number of 10/100 Mbit/s RJ45 ports | 24 |
Show all 140 specifications ↓ Show less ↑135 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5324-0BA00-3AR3 |
|---|---|
| Type designation | XR324 WG |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622504666 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 3
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for power supply | IEC plug C14 |
Supply voltage, current consumption, power loss 9
| type of voltage supply / redundant power supply unit | No |
|---|---|
| type of voltage / 1 / of the supply voltage | AC |
| supply voltage / 1 / rated value | 240 V |
| power loss [W] / 1 / rated value | 9 W |
| supply voltage / 1 / voltage range | 85 ... 264 |
| consumed current / 1 / maximum | 0.09 A |
| type of electrical connection / 1 / for power supply | IEC plug C14 |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | F 4 A / 250 V |
Ambient conditions 5
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP30 |
Design, dimensions and weights 10
| design | 19-inch rack |
|---|---|
| number of modular height units / relating to 19-inch cabinet | 1 |
| width | 483 mm |
| height | 44 mm |
| depth | 177 mm |
| fastening method: 19-inch installation | Yes |
| fastening method: 35 mm DIN-rail mounting | No |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | No |
| fastening method: S7-1500 rail mounting | No |
Product features, product functions, product components / general 2
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
Product functions / management, configuration, engineering 28
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: port mirroring | Yes |
| product function: multiport mirroring | No |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | II |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | No |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 7
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| product function: VLAN dynamic | Yes |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 17
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | No |
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function: passive listening | Yes |
| protocol / is supported: STP/RSTP | Yes |
| protocol / is supported: STP | Yes |
| protocol / is supported: RSTP | Yes |
| protocol / is supported: MSTP | No |
| protocol / is supported: RSTP big network support | Yes |
| protocol / is supported: LACP | No |
Product functions / security 4
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
Product functions / time 4
| product function: SICLOCK support | Yes |
|---|---|
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
| protocol / is supported: IEEE 1588 profile default | No |
Standards, specifications, approvals 10
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class B) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
| standards, specifications, approvals / other certificate of suitability: railway application in accordance with EN 50155 | No |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 356.24 kg |
| global warming potential [CO2 eq]: during manufacturing | 109.07 kg |
| global warming potential [CO2 eq]: during operation | 246.62 kg |
| global warming potential [CO2 eq]: after end of life | 0.55 kg |
Product functions / general 2
| MTBF | 50 a |
|---|---|
| warranty period | 5 a |
Approvals / Certificates 2
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 109.07 kg |
|---|---|
| Environment General Product Approval | Declaration of Con- formity |
Logistics 7
| Net weight | 3 kg |
|---|---|
| Package dimensions | 305 × 483 × 44 mm |
| Country of origin | DE |
| Shipping weight | 3.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
