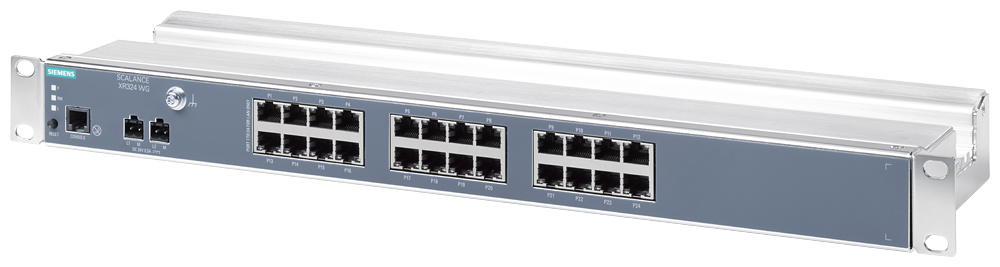

Siemens 6GK5324-0BA00-2AR3 SCALANCE XR324WG 24x RJ45 DC24V 19-Inch Managed Switch

The Siemens 6GK5324-0BA00-2AR3 SCALANCE XR324WG is a managed Layer 2 Industrial Ethernet switch built for 19-inch rack mounting, with 24 electrical 10/100 Mbit/s RJ45 ports on a 24 V DC supply. It carries IEC 62443-4-2 certification for its network management functions and supports MRP/HRP ring redundancy with a redundancy manager, meeting PROFINET conformity class B and network load class II.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• KC
• RCM
• ATEX
• UKEX
• IECEx
• ULhazloc
• CCC-Ex
• FM

Selection Notes

This is the 24 V DC-supplied version, suited to 19-inch cabinets already carrying a 24 V DC power bus, which avoids running a separate mains feed to the rack; an AC 230 V sibling exists for cabinets that only distribute mains voltage. With 24 electrical 10/100 Mbit/s ports and no PoE or gigabit uplinks, this XR324WG is a straight Fast Ethernet aggregation switch — a PoE-capable, gigabit-ready XR324-4M variant exists where powered endpoints or fiber uplinks are needed.

Applications

19-inch rack-mounted aggregation for PROFINET networks that need MRP ring redundancy across 24 Fast Ethernet field devices, in cabinets built around a 24 V DC power bus.
