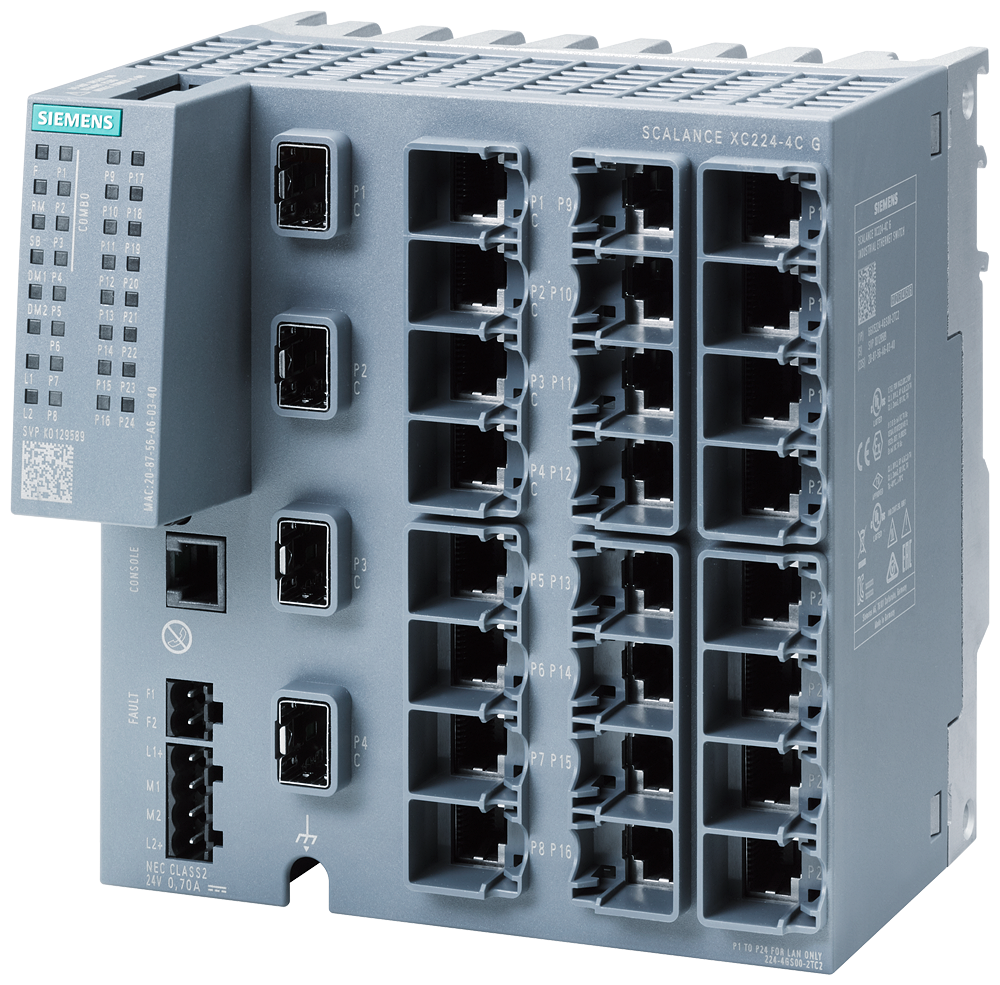

Siemens 6GK5224-4GS00-2AC2 SCALANCE XC224-4C G Full Gigabit 24xRJ45 4xSFP Switch

The Siemens 6GK5224-4GS00-2AC2 SCALANCE XC224-4C G is a full-Gigabit managed Layer 2 switch with 24 10/100/1000 Mbit/s RJ45 ports plus 4 Gigabit combo ports for RJ45 or SFP transceivers. Rated for -40 to +70 degC operation at IP20 with redundant 24 V DC supply, it adds IEEE 1588v2 PTP timing on top of RSTP, MRP, HRP, and PRP redundancy.

Technical Specifications

Certifications & Standards

• CE
• cULus
• KC
• ATEX
• UKEX

Selection Notes

The XC224-4C G steps up from the 16-port XC216-4C G to 24 full-Gigabit RJ45 ports plus 4 SFP-capable combo ports, so specify it for backbone or aggregation points that need more Gigabit device connections than the 216 family offers. IEEE 1588v2 PTP timing and the same -40 to +70 degC/IP20 rating carry over from the 216-series, so choose this variant purely on port count. Pick the 216-series instead when 24 ports exceed the segment's actual device count.

Applications

Full-Gigabit managed switching for larger PROFINET or EtherNet/IP backbones needing IEEE 1588v2 time synchronization and a Gigabit fiber or copper uplink, in cabinets exposed to wide temperature ranges.
