- Part number
- 6GK5216-4BS00-2AC2
- Model no
- XC216-4C

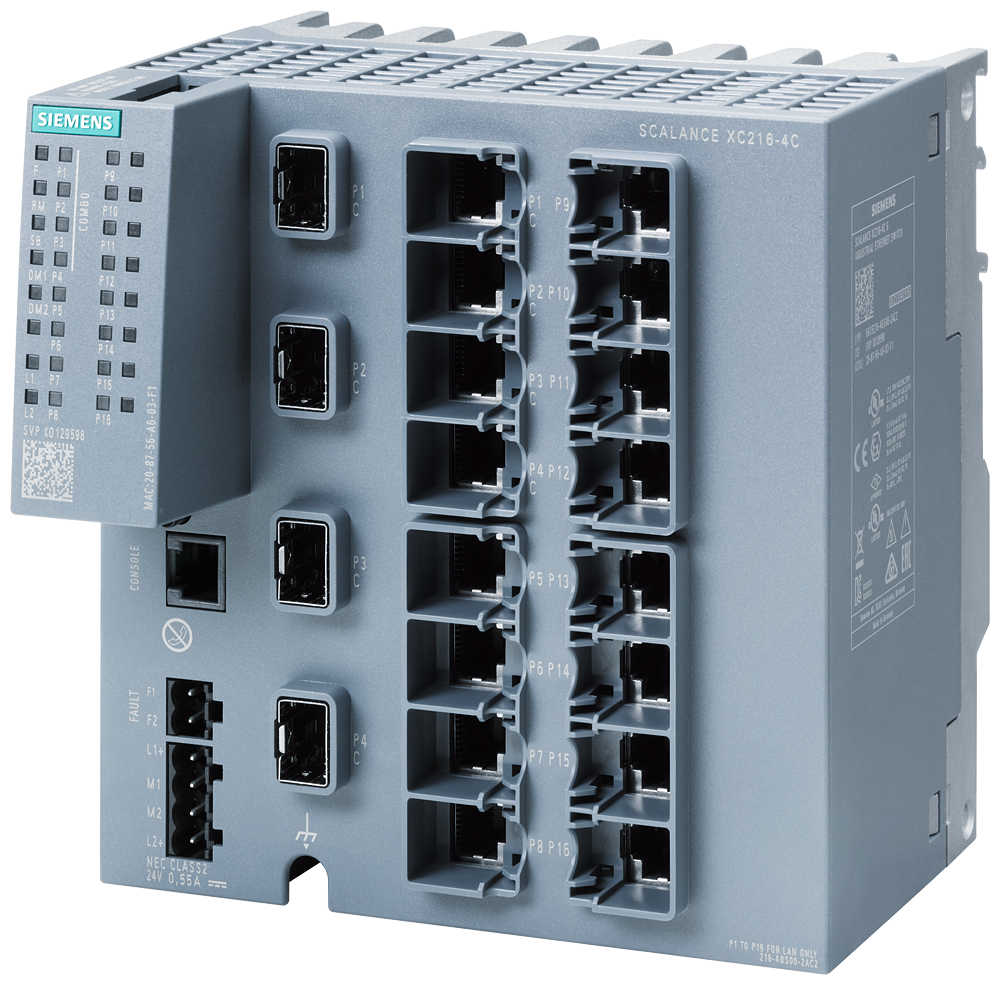

SCALANCE XC216Siemens 6GK5216-4BS00-2AC2 SCALANCE XC216-4C 12xRJ45 4xCombo Ethernet Switch
Managed SCALANCE XC216-4C switch, 12x RJ45 + 4x Gigabit combo/SFP ports, -40 to 70C rated.
Description
About the XC216-4C
About the XC216-4C
The Siemens 6GK5216-4BS00-2AC2 SCALANCE XC216-4C is a managed Layer 2 industrial Ethernet switch with 12 RJ45 10/100 Mbit/s ports plus 4 Gigabit combo ports that accept either RJ45 or SFP fiber transceivers. Rated for -40 to +70 degC operation at IP20 with redundant 24 V DC supply, it supports RSTP, MRP, HRP, and PRP redundancy at PROFINET conformity class B.
Certifications & Standards
- CE
- RCM
- ATEX
- UKEX
- IECEx
Selection Notes
The XC216-4C adds 4 Gigabit combo ports (RJ45 or SFP, user-selectable) to the 12-port RJ45 XC216-4C layout, so choose it when the segment needs a fiber or copper Gigabit uplink alongside standard 10/100 device ports without stepping up to the full-Gigabit XC216-4C G. It shares the XC216 family's -40 to +70 degC range and die-cast aluminum/PC-GF10 enclosure for outdoor cabinets or unheated switch rooms. Pick the plain XC216 instead when no Gigabit uplink or SFP option is needed.
Applications
Managed access-layer switching for PROFINET or EtherNet/IP cells needing 10/100 device ports plus a Gigabit fiber or copper uplink, in cabinets exposed to wide temperature ranges.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XC216-4C |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 4
| number of electrical connections: for network components or terminal equipment | 16; RJ45 |
|---|---|
| number of 10/100 Mbit/s RJ45 ports: with securing collar | 12 |
| number of 10/100/1000 Mbit/s RJ45 ports | 4 |
| number of combo ports / with RJ45 interface for optical plug-in transceiver | 4; 1000 MBit/s SFPs |
Show all 172 specifications ↓ Show less ↑165 more values in Identification, Interfaces / for communication / plug-in, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, System modification during operation, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / marine classification, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, For use in hazardous locations Test Certificates Maritime application, Logistics.
Identification 10
| Part number | 6GK5216-4BS00-2AC2 |
|---|---|
| Type designation | XC216-4C |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622642597 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / for communication / plug-in 1
| number of electrical connections: for SFP | 4 |
|---|
Interfaces / other 8
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for operator console | RJ11 |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 3-pole terminal block, permanently installed |
| design of the removable storage: C-PLUG | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
Supply voltage, current consumption, power loss 9
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 13.2 W |
| supply voltage / 1 / voltage range | 9.6 ... 31.2 |
| consumed current / 1 / maximum | 0.55 A |
| type of electrical connection / 1 / for power supply | 3-pole terminal block, permanently installed |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 3,15 A / 125 V |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 9
| design | compact |
|---|---|
| width | 140 mm |
| height | 150 mm |
| depth | 125 mm |
| material / of the enclosure | Polycarbonate (PC-GF10) / pressure die cast aluminum |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
Product features, product functions, product components / general 5
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
| product function: QoS according to DSCP | Yes |
| product feature: Cut Through switching method | No |
| product feature: Store & Forward switching method | Yes |
Product functions / management, configuration, engineering 31
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: SMTP server | No |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 10240 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 6
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 15
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: of the PROFINET IO device / is supported / H-Sync forwarding | Yes |
| product function: of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function: passive listening | Yes |
| protocol / is supported: LACP | Yes |
System modification during operation 1
| product function / configuration in RUN via CiR/H-CiR | Yes |
|---|
Product functions / security 6
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: RADIUS client | Yes |
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 5
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: SNTP client | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
Standards, specifications, approvals 6
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| product conformity / according to EMC-guideline | 2014/30/EU |
| standard: for EMC interference emission | EN 61000-6-4, EN 50121-4 |
| standard: for immunity to EMC | EN 61000-6-2, EN 50121-4 |
| standard: for safety / from CSA and UL | UL 60950-1 E115352, UL-61010-2 E85972 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 4
| certificate of suitability: railway application in accordance with EN 50121-4 | Yes |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / marine classification 9
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
|---|---|
| Marine classification association: French marine classification society (BV) | Yes |
| Marine classification association: Chinese Classification Society (CCS) | Yes |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Korean Register of Shipping (KRS) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | Yes |
| Marine classification association: Nippon Kaiji Kyokai (NK) | Yes |
| Marine classification association: Polski Rejestr Statkow (PRS) | Yes |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 339.9 kg |
| global warming potential [CO2 eq]: during manufacturing | 57.33 kg |
| global warming potential [CO2 eq]: during operation | 281.79 kg |
| global warming potential [CO2 eq]: after end of life | 0.76 kg |
Product functions / general 3
| MTBF | 46 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 3
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 57.33 kg |
|---|---|
| Environment General Product Approval Declaration of Con-formity | For use in hazard- |
| General Product Approval EMV | ous locations |
For use in hazardous locations Test Certificates Maritime application 1
| FM CCC-Ex Special Test Certific- | ate |
|---|
Logistics 7
| Net weight | 0.52 kg |
|---|---|
| Package dimensions | 125 × 140 × 150 mm |
| Country of origin | DE |
| Shipping weight | 1.02 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5216-4BS00-2AC2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
- FM registration
- railway application in accordance with EN 50121-4
- RoHS conformity
Quick answers
Questions about the XC216-4C
What is the rated current of XC216-4C?
The rated current of XC216-4C is 0.55 A.
Which supply voltage is XC216-4C rated for?
The rated operational voltage of XC216-4C is 24 V AC.
What is the HS code of XC216-4C for customs?
The tariff (HS) code on file for XC216-4C is 85176200.
What is the EAN of XC216-4C?
The EAN (GTIN) of XC216-4C is 4047622642597.
Where does XC216-4C ship from, and how fast?
XC216-4C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Siemens SCALANCE XC216
- Brand
- Siemens
- Series
- SCALANCE XC216
