- Part number
- 6GK5216-0UA00-5ES6
- Model no
- XP216PoE EEC
Siemens has announced the end of 6GK5216-0UA00-5ES6
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

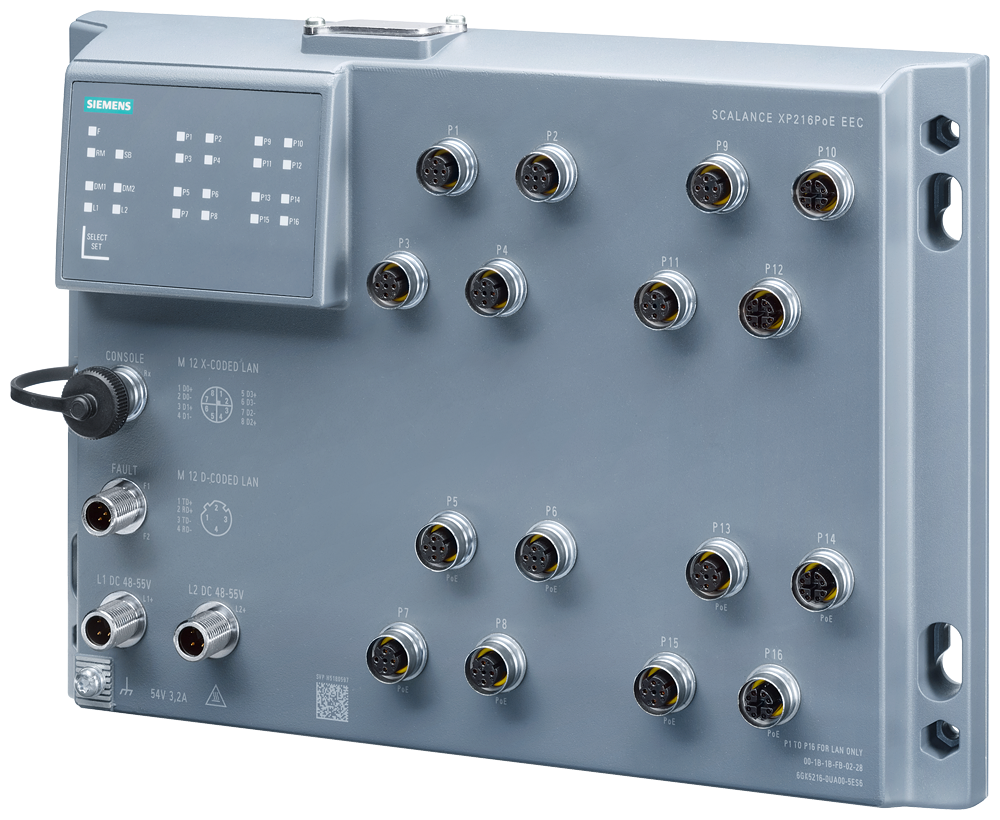

SCALANCE XP216Siemens 6GK5216-0UA00-5ES6 SCALANCE XP216PoE EEC 16-Port M12 PoE Railway Switch
Managed SCALANCE XP216PoE EEC switch, 16x M12 ports (8x PoE), IP65, EN 50155 railway approval.
Description
About the XP216PoE EEC
About the XP216PoE EEC
The Siemens 6GK5216-0UA00-5ES6 SCALANCE XP216PoE EEC is a managed industrial Ethernet switch with 16 M12-coded ports, 8 of which supply Power over Ethernet at up to 30 W per port and 120 W total, plus railway approval to EN 50155 and EN 45545. Rated IP65 and -40 to +70 degC continuous, it runs PROFINET IO diagnostics at conformity class B with MRP and HRP redundancy.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
Selection Notes
The XP216PoE EEC combines the 16-port M12 XP216 layout with 8 PoE-capable ports (6 at 10/100 Mbit/s, 2 Gigabit) and EN 50155/EN 45545 railway approval, so specify it when rolling-stock or trackside equipment needs to power PoE devices such as cameras directly from the switch. Compared with the non-PoE XP216EEC, the higher 54 V PoE supply and 13 W rated power loss reflect the added PSE circuitry. Choose the standard XP216PoE (non-EEC) instead for stationary field installations that do not require railway type approval.
Applications
M12 field-mounted PROFINET switching for rolling-stock or trackside networks that need to power PoE cameras or wireless access points directly, under EN 50155/EN 45545 railway approval.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XP216PoE EEC |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 4
| number of electrical connections: for network components or terminal equipment | 16; M12 |
|---|---|
| number of 10/100 Mbit/s M12-ports (D-coded) | 6 |
| with PoE | 6 |
| number of 10/100/1000 Mbit/s M12-ports (X-coded) | 2 |
Show all 165 specifications ↓ Show less ↑158 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, System modification during operation, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5216-0UA00-5ES6 |
|---|---|
| Type designation | XP216PoE EEC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622310465 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 10
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 2 |
| type of electrical connection: for operator console | 5-pole M12 socket (A-coded) |
| type of electrical connection: for signaling contact | 5-pole M12 plug (B-coded) |
| type of electrical connection: for power supply | 4-pole M12 plug (A-coded) |
| design of the removable storage: C-PLUG | Yes |
| product function / device replacement with replacement of the storage medium | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 54 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 12
| product component / connection for redundant voltage supply | Yes |
|---|---|
| supplied active power / of PSE / with PoE: per port / maximum | 30 W |
| supplied active power / of PSE / with PoE: total / maximum | 120 W |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 54 V; XP-200EEC with EN 50155 supports the voltage range 46 ... 57 V DC |
| power loss [W] / 1 / rated value | 13 W |
| consumed current / 1 / at rated supply voltage / maximum | 2.5 A |
| supply voltage / 1 / voltage range | 46 ... 57 |
| consumed current / 1 / maximum | 2.5 A |
| type of electrical connection / 1 / for power supply | 4-pole M12 plug (A-coded) |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 5 A / 60 V |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| ambient temperature: note | EEC variants with EN 50155 support for 10 minutes: -40 °C ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP65 |
Design, dimensions and weights 8
| design | compact |
|---|---|
| width | 280 mm |
| height | 200 mm |
| depth | 49 mm |
| product feature / conformal coating | Yes |
| material / of the enclosure | Aluminum |
| fastening method | ET200pro module carrier |
| wall mounting | Yes |
Product features, product functions, product components / general 5
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
| product function: QoS according to DSCP | Yes |
| product feature: Cut Through switching method | No |
| product feature: Store & Forward switching method | Yes |
Product functions / management, configuration, engineering 32
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: SMTP server | No |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: with IRT / PROFINET IO switch | No |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | II |
| telegram length / for Ethernet / maximum | 1518 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 6
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 13
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: of the PROFINET IO device / is supported / H-Sync forwarding | Yes |
| product function: of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function: passive listening | Yes |
System modification during operation 1
| product function / configuration in RUN via CiR/H-CiR | Yes |
|---|
Product functions / security 6
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: RADIUS client | Yes |
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 5
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: SNTP client | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1 E115352, CSA C22.2 No. 60950-1 |
Standards, specifications, approvals / hazardous environments 5
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 5
| certificate of suitability: railway application in accordance with EN 50155 | Yes; OT4, ST1, H1, S2, C1, L4, PC2 |
|---|---|
| certificate of suitability: fire protection in accordance with EN 45545-2 | Yes; Class HL1 - HL3 |
| certificate of suitability: RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 417.94 kg |
| global warming potential [CO2 eq]: during manufacturing | 61.47 kg |
| global warming potential [CO2 eq]: during operation | 356.2 kg |
| global warming potential [CO2 eq]: after end of life | 0.27 kg |
Product functions / general 4
| MTBF | 29 a |
|---|---|
| reference temperature / for MTBF determination | 40 °C |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 61.47 kg |
|---|
Logistics 6
| Net weight | 0.6 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5216-0UA00-5ES6
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- CCC / for hazardous zone according to GB standard
- FM registration
Quick answers
Questions about the XP216PoE EEC
What is the rated current of XP216PoE EEC?
The rated current of XP216PoE EEC is 2.5 A.
Which supply voltage is XP216PoE EEC rated for?
The rated operational voltage of XP216PoE EEC is 54 V AC.
What is the HS code of XP216PoE EEC for customs?
The tariff (HS) code on file for XP216PoE EEC is 85176200.
What is the EAN of XP216PoE EEC?
The EAN (GTIN) of XP216PoE EEC is 4047622310465.
Where does XP216PoE EEC ship from, and how fast?
XP216PoE EEC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
