- Part number
- 6GK5213-3BF00-2AB2
- Model no
- XB213-3LD

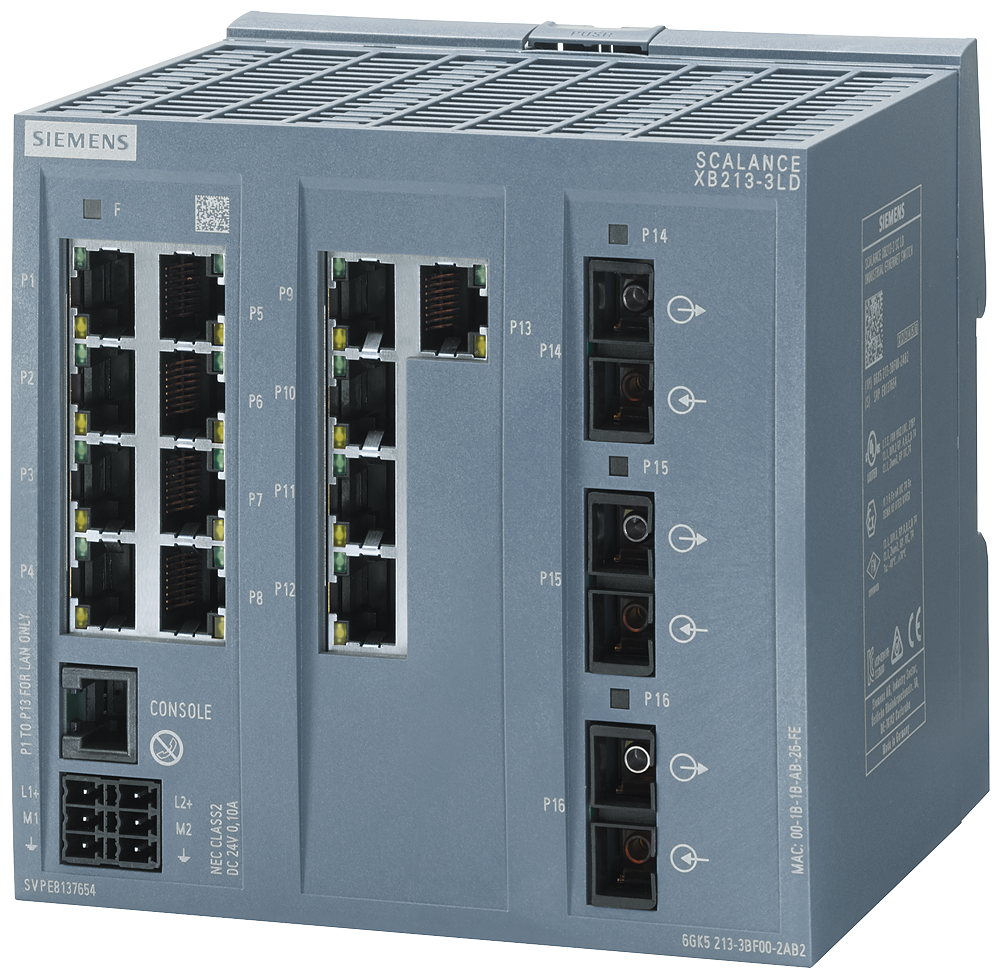

SCALANCE XB213Siemens 6GK5213-3BF00-2AB2 SCALANCE XB213-3LD 13xRJ45 3xSC Single-Mode Ethernet Switch
Managed SCALANCE XB213-3LD switch, 13x RJ45 + 3x SC single-mode fiber, IEC 62443-4-2 certified.
Description
About the XB213-3LD
About the XB213-3LD
The Siemens 6GK5213-3BF00-2AB2 SCALANCE XB213-3LD is a managed Layer 2 industrial Ethernet switch with 13 RJ45 10/100 Mbit/s ports plus 3 SC single-mode long-distance fiber ports, a console port, and redundant power inputs. It is IEC 62443-4-2 certified and rated for 0 to +60 degC operation with DIN-rail mounting and default PROFINET support.
Certifications & Standards
- CE
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- ULHazLoc
- CCC
- FM
- IEC 62443-4-2
Selection Notes
The XB213-3LD swaps the XB213-3's multimode ST ports for 3 single-mode SC long-distance (LD) fiber ports, so choose it when a fiber run exceeds typical multimode distances and needs a long-haul optical budget instead. Otherwise it shares the XB213-3's 13-port RJ45 layout, indoor 0 to +60 degC rating, and IEC 62443-4-2 certification. Pick the multimode XB213-3 instead when the fiber backbone is already ST/multimode and distance is not a constraint.
Applications
Managed access-layer switching for PROFINET or EtherNet/IP cells needing a single-mode fiber uplink over longer distances than multimode fiber supports, under indoor ambient conditions.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XB213-3LD |
Transfer rate 1
| transfer rate | 10, 100 Mbit/s |
|---|
Interfaces / for communication / integrated 3
| number of electrical connections: for network components or terminal equipment | 13; RJ45 |
|---|---|
| number of 100 Mbit/s SC ports: for single mode (LD) | 3 |
| transmission method / of the optical interface | 100BaseLX LD |
Show all 132 specifications ↓ Show less ↑126 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5213-3BF00-2AB2 |
|---|---|
| Type designation | XB213-3LD |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622178423 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 4
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for operator console | RJ11 |
| type of electrical connection: for management purposes | RJ45 |
Supply voltage, current consumption, power loss 8
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 9.6 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 0.4 A |
| type of electrical connection / 1 / for power supply | 6-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
Ambient conditions 5
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 6
| design | compact |
|---|---|
| width | 120 mm |
| height | 117 mm |
| depth | 109 mm |
| material / of the enclosure | Polycarbonate (PC-GF10) |
| fastening method: 35 mm DIN-rail mounting | Yes |
Product features, product functions, product components / general 2
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
Product functions / management, configuration, engineering 29
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 1632 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 5
| product function: VLAN - port based | Yes |
|---|---|
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
| product functions / DHCP product function: DHCP client | Yes |
Product functions / redundancy 11
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: of the PROFINET IO device / is supported / PROFINET system redundancy | No |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function: passive listening | Yes |
Product functions / security 6
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: RADIUS client | Yes |
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 4
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: SNTP client | Yes |
| protocol / is supported: SNTP | Yes |
Standards, specifications, approvals 7
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1 E115352, CSA C22.2 No. 60950-1 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 3
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 4
| global warming potential [CO2 eq]: total | 341.88 kg |
|---|---|
| global warming potential [CO2 eq]: during manufacturing | 40.94 kg |
| global warming potential [CO2 eq]: during operation | 300.43 kg |
| global warming potential [CO2 eq]: after end of life | 0.51 kg |
Product functions / general 3
| MTBF | 40 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 40.94 kg |
|---|
Logistics 7
| Net weight | 0.578 kg |
|---|---|
| Package dimensions | 125 × 180 × 147 mm |
| Country of origin | DE |
| Shipping weight | 1.078 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5213-3BF00-2AB2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
- FM registration
Quick answers
Questions about the XB213-3LD
What is the rated current of XB213-3LD?
The rated current of XB213-3LD is 0.4 A.
What is the HS code of XB213-3LD for customs?
The tariff (HS) code on file for XB213-3LD is 85176200.
What is the EAN of XB213-3LD?
The EAN (GTIN) of XB213-3LD is 4047622178423.
Where does XB213-3LD ship from, and how fast?
XB213-3LD ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
