- Part number
- 6GK5208-0UA00-5ES6
- Model no
- XP208PoE EEC
Siemens has announced the end of 6GK5208-0UA00-5ES6
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

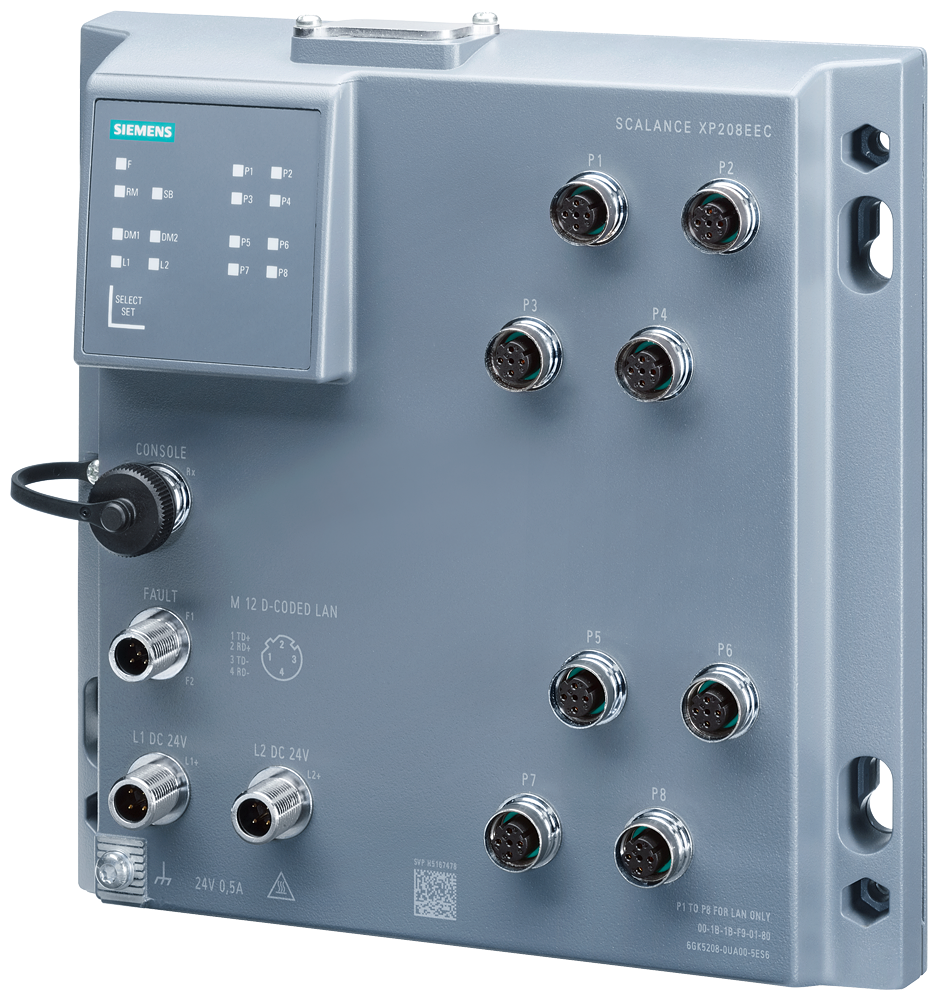

SCALANCE XP208Siemens 6GK5208-0UA00-5ES6 SCALANCE XP208PoE EEC 8-Port M12 PoE IP65 Ethernet Switch
Managed SCALANCE XP208PoE EEC switch, 8x M12 ports (4x PoE, 120W max), IP65, -40 to 70C.
Description
About the XP208PoE EEC
About the XP208PoE EEC
The Siemens 6GK5208-0UA00-5ES6 SCALANCE XP208PoE EEC is a managed industrial Ethernet switch with 8 M12-coded 10/100 Mbit/s ports, 4 of which supply Power over Ethernet at up to 30 W per port and 120 W total. Rated IP65 for cabinet-free mounting and -40 to +70 degC operation, it runs PROFINET IO diagnostics at conformity class B with MRP and HRP ring redundancy.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- CCC
- FM
Selection Notes
The XP208PoE EEC packs its 8 ports into M12 connectors with an IP65 housing, so it mounts directly in the field without a control cabinet, unlike the RJ45-based XC/XB series that need IP20 enclosures. The 4 PoE-capable ports (30 W per port, 120 W total budget) let it power M12-connected cameras or WLAN access points from the switch itself, removing separate injectors. Choose the EEC variant over the standard XP208 when the installation needs the extended -40 to +85 degC 10-minute transport rating on top of the normal -40 to +70 degC operating range.
Applications
M12 field-mounted PROFINET switching for machine-level networks and outdoor/vibration-exposed installations that need to power PoE devices such as IP cameras or WLAN access points directly at the switch.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XP208PoE EEC |
Transfer rate 1
| transfer rate | 10, 100 Mbit/s |
|---|
Interfaces / for communication / integrated 3
| number of electrical connections: for network components or terminal equipment | 8; M12 |
|---|---|
| number of 10/100 Mbit/s M12-ports (D-coded) | 4 |
| with PoE | 4 |
Show all 164 specifications ↓ Show less ↑158 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, System modification during operation, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5208-0UA00-5ES6 |
|---|---|
| Type designation | XP208PoE EEC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622294208 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 10
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 2 |
| type of electrical connection: for operator console | 5-pole M12 socket (A-coded) |
| type of electrical connection: for signaling contact | 5-pole M12 plug (B-coded) |
| type of electrical connection: for power supply | 4-pole M12 plug (A-coded) |
| design of the removable storage: C-PLUG | Yes |
| product function / device replacement with replacement of the storage medium | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 54 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 12
| product component / connection for redundant voltage supply | Yes |
|---|---|
| supplied active power / of PSE / with PoE: per port / maximum | 30 W |
| supplied active power / of PSE / with PoE: total / maximum | 120 W |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 54 V; XP-200EEC with EN 50155 supports the voltage range 46 ... 57 V DC |
| power loss [W] / 1 / rated value | 9 W |
| consumed current / 1 / at rated supply voltage / maximum | 2.5 A |
| supply voltage / 1 / voltage range | 46 ... 57 |
| consumed current / 1 / maximum | 2.4 A |
| type of electrical connection / 1 / for power supply | 4-pole M12 plug (A-coded) |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 5 A / 60 V |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| ambient temperature: note | EEC variants with EN 50155 support for 10 minutes: -40 °C ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP65 |
Design, dimensions and weights 8
| design | compact |
|---|---|
| width | 200 mm |
| height | 200 mm |
| depth | 49 mm |
| product feature / conformal coating | Yes |
| material / of the enclosure | Aluminum |
| fastening method | ET200pro module carrier |
| wall mounting | Yes |
Product features, product functions, product components / general 5
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
| product function: QoS according to DSCP | Yes |
| product feature: Cut Through switching method | No |
| product feature: Store & Forward switching method | Yes |
Product functions / management, configuration, engineering 32
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: SMTP server | No |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: with IRT / PROFINET IO switch | No |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 1518 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 6
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 13
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: of the PROFINET IO device / is supported / H-Sync forwarding | Yes |
| product function: of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function: passive listening | Yes |
System modification during operation 1
| product function / configuration in RUN via CiR/H-CiR | Yes |
|---|
Product functions / security 6
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: RADIUS client | Yes |
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 5
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: SNTP client | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1 E115352, CSA C22.2 No. 60950-1 |
Standards, specifications, approvals / hazardous environments 5
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 4
| certificate of suitability: railway application in accordance with EN 50155 | Yes; OT4, ST1, H1, S2, C1, L4, PC2 |
|---|---|
| certificate of suitability: fire protection in accordance with EN 45545-2 | Yes; Class HL1 - HL3 |
| certificate of suitability: RoHS conformity | Yes |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 311.08 kg |
| global warming potential [CO2 eq]: during manufacturing | 61.47 kg |
| global warming potential [CO2 eq]: during operation | 249.34 kg |
| global warming potential [CO2 eq]: after end of life | 0.27 kg |
Product functions / general 4
| MTBF | 49 a |
|---|---|
| reference temperature / for MTBF determination | 40 °C |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 61.47 kg |
|---|
Logistics 7
| Net weight | 0.6 kg |
|---|---|
| Package dimensions | 109 × 120 × 117 mm |
| Country of origin | DE |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5208-0UA00-5ES6
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- CCC / for hazardous zone according to GB standard
- FM registration
Quick answers
Questions about the XP208PoE EEC
What is the rated current of XP208PoE EEC?
The rated current of XP208PoE EEC is 2.5 A.
Which supply voltage is XP208PoE EEC rated for?
The rated operational voltage of XP208PoE EEC is 54 V AC.
What is the HS code of XP208PoE EEC for customs?
The tariff (HS) code on file for XP208PoE EEC is 85176200.
What is the EAN of XP208PoE EEC?
The EAN (GTIN) of XP208PoE EEC is 4047622294208.
Where does XP208PoE EEC ship from, and how fast?
XP208PoE EEC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
