- Part number
- 6GK5208-0RA00-5AC2
- Model no
- XC208G PoE (DC 54V)

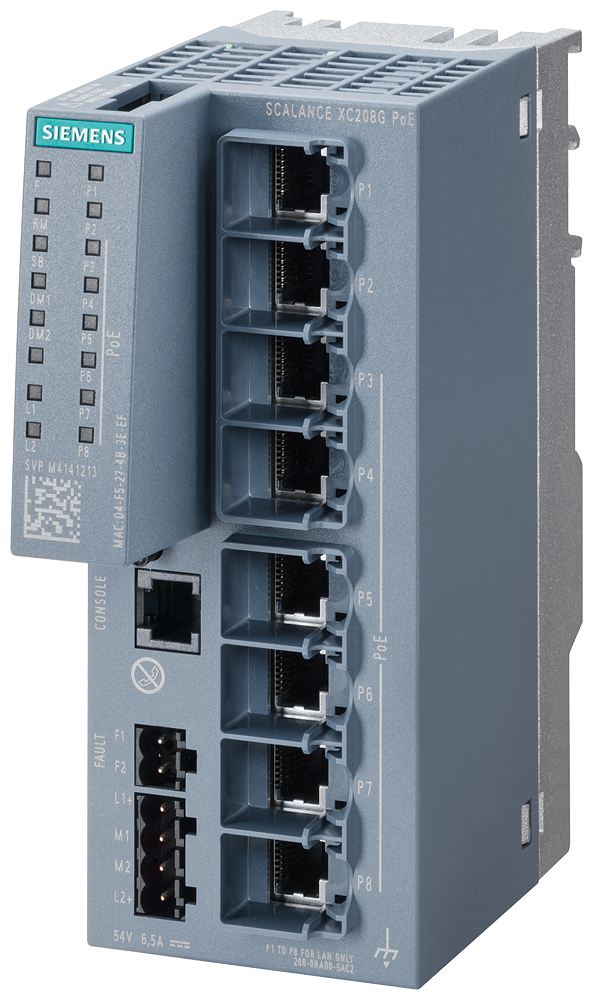

SCALANCE XC208Siemens 6GK5208-0RA00-5AC2 SCALANCE XC208G PoE (DC 54V) 8-Port Gigabit 240W Managed Switch
Siemens SCALANCE XC208G PoE managed Gigabit switch, 54V DC infeed, 8x RJ45 (6 PoE, 240W), IEC 62443-4-2.
Description
About the XC208G PoE (DC 54V)
About the XC208G PoE (DC 54V)
The Siemens SCALANCE 6GK5208-0RA00-5AC2 (XC208G PoE, DC 54 V) is a managed Gigabit PROFINET switch with eight 10/100/1000 Mbit/s RJ45 ports, six of them PoE (four IEEE 802.3at, two 802.3bt). Its 54 V DC infeed raises the total PoE budget to 240 W, versus 120 W on the 24 V version, and it is certified to IEC 62443-4-2 with PROFINET conformity class B.
Certifications & Standards
- CE
- KC
- RCM
Selection Notes
The 6GK5208-0RA00-5AC2 is the 54 V infeed sibling of the XC208G PoE family: choose it when the plant runs a 54 V DC bus, since the higher infeed voltage doubles the switchable PoE budget to 240 W against 120 W on the 24 V unit. Port count (eight, six PoE), SFP-free Gigabit copper layout and PROFINET conformity class B match the 24 V version, so the decision is about available supply voltage and PoE load rather than switching capability.
Applications
Eight-port PoE camera and access-point networks on plants running a 54 V DC control bus where the higher per-port PoE budget is needed.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XC208G PoE (DC 54V) |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 2
| number of electrical connections: for network components or terminal equipment | 8; RJ45 |
|---|---|
| number of 10/100/1000 Mbit/s RJ45 ports: with securing collar | 2; 4 PoE ports according to IEEE 802.3at (30 W), 2 PoE ports according to IEEE 802.3bt (60 W) |
Show all 159 specifications ↓ Show less ↑154 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, System modification during operation, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Environment General Product Approval, Logistics.
Identification 10
| Part number | 6GK5208-0RA00-5AC2 |
|---|---|
| Type designation | XC208G PoE (DC 54V) |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622840405 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 8
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| type of electrical connection: for operator console | RJ11 |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 4-pole terminal block |
| design of the removable storage: C-PLUG | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 54 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 8
| product component / connection for redundant voltage supply | Yes |
|---|---|
| supplied active power / of PSE / with PoE: total / maximum | 260 W |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 54 V |
| consumed current / 1 / at rated supply voltage / maximum | 5 A |
| supply voltage / 1 / voltage range | 52 ... 57 |
| consumed current / 1 / maximum | 5 A |
| fuse protection type / 1 / at input for supply voltage | 15 A / 125 V |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: note | installation position and SFPs used during the operation have to be considered (see manual) |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 10
| design | compact |
|---|---|
| width | 60 mm |
| height | 147 mm |
| depth | 125 mm |
| product feature / conformal coating | No |
| material / of the enclosure | Polycarbonate (PC-GF10) / pressure die cast aluminum |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
Product features, product functions, product components / general 5
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
| product function: QoS according to DSCP | Yes |
| product feature: Cut Through switching method | No |
| product feature: Store & Forward switching method | Yes |
Product functions / management, configuration, engineering 31
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: SMTP server | No |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 10240 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 6
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 15
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: of the PROFINET IO device / is supported / H-Sync forwarding | Yes |
| product function: of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function: passive listening | Yes |
| protocol / is supported: LACP | Yes |
System modification during operation 1
| product function / configuration in RUN via CiR/H-CiR | Yes |
|---|
Product functions / security 6
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: RADIUS client | Yes |
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 6
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: SNTP client | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
| protocol / is supported: IEEE 1588 profile default | Yes |
Standards, specifications, approvals 6
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| product conformity / according to EMC-guideline | 2014/30/EU |
| standard: for EMC interference emission | EN 61000-6-4, EN 50121-4 |
| standard: for immunity to EMC | EN 61000-6-2, EN 50121-4 |
Standards, specifications, approvals / hazardous environments 5
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 3
| certificate of suitability: railway application in accordance with EN 50121-4 | Yes |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 491.2 kg |
| global warming potential [CO2 eq]: during manufacturing | 52.28 kg |
| global warming potential [CO2 eq]: during operation | 438.3 kg |
| global warming potential [CO2 eq]: after end of life | 0.62 kg |
Product functions / general 3
| MTBF | 37 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 52.28 kg |
|---|
Environment General Product Approval 2
| China RoHS Miscellaneous | For use in hazard- |
|---|---|
| General Product Approval EMV | ous locations |
Logistics 7
| Net weight | 0.799 kg |
|---|---|
| Package dimensions | 109 × 120 × 117 mm |
| Country of origin | DE |
| Shipping weight | 1.299 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5208-0RA00-5AC2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- CCC / for hazardous zone according to GB standard
- FM registration
- railway application in accordance with EN 50121-4
- RoHS conformity
Quick answers
Questions about the XC208G PoE (DC 54V)
Which supply voltage is XC208G PoE (DC 54V) rated for?
The rated operational voltage of XC208G PoE (DC 54V) is 54 V AC.
What is the HS code of XC208G PoE (DC 54V) for customs?
The tariff (HS) code on file for XC208G PoE (DC 54V) is 85176200.
What is the EAN of XC208G PoE (DC 54V)?
The EAN (GTIN) of XC208G PoE (DC 54V) is 4047622840405.
Where does XC208G PoE (DC 54V) ship from, and how fast?
XC208G PoE (DC 54V) ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
