- Part number
- 6GK5208-0HA00-2ES6
- Model no
- XP208EEC
Siemens has announced the end of 6GK5208-0HA00-2ES6
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

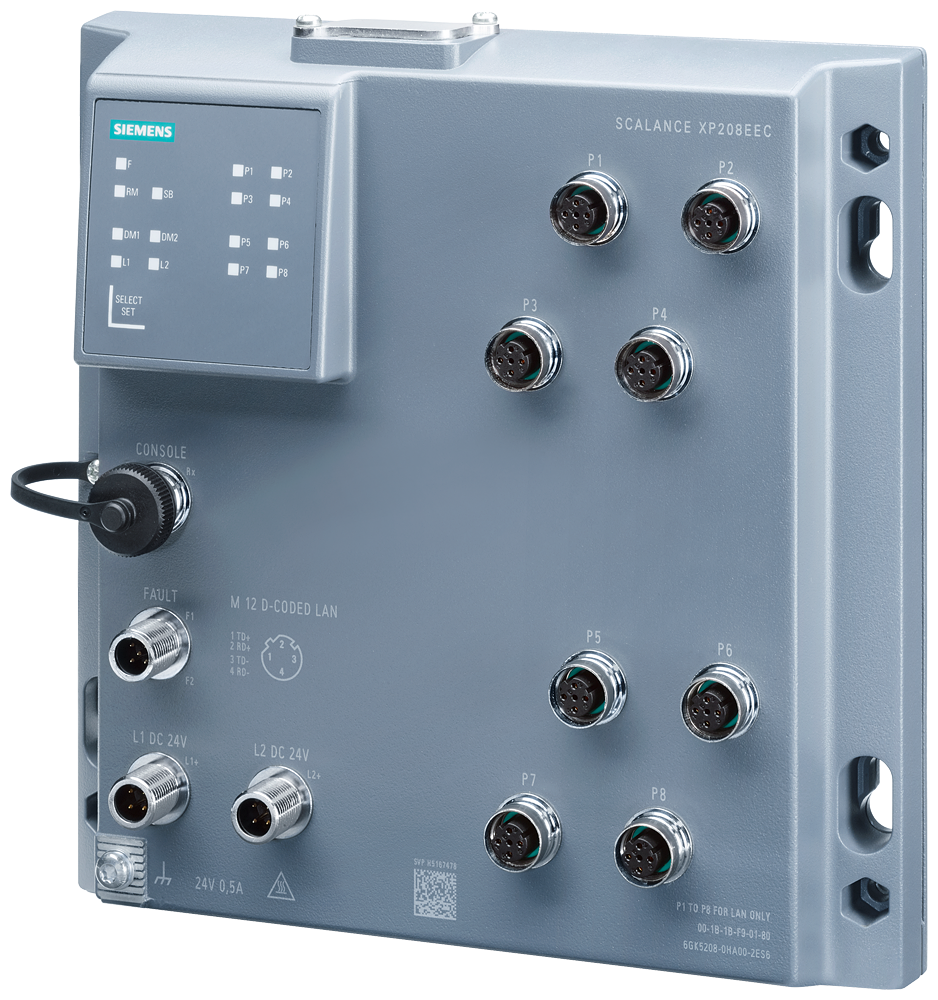

SCALANCE XP208Siemens 6GK5208-0HA00-2ES6 SCALANCE XP208EEC 8-Port M12 IP65 Railway Managed Switch
Siemens SCALANCE XP208EEC managed IP65 switch, EN 50155/EN 45545 railway approval, 8x M12 ports, 24V DC.
Description
About the XP208EEC
About the XP208EEC
The Siemens SCALANCE 6GK5208-0HA00-2ES6 (XP208EEC) is a managed PROFINET switch with eight 10/100 Mbit/s M12 D-coded ports in an IP65 aluminum enclosure, approved to railway standards EN 50155 and EN 45545. Conformal-coated boards let it withstand 10 minutes at -40 to +85 degC, and it runs from a redundant 24 V DC supply with PROFINET conformity class B.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- EN 50155
- EN 45545
Selection Notes
The 6GK5208-0HA00-2ES6 is the railway-rated sibling of the XP208: pick it over the base XP208 when the installation must meet EN 50155 rolling-stock electrical duty or EN 45545 fire-behavior requirements, since conformal coating and the extended 10-minute -40 to +85 degC rating are unique to this variant. Port count, M12 connector layout, IP65 rating and PROFINET conformity class B are identical to the base unit, so outside a railway application the standard XP208 covers the same networking job at lower cost.
Applications
Trackside and onboard PROFINET networks, transit rolling stock, and other EN 50155/EN 45545-regulated environments needing an IP65 M12 managed switch.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XP208EEC |
Transfer rate 1
| transfer rate | 10, 100 Mbit/s |
|---|
Interfaces / for communication / integrated 2
| number of electrical connections: for network components or terminal equipment | 8; M12 |
|---|---|
| number of 10/100 Mbit/s M12-ports (D-coded) | 8 |
Show all 164 specifications ↓ Show less ↑159 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, System modification during operation, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Ous locations, Logistics.
Identification 10
| Part number | 6GK5208-0HA00-2ES6 |
|---|---|
| Type designation | XP208EEC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622294161 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 10
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 2 |
| type of electrical connection: for operator console | 5-pole M12 socket (A-coded) |
| type of electrical connection: for signaling contact | 5-pole M12 plug (B-coded) |
| type of electrical connection: for power supply | 4-pole M12 plug (A-coded) |
| design of the removable storage: C-PLUG | Yes |
| product function / device replacement with replacement of the storage medium | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 16
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V; XP-200EEC with EN 50155 supports the voltage range 16.8 ... 30 V DC |
| power loss [W] / 1 / rated value | 5 W |
| consumed current / 1 / at rated supply voltage / maximum | 0.2 A |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 0.21 A |
| type of electrical connection / 1 / for power supply | 4-pole M12 plug (A-coded) |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 5 A / 60 V |
| ambient conditions ambient temperature: during operation | -40 ... +70 °C |
| ambient conditions ambient temperature: during storage | -40 ... +70 °C |
| ambient conditions ambient temperature: during transport | -40 ... +70 °C |
| ambient conditions ambient temperature: note | EEC variants with EN 50155 support for 10 minutes: -40 °C ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP65 |
Design, dimensions and weights 8
| design | compact |
|---|---|
| width | 200 mm |
| height | 200 mm |
| depth | 49 mm |
| product feature / conformal coating | Yes |
| material / of the enclosure | Aluminum |
| fastening method | ET200pro module carrier |
| wall mounting | Yes |
Product features, product functions, product components / general 5
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
| product function: QoS according to DSCP | Yes |
| product feature: Cut Through switching method | No |
| product feature: Store & Forward switching method | Yes |
Product functions / management, configuration, engineering 32
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: SMTP server | No |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: with IRT / PROFINET IO switch | No |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 1518 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 6
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 13
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: of the PROFINET IO device / is supported / H-Sync forwarding | Yes |
| product function: of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function: passive listening | Yes |
System modification during operation 1
| product function / configuration in RUN via CiR/H-CiR | Yes |
|---|
Product functions / security 6
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: RADIUS client | Yes |
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 5
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: SNTP client | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1 E115352, CSA C22.2 No. 60950-1 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 5
| certificate of suitability: E1 approval | Yes |
|---|---|
| certificate of suitability: railway application in accordance with EN 50155 | Yes; OT4, ST1, H1, S2, C1, L4, PC2 |
| certificate of suitability: fire protection in accordance with EN 45545-2 | Yes; Class HL1 - HL3 |
| certificate of suitability: RoHS conformity | Yes |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 200.66 kg |
| global warming potential [CO2 eq]: during manufacturing | 61.47 kg |
| global warming potential [CO2 eq]: during operation | 138.92 kg |
| global warming potential [CO2 eq]: after end of life | 0.27 kg |
Product functions / general 4
| MTBF | 67 a |
|---|---|
| reference temperature / for MTBF determination | 40 °C |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 61.47 kg |
|---|
Ous locations 2
| CCC-Ex Type Test Certific- inspection certificate ates/Test Report | Industrial Commu- |
|---|---|
| Maritime application Railway | nication |
Logistics 6
| Net weight | 0.6 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5208-0HA00-2ES6
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
Quick answers
Questions about the XP208EEC
Which supply voltage is XP208EEC rated for?
The rated operational voltage of XP208EEC is 24 V AC.
What is the HS code of XP208EEC for customs?
The tariff (HS) code on file for XP208EEC is 85176200.
What is the EAN of XP208EEC?
The EAN (GTIN) of XP208EEC is 4047622294161.
Where does XP208EEC ship from, and how fast?
XP208EEC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
