- Part number
- 6GK5208-0HA00-2AS6
- Model no
- XP208
Siemens has announced the end of 6GK5208-0HA00-2AS6
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

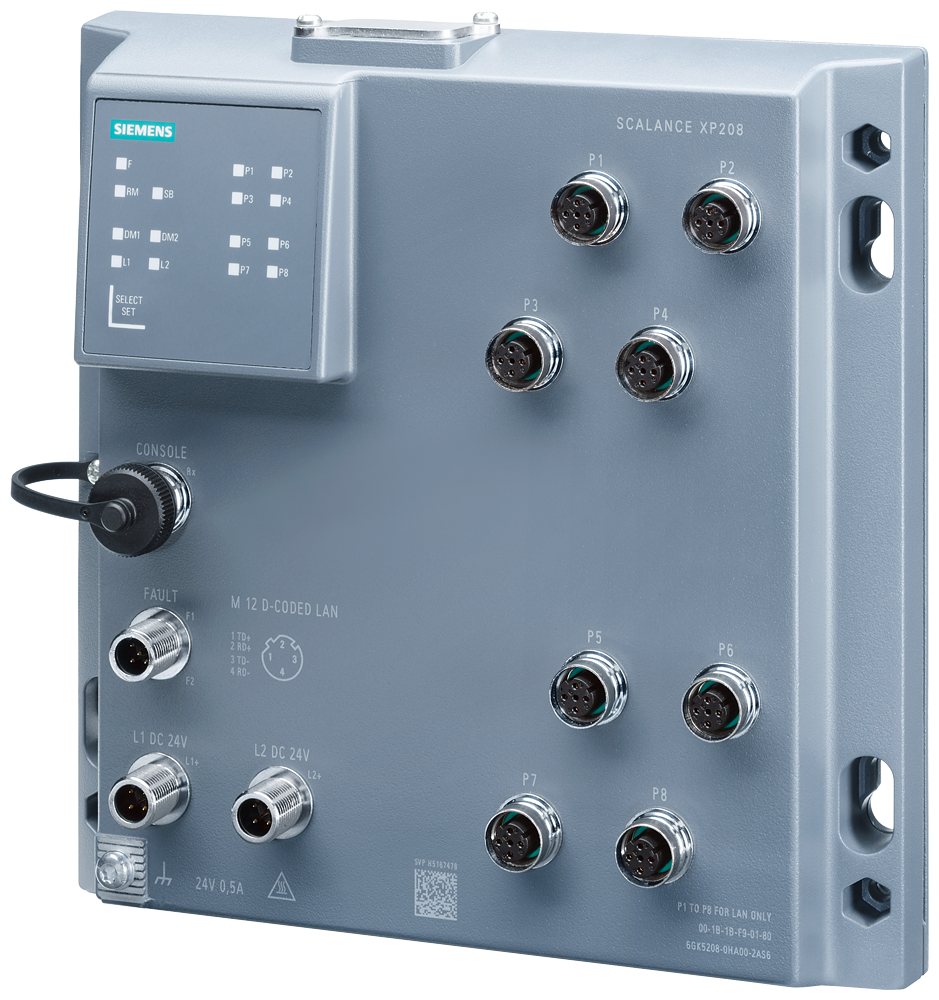

SCALANCE XP208Siemens 6GK5208-0HA00-2AS6 SCALANCE XP208 8-Port M12 IP65 Managed PROFINET Switch
Siemens SCALANCE XP208 managed IP65 switch, 8x M12 10/100 Mbit/s ports, redundant 24V DC, PROFINET IO device.
Description
About the XP208
About the XP208
The Siemens SCALANCE 6GK5208-0HA00-2AS6 (XP208) is a managed PROFINET switch with eight 10/100 Mbit/s M12 D-coded ports in an IP65 aluminum enclosure for direct field mounting without a cabinet. It runs PROFINET conformity class B with network load class III from a redundant 24 V DC supply through M12 power connectors, and supports MRP and HRP ring redundancy.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- ULhazloc
Selection Notes
The 6GK5208-0HA00-2AS6 mounts M12-coded connectors on all eight data ports plus the power and console interfaces, so it fits machine-level installations outside a cabinet where the IP65 rating removes the need for an enclosure. Choose it over the DIN-rail SCALANCE switches in this batch when the install point sees washdown, dust or vibration on the machine itself rather than inside a control panel. It fits the ET 200pro module-carrier mounting rail already used for ET 200pro I/O, keeping the network drop on the same rail as the distributed I/O it serves.
Applications
Machine-mounted PROFINET segments in washdown, dusty or outdoor zones where IP65 M12 connectors replace a cabinet-mounted DIN-rail switch, including ET 200pro-based distributed I/O lines.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XP208 |
Transfer rate 1
| transfer rate | 10, 100 Mbit/s |
|---|
Interfaces / for communication / integrated 2
| number of electrical connections: for network components or terminal equipment | 8; M12 |
|---|---|
| number of 10/100 Mbit/s M12-ports (D-coded) | 8 |
Show all 157 specifications ↓ Show less ↑152 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, System modification during operation, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5208-0HA00-2AS6 |
|---|---|
| Type designation | XP208 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622394182 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 10
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 2 |
| type of electrical connection: for operator console | 5-pole M12 socket (A-coded) |
| type of electrical connection: for signaling contact | 5-pole M12 plug (B-coded) |
| type of electrical connection: for power supply | 4-pole M12 plug (A-coded) |
| design of the removable storage: C-PLUG | Yes |
| product function / device replacement with replacement of the storage medium | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 15
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 5 W |
| consumed current / 1 / at rated supply voltage / maximum | 0.2 A |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 0.21 A |
| type of electrical connection / 1 / for power supply | 4-pole M12 plug (A-coded) |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 5 A / 60 V |
| ambient conditions ambient temperature: during operation | -40 ... +70 °C |
| ambient conditions ambient temperature: during storage | -40 ... +70 °C |
| ambient conditions ambient temperature: during transport | -40 ... +70 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP65 |
Design, dimensions and weights 7
| design | compact |
|---|---|
| width | 200 mm |
| height | 200 mm |
| depth | 49 mm |
| material / of the enclosure | Aluminum |
| fastening method | ET200pro module carrier |
| wall mounting | Yes |
Product features, product functions, product components / general 5
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
| product function: QoS according to DSCP | Yes |
| product feature: Cut Through switching method | No |
| product feature: Store & Forward switching method | Yes |
Product functions / management, configuration, engineering 32
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: SMTP server | No |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: with IRT / PROFINET IO switch | No |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 1518 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 6
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 13
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: of the PROFINET IO device / is supported / H-Sync forwarding | Yes |
| product function: of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function: passive listening | Yes |
System modification during operation 1
| product function / configuration in RUN via CiR/H-CiR | Yes |
|---|
Product functions / security 6
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: RADIUS client | Yes |
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 5
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: SNTP client | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1 E115352, CSA C22.2 No. 60950-1 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 200.66 kg |
| global warming potential [CO2 eq]: during manufacturing | 61.47 kg |
| global warming potential [CO2 eq]: during operation | 138.92 kg |
| global warming potential [CO2 eq]: after end of life | 0.27 kg |
Product functions / general 4
| MTBF | 67 a |
|---|---|
| reference temperature / for MTBF determination | 40 °C |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 61.47 kg |
|---|
Logistics 6
| Net weight | 0.6 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5208-0HA00-2AS6
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
Quick answers
Questions about the XP208
Which supply voltage is XP208 rated for?
The rated operational voltage of XP208 is 24 V AC.
What is the HS code of XP208 for customs?
The tariff (HS) code on file for XP208 is 85176200.
What is the EAN of XP208?
The EAN (GTIN) of XP208 is 4047622394182.
Where does XP208 ship from, and how fast?
XP208 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
