- Part number
- 6GK5206-2RS00-2AC2
- Model no
- XC206-2G PoE

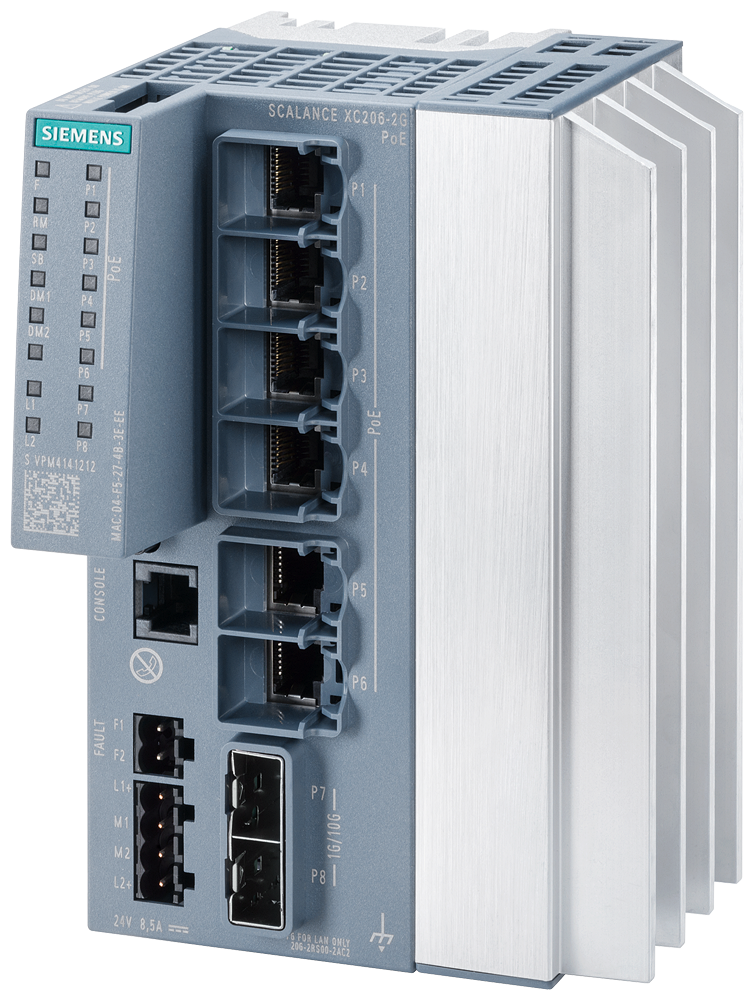

SCALANCE XC206Siemens 6GK5206-2RS00-2AC2 SCALANCE XC206-2G PoE 6-Port Gigabit 120W PoE Managed Switch
Siemens SCALANCE XC206-2G PoE managed Gigabit switch, 6x RJ45 PoE (120W), 2x SFP+, 24V DC, IEC 62443-4-2 certified.
Description
About the XC206-2G PoE
About the XC206-2G PoE
The Siemens SCALANCE 6GK5206-2RS00-2AC2 (XC206-2G PoE) is a managed Gigabit PROFINET switch with six 10/100/1000 Mbit/s RJ45 PoE ports (four IEEE 802.3at 30 W, two 802.3bt 60 W) and two 10 Gbit/s SFP+ slots. It delivers up to 120 W of PoE power distributed across all ports from a redundant 24 V DC supply, and is certified to IEC 62443-4-2.
Certifications & Standards
- CE
- KC
- RCM
- ATEX
- UKEX
- IECEx
- CCC
- FM
- EN 50121-4
- RoHS
Selection Notes
The 6GK5206-2RS00-2AC2 runs its PoE budget from a 24 V DC infeed and delivers 120 W across all six PoE ports, so it fits a cell already standardized on 24 V control power where the switch feeds cameras or wireless access points alongside the DIN-rail controller. Two 802.3bt ports at 60 W each cover high-draw PTZ cameras or PoE lighting that a 802.3at-only switch cannot power. Choose the 54 V variant instead when the plant runs a 54 V infeed or when the combined PoE draw needs the larger 240 W budget that voltage enables; both share the same port count, SFP+ uplinks and PROFINET conformity class B.
Applications
Machine-vision camera rings, PoE-powered access points, and mixed Gigabit/PoE device groups on a 24 V DC control cabinet supply.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XC206-2G PoE |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 3
| number of electrical connections: for network components or terminal equipment | 6; RJ45 |
|---|---|
| number of 10/100/1000 Mbit/s RJ45 ports: with securing collar | 4 PoE ports according to IEEE 802.3at (30 W), 2 PoE ports according to IEEE 802.3bt (60 W) |
| number of electrical connections: for SFP | 2 |
Show all 171 specifications ↓ Show less ↑165 more values in Identification, Interfaces / for communication / plug-in, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, System modification during operation, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / marine classification, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Environment General Product Approval, Logistics.
Identification 10
| Part number | 6GK5206-2RS00-2AC2 |
|---|---|
| Type designation | XC206-2G PoE |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622706237 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / for communication / plug-in 1
| number of electrical connections: for SFP+ | 2; SFPs with 1000 Mbit/s or 10,000 Mbit/s possible; 100 Mbit/s with SFP991- 1(LD) A possible |
|---|
Interfaces / other 8
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| type of electrical connection: for operator console | RJ11 |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 4-pole terminal block |
| design of the removable storage: C-PLUG | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 9
| product component / connection for redundant voltage supply | Yes |
|---|---|
| supplied active power / of PSE / with PoE: total / maximum | 144 W |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 18 W |
| supply voltage / 1 / voltage range | 19.2 ... 31.2 |
| consumed current / 1 / maximum | 6 A |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 15 A / 125 V |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: note | installation position and SFPs used during the operation have to be considered (see manual) |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 10
| design | compact |
|---|---|
| width | 100 mm |
| height | 147 mm |
| depth | 125 mm |
| product feature / conformal coating | No |
| material / of the enclosure | Polycarbonate (PC-GF10) / pressure die cast aluminum |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
Product features, product functions, product components / general 5
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
| product function: QoS according to DSCP | Yes |
| product feature: Cut Through switching method | No |
| product feature: Store & Forward switching method | Yes |
Product functions / management, configuration, engineering 31
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: SMTP server | No |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 10240 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 6
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / redundancy 15
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: of the PROFINET IO device / is supported / H-Sync forwarding | Yes |
| product function: of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function: passive listening | Yes |
| protocol / is supported: LACP | Yes |
System modification during operation 1
| product function / configuration in RUN via CiR/H-CiR | Yes |
|---|
Product functions / security 6
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: RADIUS client | Yes |
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 6
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: SNTP client | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
| protocol / is supported: IEEE 1588 profile default | Yes |
Standards, specifications, approvals 6
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| product conformity / according to EMC-guideline | 2014/30/EU |
| standard: for EMC interference emission | EN 61000-6-4, EN 50121-4 |
| standard: for immunity to EMC | EN 61000-6-2, EN 50121-4 |
Standards, specifications, approvals / hazardous environments 5
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 3
| certificate of suitability: railway application in accordance with EN 50121-4 | Yes |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / marine classification 9
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
|---|---|
| Marine classification association: French marine classification society (BV) | Yes |
| Marine classification association: Chinese Classification Society (CCS) | Yes |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Korean Register of Shipping (KRS) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | Yes |
| Marine classification association: Nippon Kaiji Kyokai (NK) | Yes |
| Marine classification association: Polski Rejestr Statkow (PRS) | Yes |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 942.3 kg |
| global warming potential [CO2 eq]: during manufacturing | 63.42 kg |
| global warming potential [CO2 eq]: during operation | 878.11 kg |
| global warming potential [CO2 eq]: after end of life | 0.76 kg |
Product functions / general 3
| MTBF | 42 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 63.42 kg |
|---|
Environment General Product Approval 2
| China RoHS Miscellaneous | For use in hazard- |
|---|---|
| General Product Approval EMV | ous locations |
Logistics 7
| Net weight | 0.52 kg |
|---|---|
| Package dimensions | 125 × 60 × 147 mm |
| Country of origin | DE |
| Shipping weight | 1.02 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5206-2RS00-2AC2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- CCC / for hazardous zone according to GB standard
- FM registration
- railway application in accordance with EN 50121-4
- RoHS conformity
Quick answers
Questions about the XC206-2G PoE
Which supply voltage is XC206-2G PoE rated for?
The rated operational voltage of XC206-2G PoE is 24 V AC.
What is the HS code of XC206-2G PoE for customs?
The tariff (HS) code on file for XC206-2G PoE is 85176200.
What is the EAN of XC206-2G PoE?
The EAN (GTIN) of XC206-2G PoE is 4047622706237.
Where does XC206-2G PoE ship from, and how fast?
XC206-2G PoE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Siemens SCALANCE XC206
- Brand
- Siemens
- Series
- SCALANCE XC206
