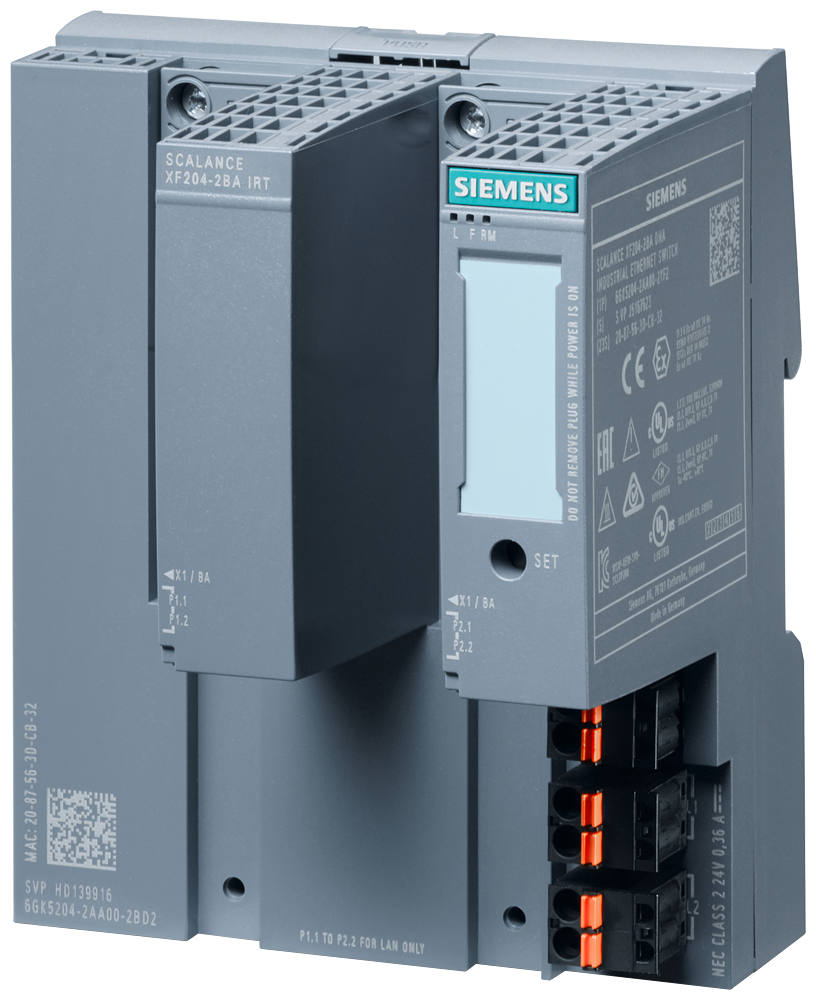

SCALANCE XF204Siemens 6GK5204-2AA00-2BD2 SCALANCE XF204-2BA IRT 4-Port Managed PROFINET Industrial Ethernet Switch
Siemens SCALANCE XF204-2BA IRT 4-port PROFINET IRT managed switch, redundant 24V DC, integrated redundancy manager, IP20.
Description
About the XF204-2BA IRT
About the XF204-2BA IRT
The Siemens SCALANCE 6GK5204-2AA00-2BD2 (XF204-2BA IRT) is a managed PROFINET IRT switch with four 10/100 Mbit/s ports and two bus adapter interfaces for fiber or copper media modules. It runs PROFINET conformity class C with network load class II and integrates a redundancy manager for MRP, HRP and PRP ring topologies, powered from a redundant 24 V DC supply.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- ULhazloc
- CCC
Selection Notes
The 6GK5204-2AA00-2BD2 is Siemens' compact 4-port PROFINET IRT switch for machine-level segments where isochronous real-time traffic needs conformity class C support - choose it over a standard RT switch (conformity class B) when the automation cell runs cyclic PROFINET IRT with a fixed communication cycle. The two bus adapter interfaces let the port media, copper or fiber, be selected per interface module instead of being fixed at the switch level, useful when mixing a fiber backbone with copper drops on the same unit. Redundant 24 V DC inputs and the integrated redundancy manager (MRP, HRP, PRP) support a fail-safe ring topology without an external controller.
Applications
Machine-level PROFINET IRT segments in motion-control cells, packaging lines and robotics cabinets where a compact 4-port switch with ring redundancy sits close to the drives.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XF204-2BA IRT |
Transfer rate 1
| transfer rate | 10, 100 Mbit/s |
|---|
Interfaces / for communication / integrated 1
| number of electrical connections: for network components or terminal equipment | 0 |
|---|
Show all 132 specifications ↓ Show less ↑128 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / DHCP, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / marine classification, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Declaration of Con- Manufacturer Declara-, Logistics.
Identification 10
| Part number | 6GK5204-2AA00-2BD2 |
|---|---|
| Type designation | XF204-2BA IRT |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622474112 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 7
| number of electrical connections: for signaling contact | 1 |
|---|---|
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 2-pole terminal block |
| design of the removable storage: C-PLUG | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 9
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 2.4 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 0.1 A |
| type of electrical connection / 1 / for power supply | 2-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 2.5 A (cannot be replaced by user) |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 8
| design | compact |
|---|---|
| width | 100 mm |
| height | 117 mm |
| depth | 74 mm |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | No |
| fastening method: S7-1500 rail mounting | No |
Product features, product functions, product components / general 2
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
Product functions / management, configuration, engineering 25
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: port mirroring | No |
| product function: multiport mirroring | No |
| product function: with IRT / PROFINET IO switch | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | C |
| network load class / according to PROFINET | II |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: BOOTP | No |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 4
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
Product functions / DHCP 1
| product function: DHCP client | Yes |
|---|
Product functions / redundancy 9
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol for Planned Duplication (MRPD) | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function: passive listening | Yes |
Product functions / security 1
| protocol / is supported: SSH | Yes |
|---|
Product functions / time 3
| product function: SICLOCK support | Yes |
|---|---|
| protocol / is supported: NTP | No |
| protocol / is supported: SNTP | Yes |
Standards, specifications, approvals 9
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1 | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4:2001 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2, EN 61000-6-4 |
| standard: for safety / from CSA and UL | UL 61010-1, CAN/CSA C22.2 No. 61010-1 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 3
| certificate of suitability: railway application in accordance with EN 50155 | No |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / marine classification 10
| certificate of suitability / shipbuilding approval / note | Certifications marked 'No' are currently under renewal. |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Chinese Classification Society (CCS) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Korean Register of Shipping (KRS) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
| Marine classification association: Nippon Kaiji Kyokai (NK) | No |
| Marine classification association: Polski Rejestr Statkow (PRS) | No |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 95.76 kg |
| global warming potential [CO2 eq]: during manufacturing | 20.21 kg |
| global warming potential [CO2 eq]: during operation | 75.23 kg |
| global warming potential [CO2 eq]: after end of life | 0.32 kg |
Product functions / general 2
| warranty period | 5 a |
|---|---|
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 20.21 kg |
|---|
Declaration of Con- Manufacturer Declara- 2
| formity tion | For use in hazard- |
|---|---|
| General Product Approval EMV China RoHS | ous locations |
Logistics 6
| Net weight | 0.3 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
