- Part number
- 6GK5124-0BA00-3AR3
- Model no
- XR124

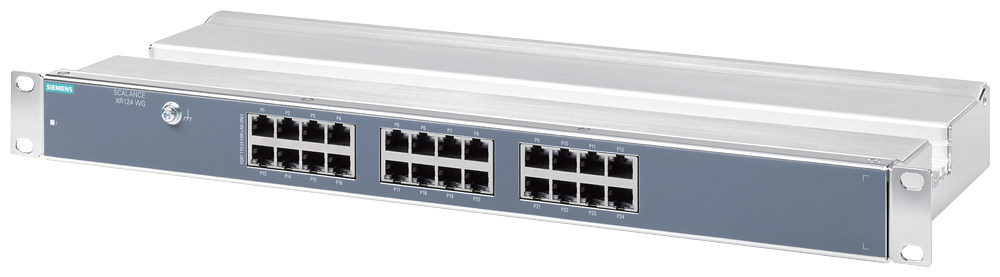

SCALANCE XR124Siemens 6GK5124-0BA00-3AR3 SCALANCE XR124WG 19-Inch 24-Port 230V AC Ethernet Switch
Siemens 6GK5124-0BA00-3AR3: 19-inch 24-port 10/100 Mbit/s switch, 240 V AC supply, IP30.
Description
About the XR124
About the XR124
The Siemens SCALANCE XR124WG 6GK5124-0BA00-3AR3 is an unmanaged 19-inch rack switch with 24x 10/100 Mbit/s RJ45 ports, powered from a redundant 240 V AC input over an 85-264 V range. At 1U height with a metal enclosure and IP30, it suits server rooms and comms racks running standard mains power rather than a DC cabinet bus.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- RoHS
- EPD
Selection Notes
This 240 V AC variant plugs straight into standard mains in a server room or comms rack, unlike the 24 V DC XR124WG sibling that needs a cabinet DC bus already in place. The internal AC power supply adds 0.6 kg and 50 mm of depth over the DC version, so confirm rack clearance before ordering. No ATEX, UKEX, or IECEx hazardous-location approvals are listed for this AC variant, so pick the DC XR124WG or the DIN-rail XC124 for Ex-rated cabinets.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XR124 |
Transfer rate 1
| transfer rate | 10, 100 Mbit/s |
|---|
Interfaces / for communication / integrated 2
| number of electrical connections: for network components or terminal equipment | 24; RJ45 |
|---|---|
| number of 10/100 Mbit/s RJ45 ports | 24 |
Show all 74 specifications ↓ Show less ↑69 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / redundancy, Standards, specifications, approvals, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, General Product Approval EMV Test Certificates, Logistics.
Identification 10
| Part number | 6GK5124-0BA00-3AR3 |
|---|---|
| Type designation | XR124 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622485392 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 2
| number of electrical connections: for power supply | 1 |
|---|---|
| type of electrical connection: for power supply | 2-pole terminal block |
Supply voltage, current consumption, power loss 10
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage supply / redundant power supply unit | No |
| type of voltage / 1 / of the supply voltage | AC |
| supply voltage / 1 / rated value | 240 V |
| power loss [W] / 1 / rated value | 7.5 W |
| supply voltage / 1 / voltage range | 85 ... 264 |
| consumed current / 1 / maximum | 0.075 A |
| type of electrical connection / 1 / for power supply | 2-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 4 A / 250 V |
Ambient conditions 5
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP30 |
Design, dimensions and weights 9
| design | 19-inch rack |
|---|---|
| width | 482.6 mm |
| height | 43.6 mm |
| depth | 177 mm |
| fastening method: 19-inch installation | Yes |
| fastening method: 35 mm DIN-rail mounting | No |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | No |
| fastening method: S7-1500 rail mounting | No |
Product features, product functions, product components / general 1
| cascading in cases of star topology | any (depending only on signal propagation time) |
|---|
Product functions / management, configuration, engineering 3
| product function: multiport mirroring | No |
|---|---|
| product function: CoS | Yes |
| product function: switch-managed | No |
Product functions / redundancy 2
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
|---|---|
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class B) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
Standards, specifications, approvals / other 3
| certificate of suitability: railway application in accordance with EN 50155 | No |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 315.14 kg |
| global warming potential [CO2 eq]: during manufacturing | 109.07 kg |
| global warming potential [CO2 eq]: during operation | 205.52 kg |
| global warming potential [CO2 eq]: after end of life | 0.55 kg |
Product functions / general 2
| warranty period | 5 a |
|---|---|
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 109.07 kg |
|---|
General Product Approval EMV Test Certificates 1
| China RoHS Type Test Certific- | ates/Test Report |
|---|
Logistics 7
| Net weight | 3 kg |
|---|---|
| Package dimensions | 124 × 90 × 125 mm |
| Country of origin | DE |
| Shipping weight | 3.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5124-0BA00-3AR3
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- RoHS conformity
- Environmental Product Declaration
Quick answers
Questions about the XR124
Which supply voltage is XR124 rated for?
The rated operational voltage of XR124 is 240 V AC.
What is the HS code of XR124 for customs?
The tariff (HS) code on file for XR124 is 85176200.
What is the EAN of XR124?
The EAN (GTIN) of XR124 is 4047622485392.
Where does XR124 ship from, and how fast?
XR124 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
