- Part number
- 6GK5108-2QS00-3AR3
- Model no
- XR108-2PoE WG

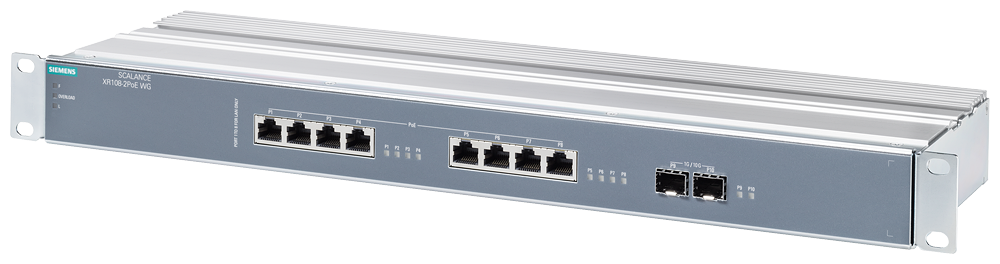

SCALANCE XR108Siemens 6GK5108-2QS00-3AR3 SCALANCE XR108-2PoE WG 19-Inch 8-Port PoE 2x10GE SFP+ Switch
Siemens 6GK5108-2QS00-3AR3: 19-inch rack switch, 8x PoE Gigabit ports, 2x 10GE SFP+, 200 W PoE total.
Description
About the XR108-2PoE WG
About the XR108-2PoE WG
The Siemens SCALANCE XR108-2PoE WG 6GK5108-2QS00-3AR3 is an unmanaged 19-inch rack switch with 8x Gigabit RJ45 PoE ports and 2x SFP+ ports for 1 or 10 Gbit/s uplinks. PoE output reaches 60 W per port and 200 W total under a single 240 V AC supply (85-264 V range). At 1U height and IP30, it's built for enclosed rack rooms rather than field cabinets.
Certifications & Standards
- CE
- UKCA
- KC
- RCM
- RoHS
- EPD
Selection Notes
This is the rack-mount, PoE, 10 Gbit/s-uplink member of the SCALANCE X108 family, built for server-room or comms-closet installs where a 19-inch frame and 240 V AC mains are standard, unlike the DIN-rail XCM108PoE variants that run on 24/54 V DC. The 200 W total PoE budget across 8 ports, versus 120 W on the DIN-rail siblings, suits denser PoE loads such as multiple PTZ cameras or wireless access points on one switch. Choose the 24 V DC rack switch instead if the installation only needs plain uplink ports without PoE and runs on a DC cabinet bus.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XR108-2PoE WG |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 4
| number of electrical connections: for network components or terminal equipment | 8; RJ45 |
|---|---|
| number of electrical connections: for Power-over-Ethernet / for network components or terminal equipment | 8 |
| number of 10/100/1000 Mbit/s RJ45 ports: with PoE | 8 |
| number of electrical connections: for SFP+ | 2 |
Show all 79 specifications ↓ Show less ↑72 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / redundancy, Standards, specifications, approvals, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5108-2QS00-3AR3 |
|---|---|
| Type designation | XR108-2PoE WG |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622727409 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 2
| number of electrical connections: for power supply | 1 |
|---|---|
| type of electrical connection: for power supply | IEC plug C14 |
Supply voltage, current consumption, power loss 10
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage supply / redundant power supply unit | No |
| supplied active power / of PSE / with PoE: per port / maximum | 60 W |
| supplied active power / of PSE / with PoE: total / maximum | 200 W |
| type of voltage / 1 / of the supply voltage | AC |
| supply voltage / 1 / rated value | 240 V |
| supply voltage / 1 / voltage range | 85 ... 264 |
| consumed current / 1 / maximum | 4 A |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 4 A / 250 V |
Ambient conditions 5
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP30 |
Design, dimensions and weights 11
| design | 19-inch rack |
|---|---|
| number of modular height units / relating to 19-inch cabinet | 1 |
| width | 482.6 mm |
| height | 43.6 mm |
| depth | 133 mm |
| material / of the enclosure | metal |
| fastening method: 19-inch installation | Yes |
| fastening method: 35 mm DIN-rail mounting | No |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | No |
| fastening method: S7-1500 rail mounting | No |
Product features, product functions, product components / general 1
| cascading in cases of star topology | any (depending only on signal propagation time) |
|---|
Product functions / management, configuration, engineering 4
| product function: multiport mirroring | No |
|---|---|
| product function: CoS | Yes |
| product function: switch-managed | No |
| PROFINET conformity class | A |
Product functions / redundancy 2
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
|---|---|
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
Standards, specifications, approvals 7
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 62368-1, CSA C22.2 No. 62368-1 |
Standards, specifications, approvals / other 3
| certificate of suitability: railway application in accordance with EN 50155 | No |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 546.668 kg |
| global warming potential [CO2 eq]: during manufacturing | 80 kg |
| global warming potential [CO2 eq]: during operation | 465 kg |
| global warming potential [CO2 eq]: after end of life | 0.418 kg |
Product functions / general 3
| MTBF | 47 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 2
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 80 kg |
|---|---|
| Environment General Product Approval | Miscellaneous |
Logistics 7
| Net weight | 3 kg |
|---|---|
| Package dimensions | 109 × 120 × 117 mm |
| Country of origin | DE |
| Shipping weight | 3.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5108-2QS00-3AR3
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- KC approval
- Regulatory Compliance Mark (RCM)
- RoHS conformity
- Environmental Product Declaration
Quick answers
Questions about the XR108-2PoE WG
Which supply voltage is XR108-2PoE WG rated for?
The rated operational voltage of XR108-2PoE WG is 240 V AC.
What is the HS code of XR108-2PoE WG for customs?
The tariff (HS) code on file for XR108-2PoE WG is 85176200.
What is the EAN of XR108-2PoE WG?
The EAN (GTIN) of XR108-2PoE WG is 4047622727409.
Where does XR108-2PoE WG ship from, and how fast?
XR108-2PoE WG ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
