- Part number
- 6GK5108-0RA00-2AC2
- Model no
- XCM108PoE (G)

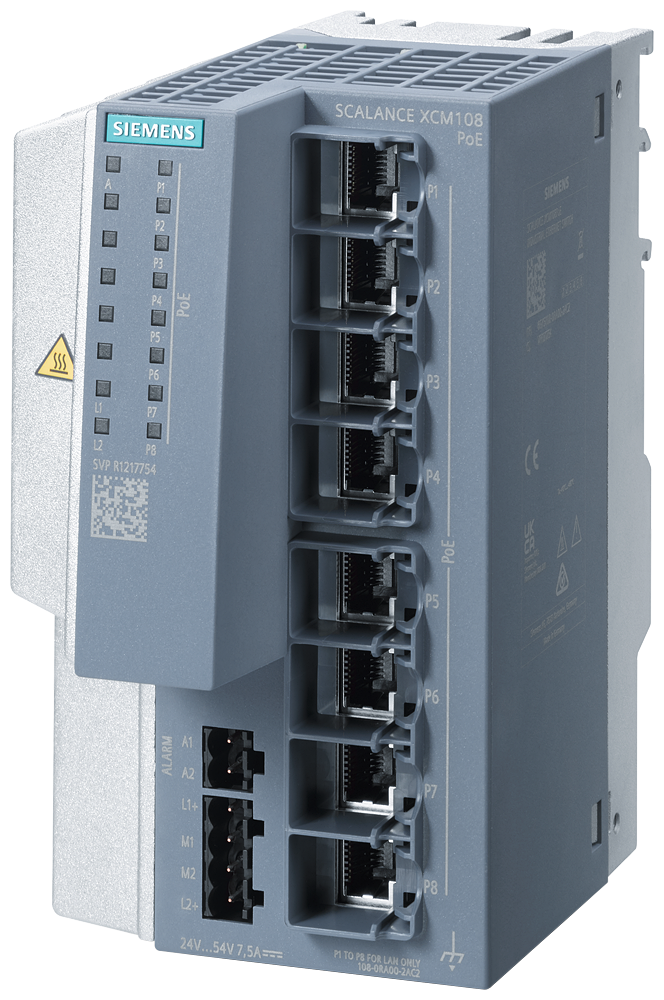

SCALANCE XCSiemens 6GK5108-0RA00-2AC2 SCALANCE XC XCM108PoE 8-Port Gigabit PoE Industrial Ethernet Switch
Siemens 6GK5108-0RA00-2AC2: unmanaged 8-port Gigabit PoE switch, 120 W PoE budget, redundant 24/54 V DC.
Description
About the XCM108PoE (G)
About the XCM108PoE (G)
The Siemens SCALANCE XCM108PoE 6GK5108-0RA00-2AC2 is an unmanaged 8-port Gigabit Ethernet switch for PROFINET Class A networks. Every RJ45 port runs 10/100/1000 Mbit/s and supplies Power over Ethernet under IEEE 802.3at, up to 30 W per port and 120 W total. Two DC power inputs, rated 24 V and 54 V, both accept a 19.2-55 V range, so a single supply failure doesn't take the switch down.
Certifications & Standards
- CE
- UKCA
- RCM
- CCC-Ex
- EN 50121-4
- RoHS
- ABS
- BV
- CCS
- DNV
Selection Notes
This Gigabit variant replaces the Fast Ethernet XCM108PoE (FE) where an uplink or a connected camera needs more than 100 Mbit/s, while keeping the same 120 W PoE budget and IP20 enclosure. The dual 19.2-55 V DC inputs mean either the 24 V or the 54 V rail alone can carry the switch, useful when standardizing on a 48-54 V cabinet bus instead of 24 V. Choose the SFP-equipped XCM108PoE (6 x Gbit PoE, 2xSFP) sibling instead if fiber uplink or 10 Gbit/s connectivity is needed.
Applications
Gigabit PoE ports suit PROFINET drives, high-resolution IP cameras, and wireless access points that saturate a 100 Mbit/s link. The -40 to +60 °C range and IP20 rating fit cabinet or enclosed-panel mounting.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XCM108PoE (G) |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 2
| number of electrical connections: for network components or terminal equipment | 8; RJ45 |
|---|---|
| number of 10/100/1000 Mbit/s RJ45 ports: with securing collar | PoE ports according to IEEE802.3at (30 W) |
Show all 89 specifications ↓ Show less ↑84 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / redundancy, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / marine classification, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5108-0RA00-2AC2 |
|---|---|
| Type designation | XCM108PoE (G) |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623030423 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 6
| number of electrical connections: for signaling contact | 1 |
|---|---|
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 4-pole terminal block |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 19
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 12 W |
| supply voltage / 1 / voltage range | 19.2 ... 55 |
| consumed current / 1 / maximum | 7.5 A |
| type of electrical connection / 1 / for power supply | 4-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 2,5 A / 125 V |
| type of voltage / 2 / of the supply voltage | DC |
| supply voltage / 2 / rated value | 54 V |
| power loss [W] / 2 / rated value | 10 W |
| supply voltage / 2 / voltage range | 19.2 ... 55 |
| consumed current / 2 / maximum | 2.5 A |
| ambient conditions ambient temperature: during operation | -40 ... +60 °C |
| ambient conditions ambient temperature: during storage | -40 ... +85 °C |
| ambient conditions ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 9
| design | compact |
|---|---|
| width | 80 mm |
| height | 147 mm |
| depth | 125 mm |
| material / of the enclosure | Polycarbonate (PC-GF10) |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
Product features, product functions, product components / general 1
| number of automatically learnable MAC addresses | 2048 |
|---|
Product functions / management, configuration, engineering 4
| product function: multiport mirroring | No |
|---|---|
| product function: CoS | Yes |
| product function: switch-managed | No |
| PROFINET conformity class | A |
Product functions / redundancy 2
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
|---|---|
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
Standards, specifications, approvals 4
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 |
Standards, specifications, approvals / hazardous environments 1
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
|---|
Standards, specifications, approvals / other 3
| certificate of suitability: railway application in accordance with EN 50121-4 | Yes |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / marine classification 9
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
|---|---|
| Marine classification association: French marine classification society (BV) | Yes |
| Marine classification association: Chinese Classification Society (CCS) | Yes |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Korean Register of Shipping (KRS) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | Yes |
| Marine classification association: Nippon Kaiji Kyokai (NK) | Yes |
| Marine classification association: Polski Rejestr Statkow (PRS) | Yes |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 351.9 kg |
| global warming potential [CO2 eq]: during manufacturing | 23.6 kg |
| global warming potential [CO2 eq]: during operation | 328 kg |
| global warming potential [CO2 eq]: after end of life | 0.3 kg |
Product functions / general 2
| warranty period | 5 a |
|---|---|
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 2
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 23.6 kg |
|---|---|
| Environment General Product Approval | Miscellaneous |
Logistics 7
| Net weight | 0.52 kg |
|---|---|
| Package dimensions | 109 × 80 × 117 mm |
| Country of origin | DE |
| Shipping weight | 1.02 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5108-0RA00-2AC2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- Regulatory Compliance Mark (RCM)
- CCC / for hazardous zone according to GB standard
- railway application in accordance with EN 50121-4
- RoHS conformity
- American Bureau of Shipping Europe Ltd. (ABS)
- French marine classifica
Quick answers
Questions about the XCM108PoE (G)
Which supply voltage is XCM108PoE (G) rated for?
The rated operational voltage of XCM108PoE (G) is 24 V AC.
What is the HS code of XCM108PoE (G) for customs?
The tariff (HS) code on file for XCM108PoE (G) is 85176200.
What is the EAN of XCM108PoE (G)?
The EAN (GTIN) of XCM108PoE (G) is 4047623030423.
Where does XCM108PoE (G) ship from, and how fast?
XCM108PoE (G) ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
