- Part number
- 6GK5102-1GS00-2AC2
- Model no
- XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download .
- CE

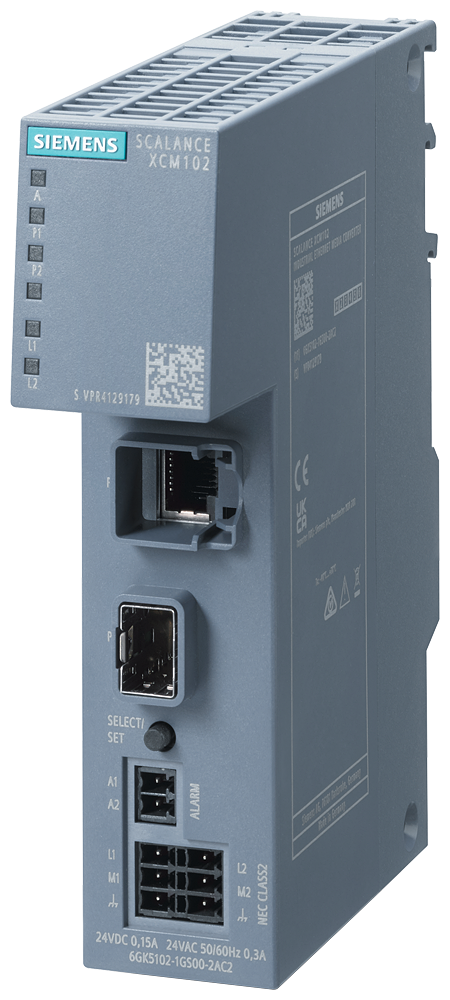

SCALANCE XCSiemens 6GK5102-1GS00-2AC2 SCALANCE XCM102 Gigabit Media Converter RJ45 SFP Industrial Ethernet Switch
SCALANCE XCM102 media converter, 1x Gigabit RJ45 + 1x SFP, redundant 24 V DC/AC supply, IP20.
Description
About the XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download .
About the XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download .
The Siemens 6GK5102-1GS00-2AC2 SCALANCE XCM102 is an unmanaged Industrial Ethernet media converter with one 100/1000 Mbit/s RJ45 port and one 100/1000 Mbit/s SFP slot, plus a signaling contact and redundant 24 V DC and 24 V AC power inputs. It is rated IP20 for -40 to +70 degC operation and mounts on 35 mm DIN, S7-300, or S7-1500 rail.
Certifications & Standards
- CE
- ABS
- DNV
- GL
- LRS
- PRS
- RINA
- CCS
- EPD
Selection Notes
The redundant 24 V DC and 24 V AC power inputs mean a failure of one feed does not drop the fiber-to-copper link, which is why this converter carries the marine classification set (ABS, DNV, GL, LRS, PRS, RINA, CCS) that plain industrial switches in this catalog do not. The SFP slot accepts either a 100 Mbit/s or 1000 Mbit/s transceiver, so reach and fiber type are set by the SFP module chosen rather than by the converter itself. The signaling contact reports link status back to a control system, useful when the converter sits in an unmanned enclosure.
Specification
Full specification
General 2
| product type designation | XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download . |
|---|---|
| product brand name | SCALANCE |
Transfer rate 1
| transfer rate | 100 Mbit/s, 1000 |
|---|
Interfaces 9
| number of electrical/optical connections / for network components or terminal equipment / maximum | 2 |
|---|---|
| number of electrical connections: for network components or terminal equipment | 1 |
| number of electrical connections: for SFP / plug-in | 1; 100 Mbps and 1000 Mbps SFP plug-in transceiver usable |
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 1 |
| number of electrical connections: for redundant voltage supply | 1 |
| type of electrical connection: for network components or terminal equipment | RJ45 port |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 2 x 3-pole terminal block |
Show all 71 specifications ↓ Show less ↑59 more values in Identification, Signal inputs/outputs, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK5102-1GS00-2AC2 |
|---|---|
| Type designation | XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download . |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623043034 |
| ETIM class | EC001467 |
| eCl@ss | 19170132 |
Signal inputs/outputs 2
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
|---|---|
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 11
| supply voltage / 1 / rated value | 24 V |
|---|---|
| type of voltage / 1 / of the supply voltage | DC |
| consumed current / 1 / at rated supply voltage / maximum | 0.15 A |
| power loss [W] / 1 / rated value | 2.5 W |
| supply voltage / 2 / rated value | 24 V |
| type of voltage / 2 / of the supply voltage | AC |
| consumed current / 2 / at rated supply voltage / maximum | 0.3 A |
| power loss [W] / 2 / rated value | 5 W |
| product component / fusing at power supply input | Yes |
| consumed current: maximum | dependent on the use of SFP plug-in transceiver |
| power loss [W]: maximum | dependent on the use of SFP plug-in transceiver |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: note | max. operating temperature dependent on the use of SFP plug-in transceiver |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 8
| design | compact |
|---|---|
| width | 35 mm |
| height | 147 mm |
| depth | 123 mm |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
| fastening method: wall mounting | Yes |
Standards, specifications, approvals 10
| certificate of suitability: CE marking | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Germanische Lloyd (GL) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | Yes |
| Marine classification association: Polski Rejestr Statkow (PRS) | Yes |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
| Marine classification association: Chinese Classification Society (CCS) | Yes |
| MTBF | 152 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 49.64 kg |
| global warming potential [CO2 eq]: during manufacturing | 8.3 kg |
| global warming potential [CO2 eq]: during operation | 41 kg |
| global warming potential [CO2 eq]: after end of life | 0.34 kg |
Logistics 7
| Net weight | 0.52 kg |
|---|---|
| Package dimensions | 124 × 60 × 125 mm |
| Country of origin | DE |
| Shipping weight | 1.02 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5102-1GS00-2AC2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CE marking
- American Bureau of Shipping Europe Ltd. (ABS)
- Det Norske Veritas (DNV)
- Germanische Lloyd (GL)
- Lloyds Register of Shipping (LRS)
- Polski Rejestr Statkow (PRS)
- Royal Institution of Naval Architects (RINA)
- Chinese Classification Society
Quick answers
Questions about the XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download .
What is the rated current of XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download .?
The rated current of XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download . is 0.15 A.
Which supply voltage is XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download . rated for?
The rated operational voltage of XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download . is 24 V AC.
What is the HS code of XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download . for customs?
The tariff (HS) code on file for XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download . is 85176200.
What is the EAN of XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download .?
The EAN (GTIN) of XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download . is 4047623043034.
Where does XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download . ship from, and how fast?
XCM102 SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download . ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
