- Part number
- 6GK5008-0GA10-1AB2
- Model no
- XB008G
Critical stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- RoHS
- ATEX

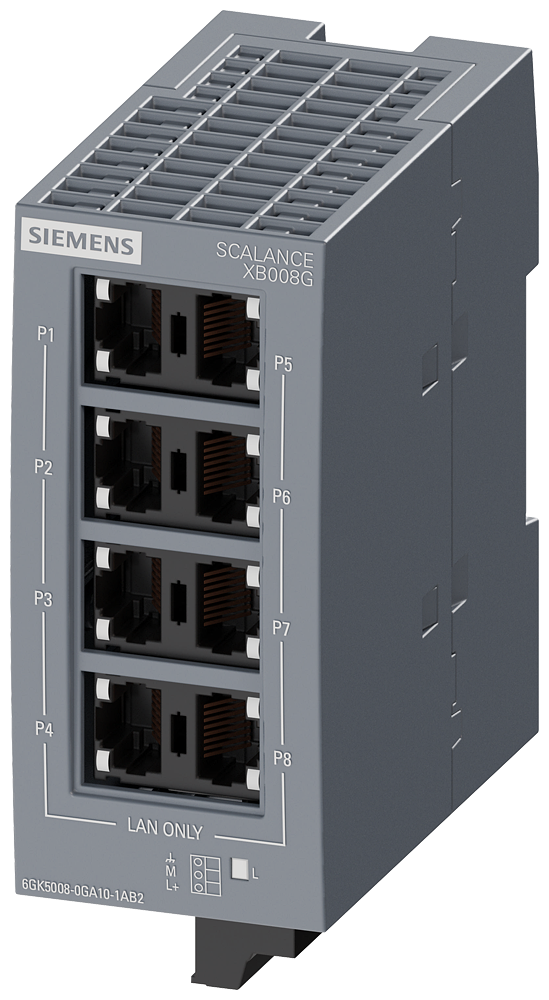

SCALANCE XB008Siemens 6GK5008-0GA10-1AB2 SCALANCE XB008G 8-Port Gigabit Ethernet Switch
SCALANCE XB008G unmanaged switch, 8x gigabit RJ45, 24V DC, ATEX/IECEx rated, IP20.
Description
About the XB008G
About the XB008G
The Siemens 6GK5008-0GA10-1AB2 SCALANCE XB008G is an unmanaged Industrial Ethernet switch with 8 RJ45 ports supporting 10/100/1000 Mbit/s, powered from a 24 V DC supply (19.2-28.8 V) drawing up to 0.52 A. It is rated IP20, PROFINET conformity class A, and supports Parallel Redundancy Protocol (PRP).
Certifications & Standards
- CE
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- CCC
- FM registration
- RoHS
Selection Notes
As an unmanaged switch, the XB008G has no VLAN, port-mirroring, or diagnostic web interface - pick a managed SCALANCE X-series switch instead if the network needs segmentation or SNMP monitoring; this variant is for straightforward star or line topology expansion where plug-and-forward is enough. ATEX, UKEX, IECEx, and CCC-Ex approvals extend its use into classified hazardous areas that a non-Ex-rated switch could not enter, and PRP support lets it participate in a redundant network ring without a separate media-redundancy protocol license. The 0.188 kg weight and 45 mm width keep the panel footprint small for an 8-port gigabit device.
Applications
Fits small star or line Ethernet topologies in control cabinets, including hazardous-area installations (ATEX/IECEx/CCC-Ex zones) needing gigabit connectivity without managed-switch complexity.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XB008G |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 2
| number of electrical connections: for network components or terminal equipment | 8; RJ45 |
|---|---|
| number of 100 Mbit/s SC ports: for multimode | 0 |
Show all 75 specifications ↓ Show less ↑70 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product functions / management, configuration, engineering, Product functions / redundancy, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5008-0GA10-1AB2 |
|---|---|
| Type designation | XB008G |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622501108 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 2
| number of electrical connections: for power supply | 1 |
|---|---|
| type of electrical connection: for power supply | 3-pole terminal block |
Supply voltage, current consumption, power loss 8
| type of voltage / 1 / of the supply voltage | DC |
|---|---|
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 12.5 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 0.52 A |
| type of electrical connection / 1 / for power supply | 3-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 0,6 A / 60 V |
Ambient conditions 5
| ambient temperature: during operation | -10 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 7
| design | Box |
|---|---|
| width | 45 mm |
| height | 100 mm |
| depth | 87 mm |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: S7-1500 rail mounting | No |
Product functions / management, configuration, engineering 4
| product function: multiport mirroring | No |
|---|---|
| product function: CoS | Yes |
| product function: switch-managed | No |
| PROFINET conformity class | A |
Product functions / redundancy 2
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
|---|---|
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
Standards, specifications, approvals 7
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class B) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
Standards, specifications, approvals / hazardous environments 5
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 123.2298 kg |
| global warming potential [CO2 eq]: during manufacturing | 6.94 kg |
| global warming potential [CO2 eq]: during operation | 116 kg |
| global warming potential [CO2 eq]: after end of life | 0.217 kg |
Product functions / general 3
| MTBF | 112 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 3
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 6.94 kg |
|---|---|
| Environment General Product Approval | Declaration of Con- formity For use in hazard- |
| General Product Approval EMV China RoHS | ous locations |
Logistics 7
| Net weight | 0.334 kg |
|---|---|
| Package dimensions | 125 × 60 × 147 mm |
| Country of origin | DE |
| Shipping weight | 0.834 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5008-0GA10-1AB2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- ATEX
- CE marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- UKEX
- IECEx
- CCC / for hazardous zone according to GB standard
- FM registration
- RoHS conformity
Quick answers
Questions about the XB008G
What is the rated current of XB008G?
The rated current of XB008G is 0.52 A.
What motor power is XB008G rated for?
The rated motor power of XB008G is 0.0125 kW.
What is the HS code of XB008G for customs?
The tariff (HS) code on file for XB008G is 85176200.
What is the EAN of XB008G?
The EAN (GTIN) of XB008G is 4047622501108.
Where does XB008G ship from, and how fast?
XB008G ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
