- Part number
- 6GK5008-0BA10-1AB2
- Model no
- XB008
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- ATEX

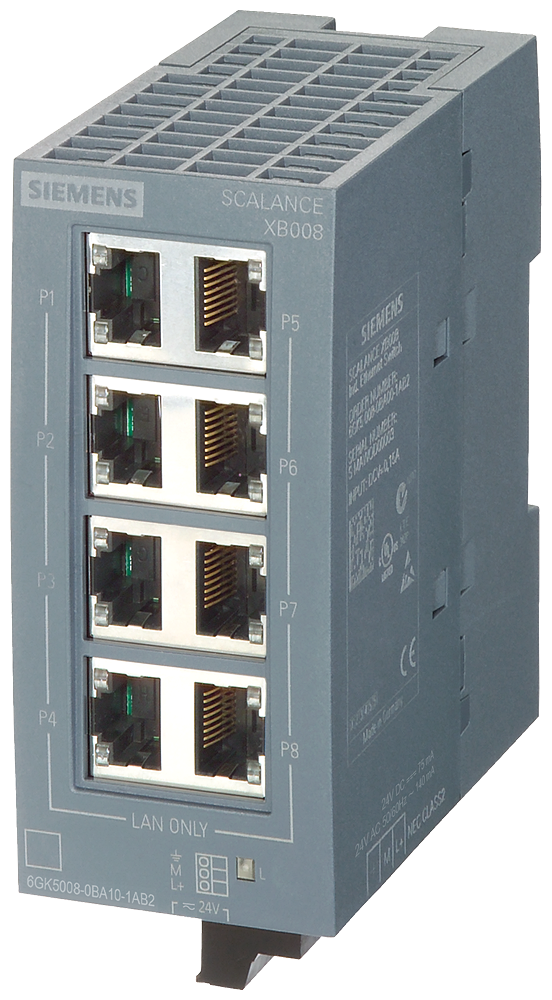

SCALANCE XB008Siemens 6GK5008-0BA10-1AB2 SCALANCE XB008 Unmanaged 8-Port Industrial Ethernet Switch
Siemens SCALANCE XB008 unmanaged 8-port 10/100 Mbit/s industrial Ethernet switch, IP20, 24V DC/AC, PRP support.
Description
About the XB008
About the XB008
The Siemens 6GK5008-0BA10-1AB2 SCALANCE XB008 is an unmanaged industrial Ethernet switch with 8x 10/100 Mbit/s RJ45 ports, powered from 24V DC or AC (19.2 to 28.8 V) at up to 0.12A, and rated IP20 for DIN-rail or wall mounting. It meets PROFINET conformity class A and supports Parallel Redundancy Protocol (PRP) for redundant network paths.
Certifications & Standards
- CE marking
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- ULhazloc
- CCC-Ex
- FM
Selection Notes
As an unmanaged switch, the XB008 has no IP configuration, VLANs, or web interface - it is a plug-and-forward Layer 2 device, which is the right choice when the network topology doesn't need managed diagnostics or traffic segmentation at this node. Despite being unmanaged, it still supports Parallel Redundancy Protocol and CoS prioritization, so PROFINET real-time traffic can be kept ahead of best-effort traffic on the same port even without a management interface. The ATEX, UKEX, IECEx, ULhazloc, and CCC-Ex approvals extend its use into Zone 2/Div 2 hazardous-location panels, which an equivalent commercial-grade unmanaged switch would not carry.
Applications
Entry-level star or line-topology expansion at the edge of a PROFINET or industrial Ethernet network - machine cells, remote I/O drops, and panels in Zone 2/Div 2 hazardous locations where PRP redundancy is required but full switch management is not.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XB008 |
Transfer rate 1
| transfer rate | 10, 100 Mbit/s |
|---|
Interfaces / for communication / integrated 2
| number of electrical connections: for network components or terminal equipment | 8; RJ45 |
|---|---|
| number of 100 Mbit/s SC ports: for multimode | 0 |
Show all 79 specifications ↓ Show less ↑74 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product functions / management, configuration, engineering, Product functions / redundancy, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, For use in hazardous locations Test Certificates Industrial Communication, Logistics.
Identification 10
| Part number | 6GK5008-0BA10-1AB2 |
|---|---|
| Type designation | XB008 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622598368 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 2
| number of electrical connections: for power supply | 1 |
|---|---|
| type of electrical connection: for power supply | 3-pole terminal block |
Supply voltage, current consumption, power loss 10
| type of voltage / 1 / of the supply voltage | DC |
|---|---|
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 2.88 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 0.12 A |
| type of electrical connection / 1 / for power supply | 3-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 0,6 A / 60 V |
| type of voltage / 2 / of the supply voltage | AC |
| supply voltage / 2 / voltage range | 19.2 ... 28.8 |
Ambient conditions 5
| ambient temperature: during operation | -10 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 7
| design | Box |
|---|---|
| width | 45 mm |
| height | 100 mm |
| depth | 87 mm |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: S7-1500 rail mounting | No |
Product functions / management, configuration, engineering 4
| product function: multiport mirroring | No |
|---|---|
| product function: CoS | Yes |
| product function: switch-managed | No |
| PROFINET conformity class | A |
Product functions / redundancy 2
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
|---|---|
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
Standards, specifications, approvals 7
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 114.08 kg |
| global warming potential [CO2 eq]: during manufacturing | 7.42 kg |
| global warming potential [CO2 eq]: during operation | 106.52 kg |
| global warming potential [CO2 eq]: after end of life | 0.14 kg |
Product functions / general 3
| MTBF | 214 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 3
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 7.42 kg |
|---|---|
| Environment General Product Approval | Declaration of Con- formity For use in hazard- |
| General Product Approval EMV China RoHS | ous locations |
For use in hazardous locations Test Certificates Industrial Communication 1
| FM CCC-Ex Type Test Certific- PROFINET | ates/Test Report |
|---|
Logistics 7
| Net weight | 0.27 kg |
|---|---|
| Package dimensions | 123 × 35 × 147 mm |
| Country of origin | DE |
| Shipping weight | 0.77 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5008-0BA10-1AB2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- ATEX
- CE marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
- FM registration
Quick answers
Questions about the XB008
What is the rated current of XB008?
The rated current of XB008 is 0.12 A.
Which supply voltage is XB008 rated for?
The rated operational voltage of XB008 is 24–DC V DC.
What is the HS code of XB008 for customs?
The tariff (HS) code on file for XB008 is 85176200.
What is the EAN of XB008?
The EAN (GTIN) of XB008 is 4047622598368.
Where does XB008 ship from, and how fast?
XB008 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
