- Part number
- 6GK5005-0BA00-1AB2
- Model no
- XB005
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- ATEX

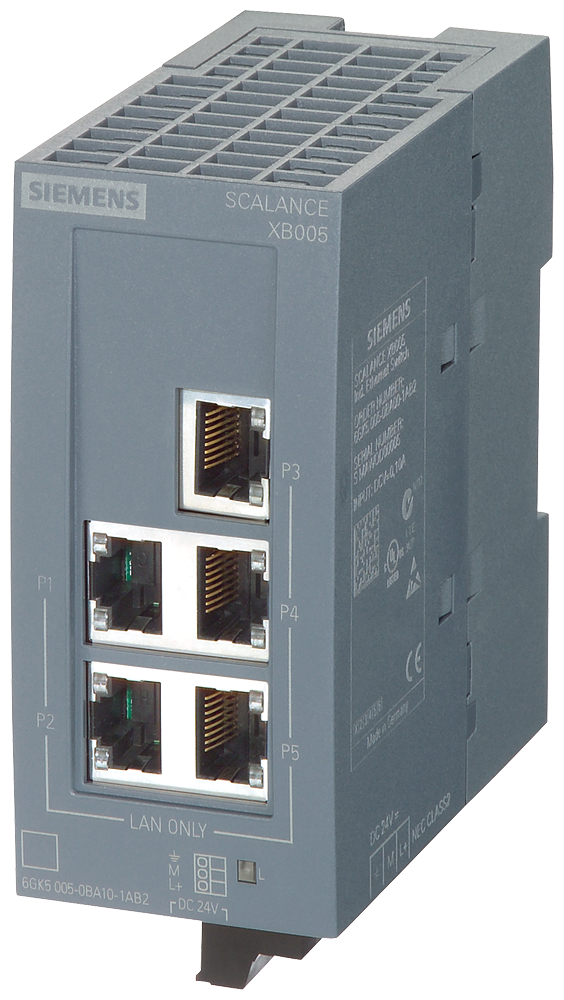

SCALANCE XB005Siemens 6GK5005-0BA00-1AB2 SCALANCE XB005 5-Port Unmanaged 10/100 Mbit/s Industrial Ethernet Switch
Siemens SCALANCE XB005 unmanaged switch, 5x RJ45 10/100 Mbit/s ports, 24V AC/DC, IP20, PRP support.
Description
About the XB005
About the XB005
The Siemens 6GK5005-0BA00-1AB2 is a SCALANCE XB005 unmanaged Industrial Ethernet switch with 5 RJ45 ports for 10/100 Mbit/s star or line topologies. It runs on 24 V AC/DC power at 1.68 W typical loss, carries an IP20 rating in a compact 45 x 100 x 87 mm housing, and supports PRP operation for redundant networks.
Certifications & Standards
- CE marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- ULhazloc approval
- CCC (hazardous zone, GB standard)
- FM registration
Selection Notes
As an unmanaged switch, the XB005 has no PROFINET conformance beyond Class A cabling compatibility - no VLAN, port mirroring, or ring redundancy configuration - so it fits flat, low-node-count segments such as a single machine's local star topology rather than plant-wide managed rings. It does support Parallel Redundancy Protocol at the physical layer, letting it sit on both legs of a PRP network without itself needing PRP intelligence. The dual-rated 24 V AC/DC input and wide 19.2-28.8 V tolerance let it run from the same supply rail as connected PLC or HMI hardware without a dedicated switch power supply, and the ATEX/UKEX/IECEx approvals cover mounting in hazardous-area cabinets without a separate enclosure.
Applications
Extends a small star or line Industrial Ethernet segment - connecting a SIMATIC PLC, HMI, and a couple of field devices - where full managed-switch diagnostics aren't needed; the hazardous-area approvals suit cabinet mounting on process or oil & gas skids.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XB005 |
Transfer rate 1
| transfer rate | 10, 100 Mbit/s |
|---|
Interfaces / for communication / integrated 2
| number of electrical connections: for network components or terminal equipment | 5; RJ45 |
|---|---|
| number of 100 Mbit/s SC ports: for multimode | 0 |
Show all 78 specifications ↓ Show less ↑73 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product functions / management, configuration, engineering, Product functions / redundancy, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, EMV For use in hazardous locations, Logistics.
Identification 10
| Part number | 6GK5005-0BA00-1AB2 |
|---|---|
| Type designation | XB005 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169853903 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 2
| number of electrical connections: for power supply | 1 |
|---|---|
| type of electrical connection: for power supply | 3-pole terminal block |
Supply voltage, current consumption, power loss 10
| type of voltage / 1 / of the supply voltage | DC |
|---|---|
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 1.68 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 0.07 A |
| type of electrical connection / 1 / for power supply | 3-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 0,6 A / 60 V |
| type of voltage / 2 / of the supply voltage | AC |
| supply voltage / 2 / voltage range | 19.2 ... 28.8 |
Ambient conditions 5
| ambient temperature: during operation | -10 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 7
| design | Box |
|---|---|
| width | 45 mm |
| height | 100 mm |
| depth | 87 mm |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: S7-1500 rail mounting | No |
Product functions / management, configuration, engineering 4
| product function: multiport mirroring | No |
|---|---|
| product function: CoS | Yes |
| product function: switch-managed | No |
| PROFINET conformity class | A |
Product functions / redundancy 2
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
|---|---|
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
Standards, specifications, approvals 7
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 57.94 kg |
| global warming potential [CO2 eq]: during manufacturing | 7.42 kg |
| global warming potential [CO2 eq]: during operation | 50.38 kg |
| global warming potential [CO2 eq]: after end of life | 0.14 kg |
Product functions / general 3
| MTBF | 241 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 2
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 7.42 kg |
|---|---|
| Environment General Product Approval | Declaration of Con- formity |
EMV For use in hazardous locations 1
| proval | FM |
|---|
Logistics 7
| Net weight | 0.254 kg |
|---|---|
| Package dimensions | 87 × 45 × 100 mm |
| Country of origin | DE |
| Shipping weight | 0.754 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5005-0BA00-1AB2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- ATEX
- CE marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
- FM registration
Quick answers
Questions about the XB005
What is the rated current of XB005?
The rated current of XB005 is 0.07 A.
Which supply voltage is XB005 rated for?
The rated operational voltage of XB005 is 24 – 24V DC V DC.
What is the HS code of XB005 for customs?
The tariff (HS) code on file for XB005 is 85176200.
What is the EAN of XB005?
The EAN (GTIN) of XB005 is 4019169853903.
Where does XB005 ship from, and how fast?
XB005 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
