- Part number
- 6GK5004-1GM10-1AB2
- Model no
- XB004-1LDG
- CE

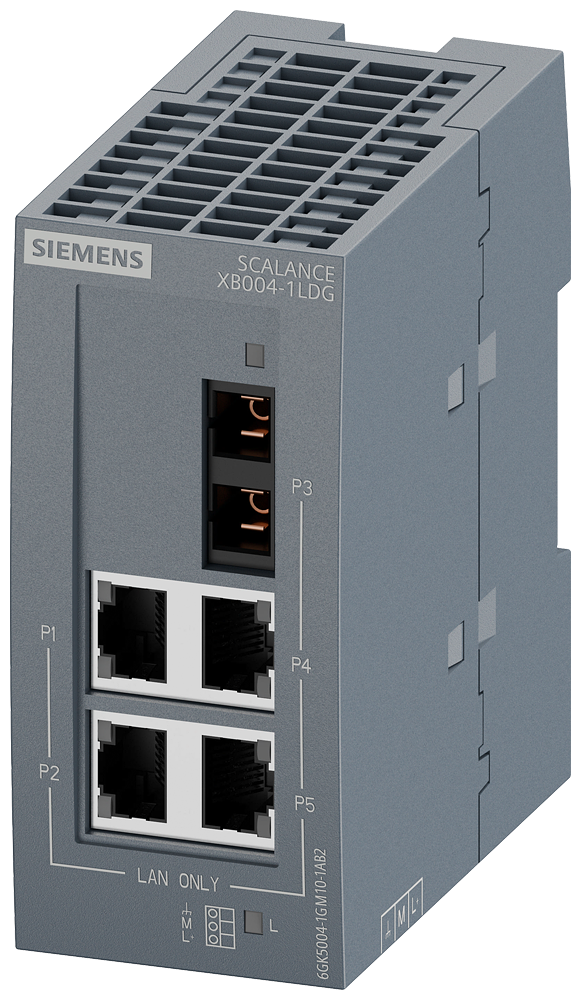

SCALANCE XB004Siemens 6GK5004-1GM10-1AB2 SCALANCE XB004-1LDG 4-Port Gigabit Single-Mode SC Industrial Ethernet Switch
SCALANCE XB004-1LDG unmanaged switch, 4x Gigabit RJ45 + 1x Gigabit single-mode SC to 10 km, IP20.
Description
About the XB004-1LDG
About the XB004-1LDG
The Siemens 6GK5004-1GM10-1AB2 SCALANCE XB004-1LDG is an unmanaged Industrial Ethernet switch with four 10/100/1000 Mbit/s RJ45 ports and one 1000 Mbit/s single-mode SC fiber port reaching up to 10 km. It runs on 24 V DC, draws 12.5 W at 0.52 A, carries an IP20 rating, and supports Parallel Redundancy Protocol.
Certifications & Standards
- CE
- cULus
- KC
- RCM
Selection Notes
The single-mode 1000 Mbit/s SC port on this XB004-1LDG variant pushes the fiber uplink out to 10 km, well beyond the 750 m multimode budget of the XB004-1G, so pick it for longer inter-building or plant-wide Gigabit runs. Both Gigabit variants share the same 24 V DC-only supply and 0.52 A draw. Drop back to the 100 Mbit/s XB004-1/XB004-1LD pair instead when the attached devices do not need Gigabit throughput and an AC/DC dual-rated supply is preferred.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XB004-1LDG |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 4
| number of electrical connections: for network components or terminal equipment | 4; RJ45 |
|---|---|
| number of 100 Mbit/s SC ports: for multimode | 0 |
| number of 1000 Mbit/s SC ports: for single mode (LD) | 1 |
| transmission method / of the optical interface | 1000BaseLX LD |
Show all 75 specifications ↓ Show less ↑68 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product functions / management, configuration, engineering, Product functions / redundancy, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5004-1GM10-1AB2 |
|---|---|
| Type designation | XB004-1LDG |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622501078 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 2
| number of electrical connections: for power supply | 1 |
|---|---|
| type of electrical connection: for power supply | 3-pole terminal block |
Supply voltage, current consumption, power loss 8
| type of voltage / 1 / of the supply voltage | DC |
|---|---|
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 12.5 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 0.52 A |
| type of electrical connection / 1 / for power supply | 3-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 0,6 A / 60 V |
Ambient conditions 5
| ambient temperature: during operation | -10 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 7
| design | Box |
|---|---|
| width | 45 mm |
| height | 100 mm |
| depth | 87 mm |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: S7-1500 rail mounting | No |
Product functions / management, configuration, engineering 4
| product function: multiport mirroring | No |
|---|---|
| product function: CoS | Yes |
| product function: switch-managed | No |
| PROFINET conformity class | A |
Product functions / redundancy 2
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
|---|---|
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
Standards, specifications, approvals 7
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
Standards, specifications, approvals / hazardous environments 5
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 141.3 kg |
| global warming potential [CO2 eq]: during manufacturing | 15.99 kg |
| global warming potential [CO2 eq]: during operation | 125.18 kg |
| global warming potential [CO2 eq]: after end of life | 0.15 kg |
Product functions / general 3
| MTBF | 124 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 15.99 kg |
|---|
Logistics 7
| Net weight | 0.302 kg |
|---|---|
| Package dimensions | 87 × 45 × 100 mm |
| Country of origin | DE |
| Shipping weight | 0.802 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5004-1GM10-1AB2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CE marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- CCC / for hazardous zone according to GB standard
- FM registration
- RoHS conformity
Quick answers
Questions about the XB004-1LDG
What is the rated current of XB004-1LDG?
The rated current of XB004-1LDG is 0.52 A.
What is the HS code of XB004-1LDG for customs?
The tariff (HS) code on file for XB004-1LDG is 85176200.
What is the EAN of XB004-1LDG?
The EAN (GTIN) of XB004-1LDG is 4047622501078.
Where does XB004-1LDG ship from, and how fast?
XB004-1LDG ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
