Siemens 6GK1907-0DB10-6AA3 SIMATIC NET IE Power M12 Plug PRO A-Coded IP65/67 Industrial Network Connector

% $-43.41

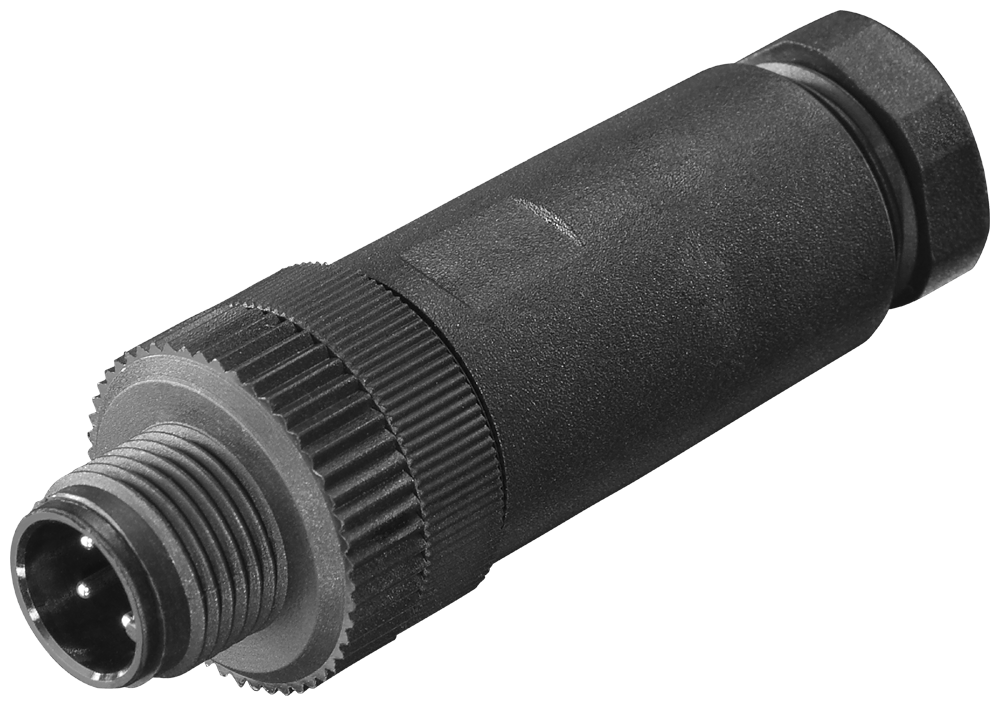

Siemens 6GK1907-0DB10-6AA3 IE Power M12 Plug PRO A-Coded - IP65/67
Siemens 6GK1907-0DB10-6AA3 IE Power M12 Plug PRO A-Coded - IP65/67

Siemens 6GK1907-0DB10-6AA3 SIMATIC NET IE Power M12 Plug PRO A-Coded IP65/67 Industrial Network Connector

Brand: Siemens
Reference No: 6GK1907-0DB10-6AA3
Catalog No: 6GK1907-0DB10-6AA3
Series: SIMATIC NET
Tariff Code (HS): 85366990
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$43.41

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GK1907-0DB10-6AA3 is an IE Power M12 Plug PRO, an A-coded 4-pin connector for wiring a PS791-1PRO power supply into a 24 V DC network, with integrated screw contacts for 2-core power cable. The plastic housing is rated IP65/67, locks with a 0.6 N.m screwed joint, accepts a 6-8 mm cable, and ships as a 3-unit pack.

Technical Specifications

SKU 6GK1907-0DB10-6AA3
Brand Siemens
Series SIMATIC NET
Product Type Designation Power M12 Plug PRO
Product Description M12 power connector, 4-pole, A-coded
Suitability for Use For connection to PS791-1PRO power supply for 24 V DC voltage supply
Number of Electrical Connections 1
Connection Type (PROFIBUS Cables) Integrated screw contacts for 2-core power cables
Connection Type (Network/Terminal Equipment) M12 connector (male insert, A-coded, 4-pin)
Enclosure Material Plastic
Locking Mechanism Screwed joint
Max. Tightening Torque 0.6 N.m
M12 Connector Coding A
Type of Cable Outlet 180 degree cable outlet
Width 19 mm
Height 19 mm
Depth 73 mm
Net Weight 40 g
Connectable Cable Diameter 6 ... 8 mm
Connectable Conductor Cross-Section 0.75 mm squared
Operating Temperature -40 ... +70 degC
Storage Temperature -40 ... +80 degC
Transport Temperature -40 ... +80 degC
Chemical Resistance to Water Resistant
Protection Class IP IP65/67
Silicon-Free Yes
Strain Relief Yes
Country of Origin DE

Certifications & Standards

  • RoHS
  • UL

Selection Notes

The A-coding and integrated screw contacts on this plug are matched to the PS791-1PRO supply, so it wires a 2-core 24 V DC feed cable directly into the M12 port without a separate terminal block. The 6-8 mm cable diameter range and 0.75 mm squared conductor rating fit the thinner power leads typical of PS791-1PRO installs, distinct from the heavier-gauge cable the L-coded PRO connectors handle. IP65/67 sealing on the plastic housing suits panel-edge and machine-mounted runs.

Technical Details

Short Description
IE Power M12 Plug PRO, A-coded, IP65/67, wires PS791-1PRO 24 V DC supply, 3-unit pack.
Protection Type
IP65/67
Catalog No
6GK1907-0DB10-6AA3
Standards
RoHS conformity, UL approval
Delivery Date (Days)
10-15 days
Model Number
6GK1907-0DB10-6AA3
Tariff Code
85366990
