- Part number
- 6GK1901-1BB20-2AB0
- Model no
- IE FC RJ45 Plug 90 (2x2)
In stock · 24
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0

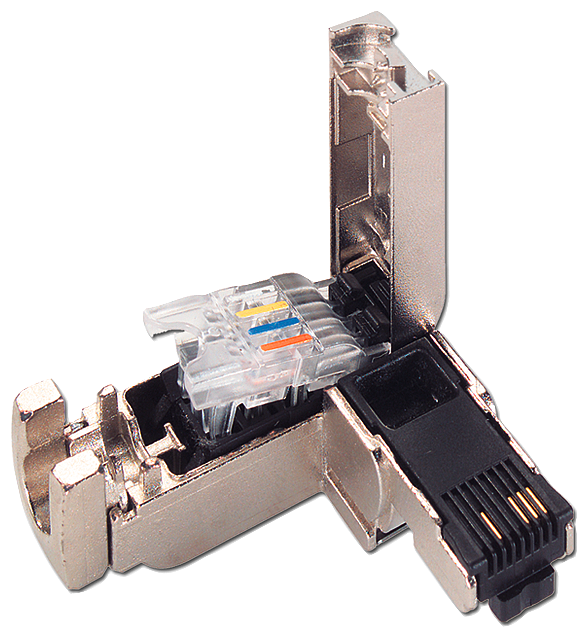

SIMATIC NETSiemens 6GK1901-1BB20-2AB0 SIMATIC NET IE FC RJ45 Plug 90 2x2 Industrial Network Connector
IE FastConnect RJ45 plug, 90-deg outlet, 2x2, PoE+, IP20, pack of 10.
Description
About the IE FC RJ45 Plug 90 (2x2)
About the IE FC RJ45 Plug 90 (2x2)
The Siemens 6GK1901-1BB20-2AB0 is an Industrial Ethernet FastConnect RJ45 plug with a 90° cable outlet for IE FC TP 2x2 cable, sold in packs of 10. It uses integrated cut-and-clamp contacts for tool-light termination on AWG22 4-wire FC installation cable and supports 10/100 Mbit/s transfer with PoE and PoE+ capability.
Certifications & Standards
- RoHS
- UL
- cULus
- EPD
Selection Notes
Pick the 6GK1901-1BB20-2AB0 over the straight (180°) FastConnect plug when panel or cabinet depth is limited and the cable needs to exit at 90° from the connector body — typical inside DIN-rail enclosures and tight cable ducts. The metal enclosure and IP20 rating with a -40 ... +85 °C operating range suit it to control cabinets and machine wiring rather than outdoor exposure, and PoE+ support lets it carry powered devices such as IP cameras or wireless access points on the same run.
Applications
Field termination of Industrial Ethernet FC TP 2x2 cable for PROFINET and general Industrial Ethernet wiring inside control cabinets, machine panels, and cable ducts where a 90° cable exit is required.
Specification
Full specification
General 4
| product type designation | IE FC RJ45 Plug 90 (2x2) |
|---|---|
| product description | RJ45 data connector Industrial Ethernet FastConnect RJ45 plug 90 2x 2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP Cable 2x 2; 90° cable outlet 1 pack = 10 units. |
| product brand name | SIMATIC NET |
| suitability for use | For connection to IE FC TP cables 2x2, suitable for fast assembly with the FastConnect system |
Transfer rate 1
| transfer rate / for Industrial Ethernet | 10, 100 Mbit/s |
|---|
Interfaces 5
| number of electrical connections: for Industrial Ethernet FC TP cables | 4 |
|---|---|
| number of electrical connections: for network components or terminal equipment | 1 |
| type of electrical connection: for Industrial Ethernet FC TP cables | integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22 |
| type of electrical connection: for network components or terminal equipment | RJ45 connector |
| type of electrical connection / FastConnect | Yes |
Show all 56 specifications ↓ Show less ↑46 more values in Identification, Mechanical data, Design, dimensions and weights, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK1901-1BB20-2AB0 |
|---|---|
| Type designation | IE FC RJ45 Plug 90 (2x2) |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169403955 |
| ETIM class | EC002636 |
| eCl@ss | 27440113 |
Mechanical data 3
| material / of the enclosure | metal |
|---|---|
| number of reuses | 10 |
| locking mechanism design | other |
Design, dimensions and weights 6
| type of cable outlet | 90° cable outlet |
|---|---|
| width | 13.7 mm |
| height | 16 mm |
| depth | 42 mm |
| connectable cable diameter | 6.5 mm |
| connectable conductor cross-section | 0.33 mm2 |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Product features, product functions, product components / general 5
| product feature: PoE capability | Yes |
|---|---|
| product feature: silicon-free | Yes |
| product component: strain relief | Yes |
| test voltage: at AC / core-to-core | 500 V |
| test voltage: at AC / core shield | 1500 V |
Standards, specifications, approvals 6
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| certificate of suitability: UL approval | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: railway application in accordance with EN 50155 | No |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| standard for structured cabling | Cat5 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.277 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.263 kg |
| global warming potential [CO2 eq]: during operation | 0.0086 kg |
| global warming potential [CO2 eq]: after end of life | 0.0062 kg |
Logistics 6
| Net weight | 0.362 kg |
|---|---|
| Country of origin | Poland |
| Shipping weight | 0.862 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK1901-1BB20-2AB0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
- UL approval
- cULus approval
- Environmental Product Declaration
Quick answers
Questions about the IE FC RJ45 Plug 90 (2x2)
What is the HS code of IE FC RJ45 Plug 90 (2x2) for customs?
The tariff (HS) code on file for IE FC RJ45 Plug 90 (2x2) is 85366990.
What is the EAN of IE FC RJ45 Plug 90 (2x2)?
The EAN (GTIN) of IE FC RJ45 Plug 90 (2x2) is 4019169403955.
Where does IE FC RJ45 Plug 90 (2x2) ship from, and how fast?
IE FC RJ45 Plug 90 (2x2) ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
