- Part number
- 6GK1901-1BB12-2AE0
- Model no
- IE FC RJ45 Plug 180 (4x2)
Low stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- RoHS
- UL

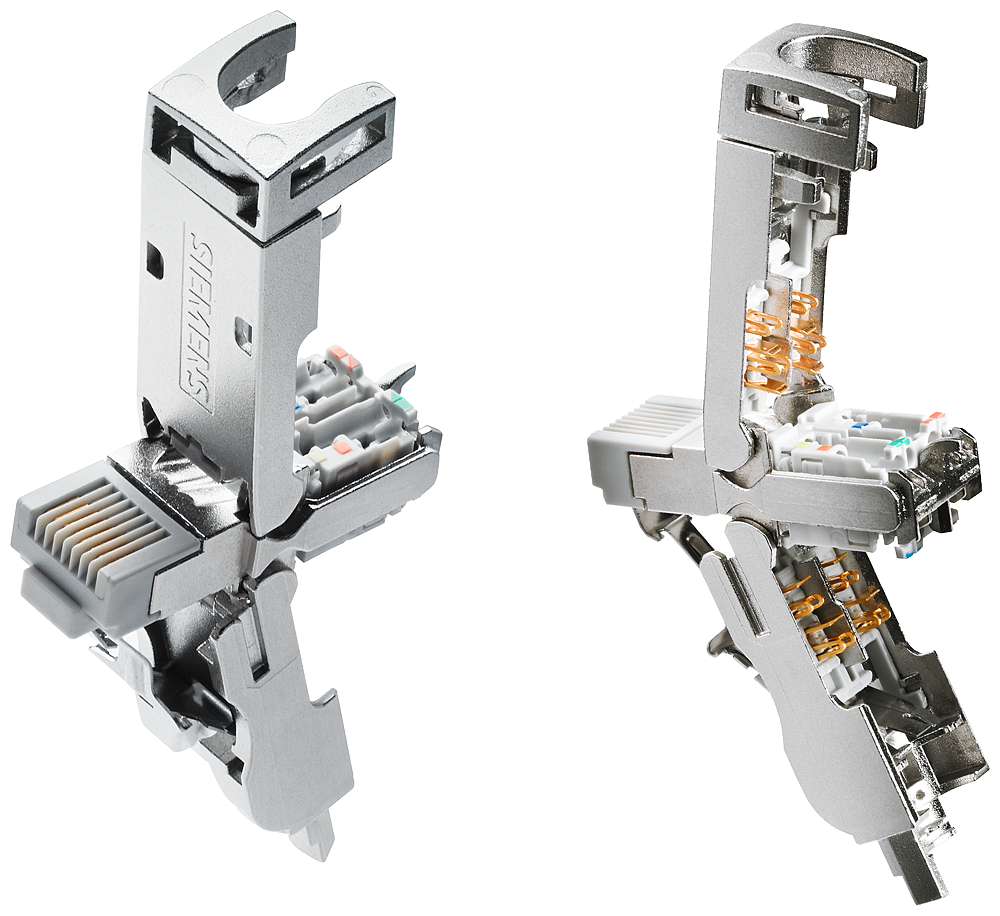

SIMATIC NETSiemens 6GK1901-1BB12-2AE0 IE FC RJ45 Plug 180 4x2 Cat6A Industrial Network Connector
Industrial Ethernet FastConnect RJ45 plug, 180 degree outlet, Cat6A rated for 10 Gbit/s, PoE++, pack of 50 pieces.
Description
About the IE FC RJ45 Plug 180 (4x2)
About the IE FC RJ45 Plug 180 (4x2)
The Siemens 6GK1901-1BB12-2AE0 is an Industrial Ethernet FastConnect RJ45 plug with a 180 degree cable outlet, rated Cat6A for 10/100/1000 and up to 10000 Mbit/s transmission, sold in packs of 50. It terminates IE FC TP 4x2 (AWG24) installation cable via integrated insulation-displacement contacts in a rugged metal enclosure. Each pack of 50 supports PoE, PoE+, and PoE++ pass-through for powered field devices.
Certifications & Standards
- RoHS
- UL
- cULus
Selection Notes
The Cat6A rating and 10 Gbit/s capability set this connector apart from the standard Cat6 FastConnect RJ45 plug in the same family, so pick it specifically for 10GBASE-T runs or where the cabling needs headroom above 1 Gbit/s. Full PoE/PoE+/PoE++ pass-through support means it can be used on links feeding powered field devices without a separate power injector at the connector.
Applications
Terminates Industrial Ethernet FastConnect trunk and drop cables in SCALANCE switch and PROFINET device installations where field-assembled Cat6A connectors are needed instead of pre-made patch cords.
Specification
Full specification
General 4
| product type designation | IE FC RJ45 Plug 180 (4x2) |
|---|---|
| product description | RJ45 data connector Industrial Ethernet FastConnect RJ45 plug 180 4x 2, RJ45 plug-in connector; CAT6A; (10/100/1000/10000 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP Cable 4x 2 (AWG24); 180° cable outlet 1 pack = 50 units. |
| product brand name | SIMATIC NET |
| suitability for use | For connection to IE FC TP cables 4x2, suitable for fast assembly with the FastConnect system |
Transfer rate 1
| transfer rate / for Industrial Ethernet | 10, 100, 1000 Mbit/s |
|---|
Interfaces 5
| number of electrical connections: for Industrial Ethernet FC TP cables | 1 |
|---|---|
| number of electrical connections: for network components or terminal equipment | 1 |
| type of electrical connection: for Industrial Ethernet FC TP cables | Integrated insulation-displacement contacts for 8-wire (AWG24) and 4-wire (AWG22) TP FC installation cables |
| type of electrical connection: for network components or terminal equipment | RJ45 connector |
| type of electrical connection / FastConnect | Yes |
Show all 50 specifications ↓ Show less ↑40 more values in Identification, Mechanical data, Design, dimensions and weights, Ambient conditions, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK1901-1BB12-2AE0 |
|---|---|
| Type designation | IE FC RJ45 Plug 180 (4x2) |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169855006 |
| ETIM class | EC002636 |
| eCl@ss | 27440113 |
Mechanical data 3
| material / of the enclosure | metal |
|---|---|
| number of reuses | 10 |
| locking mechanism design | other |
Design, dimensions and weights 6
| type of cable outlet | 180° cable outlet |
|---|---|
| width | 13.7 mm |
| height | 16 mm |
| depth | 55 mm |
| connectable cable diameter | 6.5 ... 8 mm |
| connectable conductor cross-section | 0.21 ... 0.33 mm2 |
Ambient conditions 9
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| product features, product functions, product components / general product feature: PoE capability | Yes |
| product component: strain relief | Yes |
| test voltage: at AC / core-to-core | 500 V |
| test voltage: at AC / core shield | 1500 V |
Standards, specifications, approvals 6
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| certificate of suitability: UL approval | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: railway application in accordance with EN 50155 | No |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| standard for structured cabling | Cat6A |
Logistics 6
| Net weight | 1.307 kg |
|---|---|
| Country of origin | Poland |
| Shipping weight | 1.807 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK1901-1BB12-2AE0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- UL
- RoHS conformity
- UL approval
- cULus approval
Quick answers
Questions about the IE FC RJ45 Plug 180 (4x2)
What is the HS code of IE FC RJ45 Plug 180 (4x2) for customs?
The tariff (HS) code on file for IE FC RJ45 Plug 180 (4x2) is 85366990.
What is the EAN of IE FC RJ45 Plug 180 (4x2)?
The EAN (GTIN) of IE FC RJ45 Plug 180 (4x2) is 4019169855006.
Where does IE FC RJ45 Plug 180 (4x2) ship from, and how fast?
IE FC RJ45 Plug 180 (4x2) ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
