- Part number
- 6GK1901-1BB12-2AA0
- Model no
- IE FC RJ45 Plug 180 (4x2)
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0

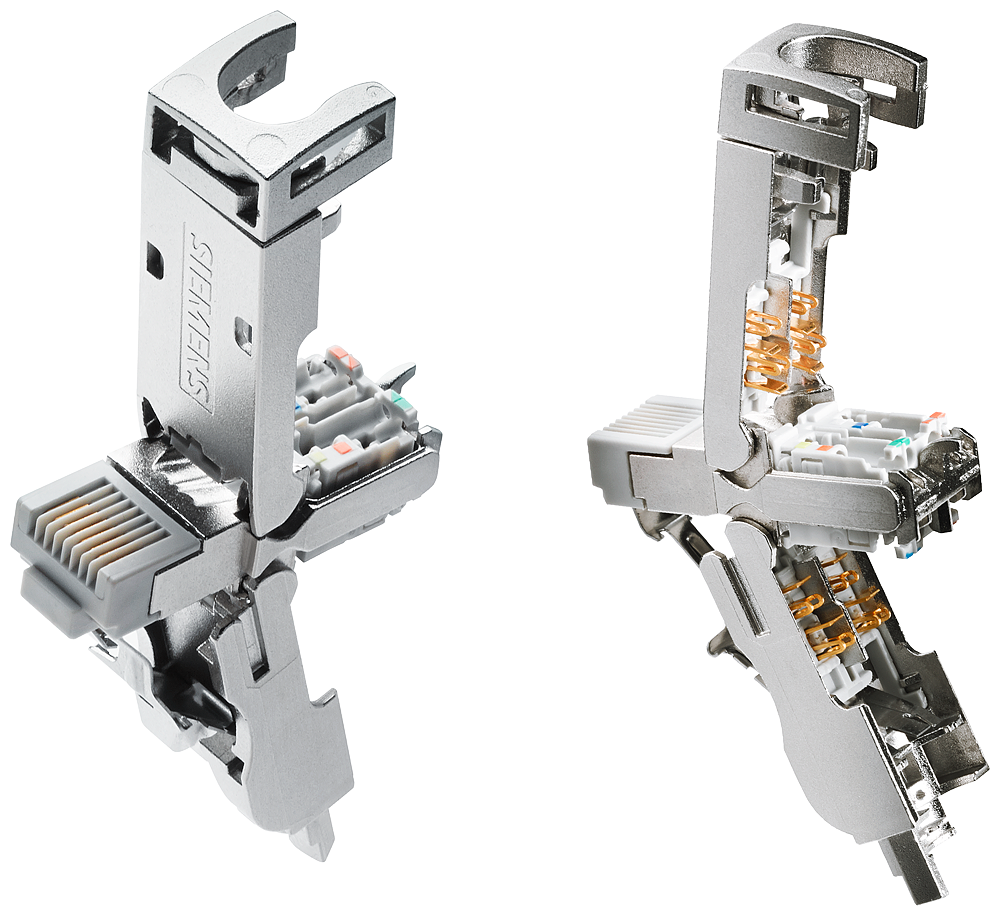

SIMATIC NETSiemens 6GK1901-1BB12-2AA0 IE FC RJ45 Plug 180 4x2 CAT6A 10G Network Connector
IE FastConnect RJ45 plug, 180 degree outlet, 4x2 AWG24, Cat6A 10Gbit/s, PoE++.
Description
About the IE FC RJ45 Plug 180 (4x2)
About the IE FC RJ45 Plug 180 (4x2)
The Siemens 6GK1901-1BB12-2AA0 is an Industrial Ethernet FastConnect RJ45 plug with a 180-degree cable outlet for 4x2 (AWG24) FC TP installation cable, rated Cat6A for 10, 100, 1000, and 10000 Mbit/s transfer. It has a rugged metal enclosure, integrated insulation-displacement contacts, and supports PoE, PoE+, and PoE++ power delivery through the same connector.
Certifications & Standards
- RoHS
- UL
- cULus
Selection Notes
The 180-degree cable outlet fits tight enclosure depth where a straight-exit plug would foul the panel door or a DIN-rail duct; pick a straight-outlet variant instead when clearance behind the connector isn't a constraint. Cat6A and 10 Gbit/s rating plus PoE++ support future-proof the run for higher-bandwidth or higher-power PoE devices such as PTZ cameras or access points without rewiring. The metal enclosure and 10-reuse rating tolerate field re-termination during commissioning changes.
Applications
Field termination of Industrial Ethernet FastConnect cabling to switches, cameras, and PoE-powered devices in control cabinets and machine enclosures.
Specification
Full specification
General 4
| product type designation | IE FC RJ45 Plug 180 (4x2) |
|---|---|
| product description | RJ45 data connector Industrial Ethernet FastConnect RJ45 plug 180 4x 2, RJ45 plug-in connector; CAT6A; (10/100/1000/10000 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP Cable 4x 2 (AWG24); 180° cable outlet 1 pack = 1 unit. |
| product brand name | SIMATIC NET |
| suitability for use | For connection to IE FC TP cables 4x2, suitable for fast assembly with the FastConnect system |
Transfer rate 1
| transfer rate / for Industrial Ethernet | 10, 100, 1000 Mbit/s |
|---|
Interfaces 5
| number of electrical connections: for Industrial Ethernet FC TP cables | 1 |
|---|---|
| number of electrical connections: for network components or terminal equipment | 1 |
| type of electrical connection: for Industrial Ethernet FC TP cables | Integrated insulation-displacement contacts for 8-wire (AWG24) and 4-wire (AWG22) TP FC installation cables |
| type of electrical connection: for network components or terminal equipment | RJ45 connector |
| type of electrical connection / FastConnect | Yes |
Show all 50 specifications ↓ Show less ↑40 more values in Identification, Mechanical data, Design, dimensions and weights, Ambient conditions, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK1901-1BB12-2AA0 |
|---|---|
| Type designation | IE FC RJ45 Plug 180 (4x2) |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169854986 |
| ETIM class | EC002636 |
| eCl@ss | 27440113 |
Mechanical data 3
| material / of the enclosure | metal |
|---|---|
| number of reuses | 10 |
| locking mechanism design | other |
Design, dimensions and weights 6
| type of cable outlet | 180° cable outlet |
|---|---|
| width | 13.7 mm |
| height | 16 mm |
| depth | 55 mm |
| connectable cable diameter | 6.5 ... 8 mm |
| connectable conductor cross-section | 0.21 ... 0.33 mm2 |
Ambient conditions 9
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| product features, product functions, product components / general product feature: PoE capability | Yes |
| product component: strain relief | Yes |
| test voltage: at AC / core-to-core | 500 V |
| test voltage: at AC / core shield | 1500 V |
Standards, specifications, approvals 6
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| certificate of suitability: UL approval | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: railway application in accordance with EN 50155 | No |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| standard for structured cabling | Cat6A |
Logistics 6
| Net weight | 0.035 kg |
|---|---|
| Country of origin | Poland |
| Shipping weight | 0.535 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK1901-1BB12-2AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
- UL approval
- cULus approval
Quick answers
Questions about the IE FC RJ45 Plug 180 (4x2)
What is the HS code of IE FC RJ45 Plug 180 (4x2) for customs?
The tariff (HS) code on file for IE FC RJ45 Plug 180 (4x2) is 85369010.
What is the EAN of IE FC RJ45 Plug 180 (4x2)?
The EAN (GTIN) of IE FC RJ45 Plug 180 (4x2) is 4019169854986.
Where does IE FC RJ45 Plug 180 (4x2) ship from, and how fast?
IE FC RJ45 Plug 180 (4x2) ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
