- Part number
- 6GK1901-1BB10-2AE0
- Model no
- IE FC RJ45 Plug 180 (2x2)
In stock · 17
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
SIMATIC NETSiemens 6GK1901-1BB10-2AE0 SIMATIC NET IE FC RJ45 Plug 180 2x2 Industrial Network Connector
SIMATIC NET IE FC RJ45 plug 180, 2x2, 10/100 Mbit/s, PoE+, metal housing, 50-pack
Description
About the IE FC RJ45 Plug 180 (2x2)
About the IE FC RJ45 Plug 180 (2x2)

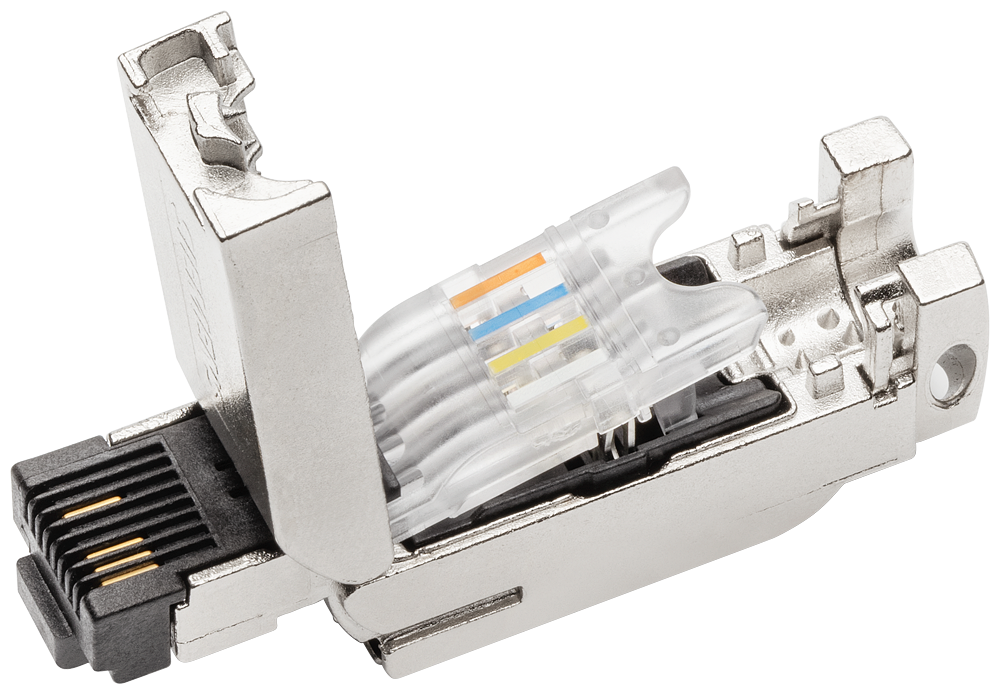

The Siemens IE FC RJ45 Plug 180, 2x2 (6GK1901-1BB10-2AE0) is a 10/100 Mbit/s Industrial Ethernet FastConnect RJ45 connector with a rugged metal enclosure and 180-degree cable outlet, sold in packs of 50. It terminates IE FC TP 2x2 installation cable with integrated cut-and-clamp contacts, rated IP20 and PoE/PoE+ capable for structured Cat5 cabling.
Certifications & Standards
- RoHS
- UL
- cULus
- EPD
Selection Notes
The 180-degree cable outlet routes the cable back along the panel or DIN-rail run rather than straight out, useful in tight enclosures; a different outlet angle fits a different routing case. Rated for up to 10 reassemblies and PoE/PoE+, it suits terminating IE FC TP 2x2 cable runs feeding PROFINET devices or PoE-powered cameras and access points on the same segment.
Applications
Field termination of Industrial Ethernet FC TP 2x2 cable for PROFINET device wiring, and PoE+ links to switches, IP cameras, or wireless access points on the plant floor. The metal shell and IP20 rating suit control-panel and machine-enclosure installation.
Specification
Full specification
General 4
| product type designation | IE FC RJ45 Plug 180 (2x2) |
|---|---|
| product description | RJ45 data connector Industrial Ethernet FastConnect RJ45 plug 180 2x 2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP cable 2x 2; 180° cable outlet 1 pack = 50 units. |
| product brand name | SIMATIC NET |
| suitability for use | For connection to IE FC TP cables 2x2, suitable for fast assembly with the FastConnect system |
Transfer rate 1
| transfer rate / for Industrial Ethernet | 10, 100 Mbit/s |
|---|
Interfaces 5
| number of electrical connections: for Industrial Ethernet FC TP cables | 4 |
|---|---|
| number of electrical connections: for network components or terminal equipment | 1 |
| type of electrical connection: for Industrial Ethernet FC TP cables | integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22 |
| type of electrical connection: for network components or terminal equipment | RJ45 connector |
| type of electrical connection / FastConnect | Yes |
Show all 56 specifications ↓ Show less ↑46 more values in Identification, Mechanical data, Design, dimensions and weights, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK1901-1BB10-2AE0 |
|---|---|
| Type designation | IE FC RJ45 Plug 180 (2x2) |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169404211 |
| ETIM class | EC002636 |
| eCl@ss | 27440113 |
Mechanical data 3
| material / of the enclosure | metal |
|---|---|
| number of reuses | 10 |
| locking mechanism design | other |
Design, dimensions and weights 6
| type of cable outlet | 180° cable outlet |
|---|---|
| width | 13.7 mm |
| height | 16 mm |
| depth | 55 mm |
| connectable cable diameter | 6.5 mm |
| connectable conductor cross-section | 0.33 mm2 |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Product features, product functions, product components / general 5
| product feature: PoE capability | Yes |
|---|---|
| product feature: silicon-free | Yes |
| product component: strain relief | Yes |
| test voltage: at AC / core-to-core | 500 V |
| test voltage: at AC / core shield | 1500 V |
Standards, specifications, approvals 6
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| certificate of suitability: UL approval | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: railway application in accordance with EN 50155 | No |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| standard for structured cabling | Cat5 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.277 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.263 kg |
| global warming potential [CO2 eq]: during operation | 0.0086 kg |
| global warming potential [CO2 eq]: after end of life | 0.0062 kg |
Logistics 6
| Net weight | 1.293 kg |
|---|---|
| Country of origin | Poland |
| Shipping weight | 1.793 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK1901-1BB10-2AE0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
- UL approval
- cULus approval
- Environmental Product Declaration
Quick answers
Questions about the IE FC RJ45 Plug 180 (2x2)
What is the HS code of IE FC RJ45 Plug 180 (2x2) for customs?
The tariff (HS) code on file for IE FC RJ45 Plug 180 (2x2) is 85366990.
What is the EAN of IE FC RJ45 Plug 180 (2x2)?
The EAN (GTIN) of IE FC RJ45 Plug 180 (2x2) is 4019169404211.
Where does IE FC RJ45 Plug 180 (2x2) ship from, and how fast?
IE FC RJ45 Plug 180 (2x2) ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
