- Part number
- 6GK1901-1BB10-2AA0
- Model no
- IE FC RJ45 Plug 180 (2x2)
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
SIMATIC NETSiemens 6GK1901-1BB10-2AA0 SIMATIC NET IE FC RJ45 Plug 180 2x2 PoE+ IP20 Industrial Network Connector
Siemens 6GK1901-1BB10-2AA0 IE FC RJ45 plug, 2x2, 10/100 Mbit/s, PoE+, metal IP20 housing, FastConnect termination.
Description
About the IE FC RJ45 Plug 180 (2x2)
About the IE FC RJ45 Plug 180 (2x2)

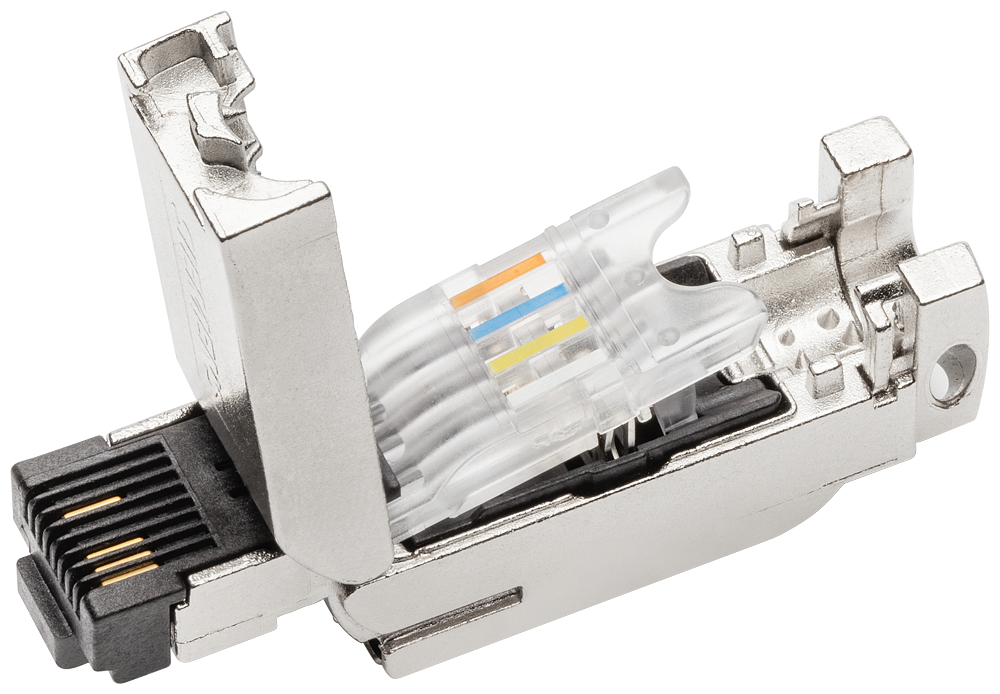

The Siemens 6GK1901-1BB10-2AA0 is an IE FC RJ45 plug-in connector for Industrial Ethernet FastConnect TP cable 2x2, rated for 10/100 Mbit/s transfer and PoE+ power delivery. Its metal enclosure and 180° cable outlet suit tight panel routing, the FastConnect cut-and-clamp contacts allow field termination without special crimp tools, and the connector is rated for up to 10 reuses.
Certifications & Standards
- RoHS
- UL
- cULus
- Environmental Product Declaration
Selection Notes
The 180° cable outlet keeps the plug profile low for shallow trunking and DIN-rail duct runs, unlike straight in-line connectors that need extra depth behind the panel. Because the plug supports PoE+ pass-through, it terminates FastConnect cabling ahead of PoE-powered switches or cameras without a separate power injector. The metal enclosure and IP20 rating limit it to enclosed cabinet or duct installation rather than open field wiring, and the connector accepts up to 10 reconnections before the FastConnect contacts should be replaced with a fresh plug.
Applications
Terminates Industrial Ethernet FastConnect TP cable 2x2 runs inside control cabinets and machine wiring ducts feeding SIMATIC PLCs, HMIs, and PROFINET-connected drives or switches. The PoE+ rating suits links to powered field devices such as IP cameras or wireless access points on the same segment.
Specification
Full specification
General 4
| product type designation | IE FC RJ45 Plug 180 (2x2) |
|---|---|
| product description | RJ45 data connector Industrial Ethernet FastConnect RJ45 plug 180 2x 2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP cable 2x 2; 180° cable outlet 1 pack = 1 unit. |
| product brand name | SIMATIC NET |
| suitability for use | For connection to IE FC TP cables 2x2, suitable for fast assembly with the FastConnect system |
Transfer rate 1
| transfer rate / for Industrial Ethernet | 10, 100 Mbit/s |
|---|
Interfaces 5
| number of electrical connections: for Industrial Ethernet FC TP cables | 4 |
|---|---|
| number of electrical connections: for network components or terminal equipment | 1 |
| type of electrical connection: for Industrial Ethernet FC TP cables | integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22 |
| type of electrical connection: for network components or terminal equipment | RJ45 connector |
| type of electrical connection / FastConnect | Yes |
Show all 56 specifications ↓ Show less ↑46 more values in Identification, Mechanical data, Design, dimensions and weights, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK1901-1BB10-2AA0 |
|---|---|
| Type designation | IE FC RJ45 Plug 180 (2x2) |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169403931 |
| ETIM class | EC002636 |
| eCl@ss | 27440113 |
Mechanical data 3
| material / of the enclosure | metal |
|---|---|
| number of reuses | 10 |
| locking mechanism design | other |
Design, dimensions and weights 6
| type of cable outlet | 180° cable outlet |
|---|---|
| width | 13.7 mm |
| height | 16 mm |
| depth | 55 mm |
| connectable cable diameter | 6.5 mm |
| connectable conductor cross-section | 0.33 mm2 |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Product features, product functions, product components / general 5
| product feature: PoE capability | Yes |
|---|---|
| product feature: silicon-free | Yes |
| product component: strain relief | Yes |
| test voltage: at AC / core-to-core | 500 V |
| test voltage: at AC / core shield | 1500 V |
Standards, specifications, approvals 6
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| certificate of suitability: UL approval | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: railway application in accordance with EN 50155 | No |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| standard for structured cabling | Cat5 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.277 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.263 kg |
| global warming potential [CO2 eq]: during operation | 0.0086 kg |
| global warming potential [CO2 eq]: after end of life | 0.0062 kg |
Logistics 6
| Net weight | 0.034 kg |
|---|---|
| Country of origin | Poland |
| Shipping weight | 0.534 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK1901-1BB10-2AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
- UL approval
- cULus approval
- Environmental Product Declaration
Quick answers
Questions about the IE FC RJ45 Plug 180 (2x2)
What is the HS code of IE FC RJ45 Plug 180 (2x2) for customs?
The tariff (HS) code on file for IE FC RJ45 Plug 180 (2x2) is 85366990.
What is the EAN of IE FC RJ45 Plug 180 (2x2)?
The EAN (GTIN) of IE FC RJ45 Plug 180 (2x2) is 4019169403931.
Where does IE FC RJ45 Plug 180 (2x2) ship from, and how fast?
IE FC RJ45 Plug 180 (2x2) ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
