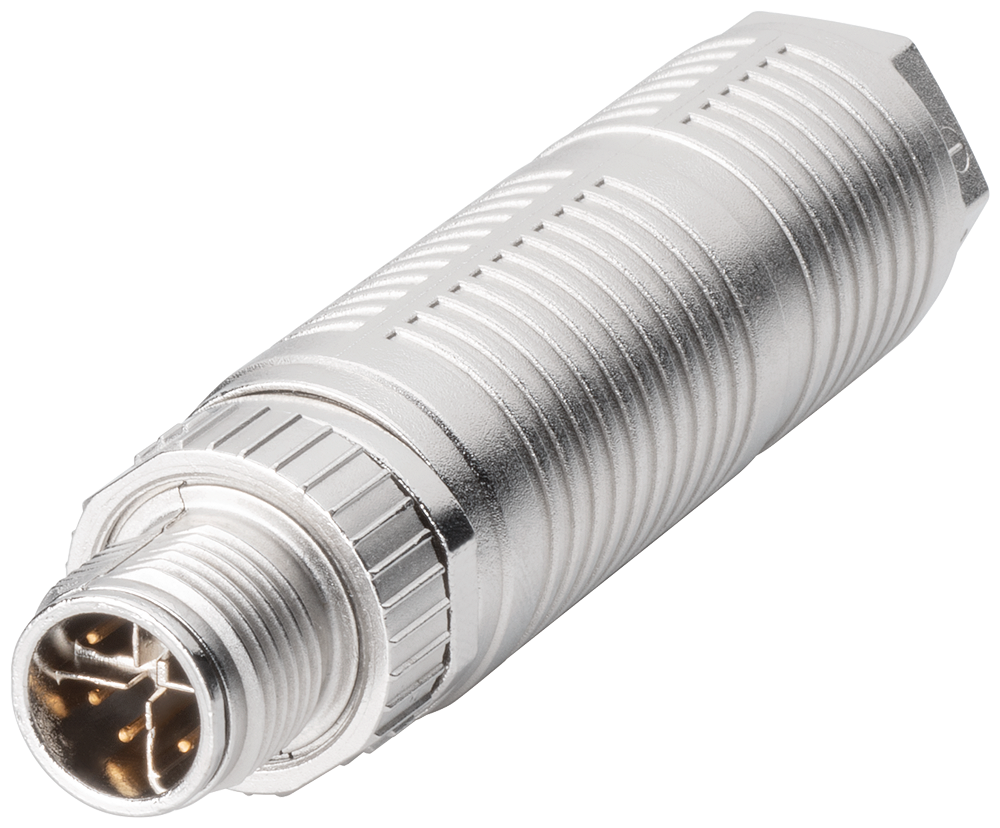

SCALANCE XSiemens 6GK1901-0DB50-6AA8 SIMATIC NET IE FC M12 Plug PRO 4x2 IP65/67 X-Coded Connector
SIMATIC NET IE FC M12 Plug PRO 4x2, IP65/67 X-coded M12 connector, PoE+, Cat6A, for SCALANCE W/X.
Description
About the IE FC M12 Plug PRO 4X2
About the IE FC M12 Plug PRO 4X2
The Siemens 6GK1901-0DB50-6AA8 is a SIMATIC NET IE FC M12 Plug PRO 4x2 connector that terminates 8-wire TP FastConnect installation cable into an M12 X-coded plug for SCALANCE W and SCALANCE X devices. The screwed metal enclosure is rated IP65/67, supports PoE+ and Cat6A structured cabling, and carries data at 10/100/1000 Mbit/s Industrial Ethernet or 10000 Mbit/s over the X-coded interface.
Certifications & Standards
- RoHS
- UL
- cULus
- EN 50155
- EN 45545-5
Specification
Full specification
General 4
| product type designation | IE FC M12 Plug PRO 4X2 |
|---|---|
| product description | FC M12 plug-in connector in high degree of protection, 8-pin, X-coded IE FC M12 Plug PRO 4x 2; M12 plug-in connector with Rugged metal enclosure and FC Connection method; with axial cable outlet (X-coded) 1 pack = 8 units for SCALANCE W and SCALANCE X. |
| product brand name | SIMATIC NET |
| suitability for use | For connecting electrical cables to SCALANCE W (M12 gigabit interface) for fast assembly with the FastConnect system |
Transfer rate 1
| transfer rate / for Industrial Ethernet | 10, 100, 1000 Mbit/s |
|---|
Interfaces 5
| number of electrical connections: for Industrial Ethernet FC TP cables | 8 |
|---|---|
| number of electrical connections: for network components or terminal equipment | 1 |
| type of electrical connection: for Industrial Ethernet FC TP cables | integrated insulation-displacement contacts for 8-wire TP FC installation cables AWG24/AWG26 |
| type of electrical connection: for network components or terminal equipment | M12 plug (X-coded, male) |
| type of electrical connection / FastConnect | Yes |
Show all 51 specifications ↓ Show less ↑41 more values in Identification, Mechanical data, Design, dimensions and weights, Ambient conditions, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK1901-0DB50-6AA8 |
|---|---|
| Type designation | IE FC M12 Plug PRO 4X2 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169857352 |
| ETIM class | EC002635 |
| eCl@ss | 27440115 |
Mechanical data 4
| material / of the enclosure | metal |
|---|---|
| locking mechanism design | Screwed joint |
| tightening torque / for M12 round connector / maximum | 0.6 N·m |
| connector coding / of the M12 circular connector | X |
Design, dimensions and weights 6
| type of cable outlet | 180° cable outlet |
|---|---|
| width | 17.6 mm |
| height | 17.6 mm |
| depth | 70.7 mm |
| connectable cable diameter | 6.5 ... 8 mm |
| connectable conductor cross-section | 0.21 ... 0.33 mm2 |
Ambient conditions 8
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -50 ... +100 °C |
| ambient temperature: during transport | -50 ... +100 °C |
| chemical resistance: to water | resistant |
| protection class IP product features, product functions, product components / general | IP65/67 |
| product feature: PoE capability | Yes |
| product feature: silicon-free | Yes |
| product component: strain relief | Yes |
Standards, specifications, approvals 6
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| certificate of suitability: UL approval | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: railway application in accordance with EN 50155 | Yes |
| certificate of suitability: fire protection according to EN 45545-5 | Yes |
| standard for structured cabling | Cat6A |
Logistics 7
| Net weight | 0.048 kg |
|---|---|
| Package dimensions | 71 × 18 × 18 mm |
| Country of origin | Poland |
| Shipping weight | 0.548 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK1901-0DB50-6AA8
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- RoHS conformity
- UL approval
- cULus approval
- railway application in accordance with EN 50155
- fire protection according to EN 45545-5
Quick answers
Questions about the IE FC M12 Plug PRO 4X2
What is the HS code of IE FC M12 Plug PRO 4X2 for customs?
The tariff (HS) code on file for IE FC M12 Plug PRO 4X2 is 85366990.
What is the EAN of IE FC M12 Plug PRO 4X2?
The EAN (GTIN) of IE FC M12 Plug PRO 4X2 is 4019169857352.
Where does IE FC M12 Plug PRO 4X2 ship from, and how fast?
IE FC M12 Plug PRO 4X2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
