- Part number
- 6GK1901-0DB20-6AA8
- Model no
- IE FC M12 Plug PRO (PROFINET)
Low stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- RoHS

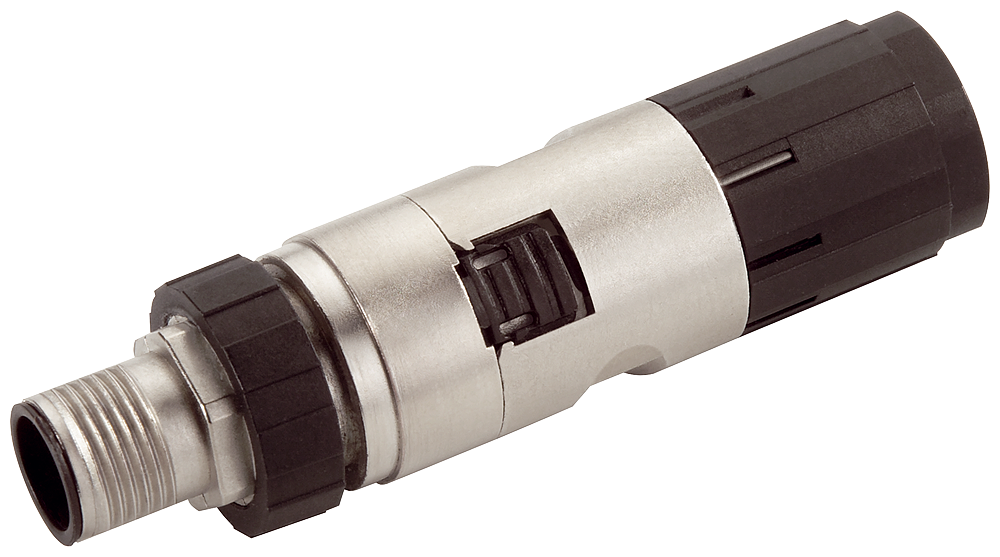

SCALANCE X208Siemens 6GK1901-0DB20-6AA8 IE FC M12 Plug PRO 2x2 D-Coded Network Connector
IE FC M12 Plug PRO, D-coded, metal enclosure, IP65/67, PoE+, pack of 8.
Description
About the IE FC M12 Plug PRO (PROFINET)
About the IE FC M12 Plug PRO (PROFINET)
The Siemens 6GK1901-0DB20-6AA8 is an Industrial Ethernet FastConnect M12 Plug PRO, a 4-pole D-coded M12 connector with a metal enclosure for terminating Industrial Ethernet FC TP cable via cut-and-clamp contacts, sold in packs of 8. It supports 10/100 Mbit/s transfer rates and IP65/67 protection once mated, for use with SCALANCE X208 PRO and ET 200 PRO PN / ET 200 eco PN.
Certifications & Standards
- RoHS
- UL
- cULus
- EPD
Selection Notes
The D-coded, 4-pole M12 form factor and PRO-rated metal housing target SCALANCE X208 PRO and ET 200 PRO PN / ET 200 eco PN devices specifically - a standard plastic M12 connector would not match the PRO series' IP65/67 mating requirement. Cut-and-clamp FastConnect termination avoids crimping or soldering tools during panel or machine wiring, and the 10-reuse rating means the same plug body can be re-terminated during rework instead of being discarded after a single wiring attempt. PoE and PoE+ capability let this connector carry both data and power on the same M12 mating pair where the connected device supports it.
Applications
Used for field wiring of SCALANCE X208 PRO switches and ET 200 PRO PN / ET 200 eco PN stations in IP65/67-rated cabinets or machine-mounted enclosures, including PoE-powered Ethernet devices.
Specification
Full specification
General 4
| product type designation | IE FC M12 Plug PRO (PROFINET) |
|---|---|
| product description | M12 connector with high protection, 4-pole, D-coded Industrial Ethernet FastConnect M12 plug PRO 2x2 M12 plug-in connector with rugged metal enclosure and FC connection method, with axial cable outlet (D- coded) 1 pack=8 units for SCALANCE X208 PRO and ET 200 PRO PN. |
| product brand name | SIMATIC NET |
| suitability for use | For connecting electrical cables to SCALANCE X208PRO, ET200 PRO PN or ET200 eco PN for fast assembly with the FastConnect system |
Transfer rate 1
| transfer rate / for Industrial Ethernet | 10, 100 Mbit/s |
|---|
Interfaces 5
| number of electrical connections: for Industrial Ethernet FC TP cables | 4 |
|---|---|
| number of electrical connections: for network components or terminal equipment | 1 |
| type of electrical connection: for Industrial Ethernet FC TP cables | integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22 |
| type of electrical connection: for network components or terminal equipment | M12 plug (D-coded, male) |
| type of electrical connection / FastConnect | Yes |
Show all 58 specifications ↓ Show less ↑48 more values in Identification, Mechanical data, Design, dimensions and weights, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK1901-0DB20-6AA8 |
|---|---|
| Type designation | IE FC M12 Plug PRO (PROFINET) |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169852340 |
| ETIM class | EC002635 |
| eCl@ss | 27440115 |
Mechanical data 5
| material / of the enclosure | metal |
|---|---|
| number of reuses | 10 |
| locking mechanism design | Screwed joint |
| tightening torque / for M12 round connector / maximum | 0.6 N·m |
| connector coding / of the M12 circular connector | D |
Design, dimensions and weights 6
| type of cable outlet | 180° cable outlet |
|---|---|
| width | 19 mm |
| height | 19 mm |
| depth | 73 mm |
| connectable cable diameter | 6.5 mm |
| connectable conductor cross-section | 0.33 mm2 |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| chemical resistance: to water | resistant |
| protection class IP | IP65/67 |
Product features, product functions, product components / general 5
| product feature: PoE capability | Yes |
|---|---|
| product feature: silicon-free | Yes |
| product component: strain relief | Yes |
| test voltage: at AC / core-to-core | 500 V |
| test voltage: at AC / core shield | 1500 V |
Standards, specifications, approvals 5
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| certificate of suitability: UL approval | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: railway application in accordance with EN 50155 | No |
| standard for structured cabling | Cat5 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.32 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.28 kg |
| global warming potential [CO2 eq]: during operation | 0.01 kg |
| global warming potential [CO2 eq]: after end of life | 0.03 kg |
Logistics 6
| Net weight | 0.386 kg |
|---|---|
| Country of origin | Poland |
| Shipping weight | 0.886 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK1901-0DB20-6AA8
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- RoHS conformity
- UL approval
- cULus approval
- Environmental Product Declaration
Quick answers
Questions about the IE FC M12 Plug PRO (PROFINET)
What is the HS code of IE FC M12 Plug PRO (PROFINET) for customs?
The tariff (HS) code on file for IE FC M12 Plug PRO (PROFINET) is 85369010.
What is the EAN of IE FC M12 Plug PRO (PROFINET)?
The EAN (GTIN) of IE FC M12 Plug PRO (PROFINET) is 4019169852340.
Where does IE FC M12 Plug PRO (PROFINET) ship from, and how fast?
IE FC M12 Plug PRO (PROFINET) ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
