- Part number
- 6GK1503-2CC00
- Model no
- PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port.

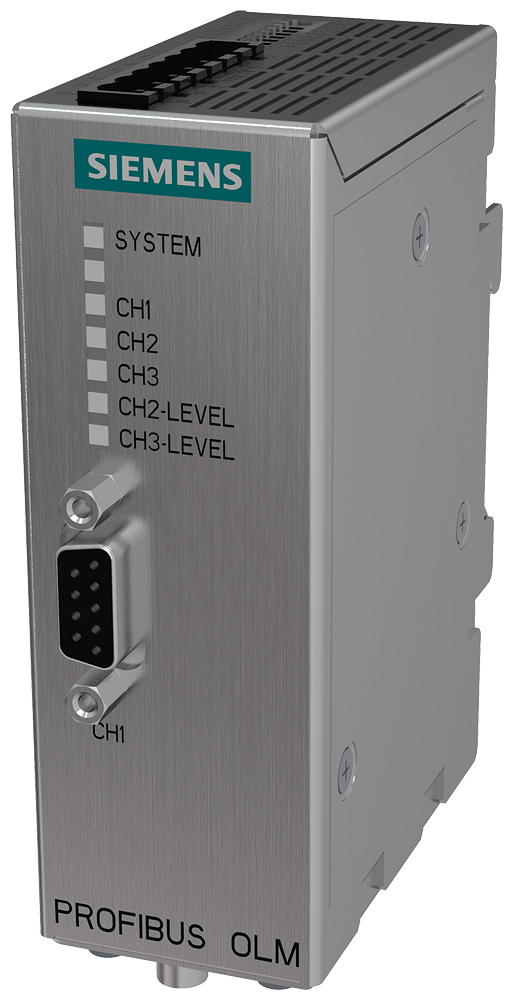

SIMATIC NETSiemens 6GK1503-2CC00 SIMATIC NET PROFIBUS OLM/G11-1300 V4.0 15 km Glass FOC Industrial Network Connector
SIMATIC NET PROFIBUS OLM/G11-1300 V4.0, RS 485 to single-mode glass fiber, up to 15 km.
Description
About the PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port.
About the PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port.
The Siemens 6GK1503-2CC00 PROFIBUS OLM/G11-1300 V4.0 is an optical link module with one RS 485 interface and one single-mode glass fiber-optic interface (2 BFOC sockets, 1300 nm) that bridges PROFIBUS from 9.6 kbit/s to 12 Mbit/s over runs up to 15 km. It runs on 24 V DC (18.8-28.8 V), has a redundant power supply input, and supports ring redundancy.
Certifications & Standards
- CE
- C-Tick
- ABS
- BV
- DNV
- GL
- LRS
- NK
- EPD
Selection Notes
A 15 km reach on single-mode glass fiber puts the OLM/G11-1300 in a different class from the plastic-FOC OLM/P11 (80 m) or PCF-FOC variants (400 m); it is the choice when a PROFIBUS segment has to span buildings or long outdoor runs rather than a single machine or panel. The redundant power supply input is unique to this variant among the OLM family covered here, so it is also the one to pick when the segment must stay up through a single power-feed failure.
Specification
Full specification
General 2
| product type designation | PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port. |
|---|---|
| product brand name | SIMATIC NET |
Transfer rate 2
| transfer rate / with PROFIBUS | 9.6 kbit/s ... 12 Mbit/s |
|---|---|
| transfer rate / with PROFIBUS PA | 45.45 kbit/s |
Interfaces 11
| number of electrical/optical connections / for network components or terminal equipment / maximum | 2 |
|---|---|
| number of electrical connections: for network components or terminal equipment | 1 |
| number of electrical connections: for measuring device | 1 |
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 1 |
| number of electrical connections: for redundant voltage supply | 1 |
| type of electrical connection: for network components or terminal equipment | 9-pin Sub-D socket |
| type of electrical connection: for measuring device | 2-pole terminal block |
| type of electrical connection: for power supply and signaling contact | 5-pole terminal block |
| number of optical interfaces / for fiber optic cable | 1 |
| design of the optical interface / for fiber optic cable | BFOC port |
Show all 76 specifications ↓ Show less ↑61 more values in Identification, Optical data, Signal inputs/outputs, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product functions / redundancy, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK1503-2CC00 |
|---|---|
| Type designation | PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169852548 |
| ETIM class | EC000310 |
| eCl@ss | 27060320 |
Optical data 6
| attenuation factor / of the FOC transmission link: for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum | 8 dB |
|---|---|
| propagation delay [bit] | 6.5 bit |
| connectable optical power relative to 1 mW: for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km | -19 dB |
| optical sensitivity relating to 1 mW: for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km | -29 dB |
| wavelength / of the optical interface / note | 1310 nm, single-mode |
| wire length: for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum | 15 km |
Signal inputs/outputs 2
| operating voltage / of the signaling contacts / at DC / rated value | 24 V |
|---|---|
| operational current / of the signaling contacts / at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 5
| type of voltage / of the supply voltage | DC |
|---|---|
| supply voltage / at DC / rated value | 24 V |
| supply voltage / at DC | 18.8 ... 28.8 V |
| product component / fusing at power supply input | Yes |
| consumed current / at DC / at 24 V / maximum | 0.2 A |
Ambient conditions 5
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP40 |
Design, dimensions and weights 6
| design | compact |
|---|---|
| width | 39.5 mm |
| height | 112 mm |
| depth | 74.5 mm |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | Yes |
Product functions / redundancy 1
| product function / ring redundancy | Yes |
|---|
Standards, specifications, approvals 13
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 Nr. 60950-1 |
|---|---|
| standard: for emitted interference | EN 61000-6-4 (Class A) |
| standard: for interference immunity | EN 61000-6-2 |
| certificate of suitability | EN 61000-6-2, EN 61000-6-4 |
| CE marking | Yes |
| C-Tick | Yes |
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: French marine classification society (BV) | Yes |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Germanische Lloyd (GL) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | Yes |
| Marine classification association: Nippon Kaiji Kyokai (NK) | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Standards, specifications, approvals / hazardous environments 1
| certificate of suitability / CCC / for hazardous zone according to GB standard | No |
|---|
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 165.41 kg |
| global warming potential [CO2 eq]: during manufacturing | 15.09 kg |
| global warming potential [CO2 eq]: during operation | 150.26 kg |
| global warming potential [CO2 eq]: after end of life | 0.06 kg |
Logistics 7
| Net weight | 0.419 kg |
|---|---|
| Package dimensions | 74 × 40 × 112 mm |
| Country of origin | DE |
| Shipping weight | 0.919 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK1503-2CC00
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- C-Tick
- American Bureau of Shipping Europe Ltd. (ABS)
- French marine classification society (BV)
- Det Norske Veritas (DNV)
- Germanische Lloyd (GL)
- Lloyds Register of Shipping (LRS)
- Nippon Kaiji Kyokai (NK)
- Environmental Product Declara
Quick answers
Questions about the PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port.
Which supply voltage is PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port. rated for?
The rated operational voltage of PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port. is 24 V AC.
What is the HS code of PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port. for customs?
The tariff (HS) code on file for PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port. is 85176200.
What is the EAN of PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port.?
The EAN (GTIN) of PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port. is 4019169852548.
Where does PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port. ship from, and how fast?
PROFIBUS OLM/G11-1300 V4.0 PROFIBUS OLM/G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
