- Part number
- 6GK1411-5AB10
- Model no
- IE/PB LINK PN IO IE/PB link PN IO, gateway between Industrial Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, time-of-day synchronization via SIMATIC processes, NTP, SNMP v1, LLDP, S7 routing, data record routing, connection of up to 64 S7/DPV0/DPV1 slaves, support of DP/PA link and DP/FF link, 10/100 Mbit/s fast Ethernet, MRP, 9.6 Kbit/s up to 12 Mbit/s PROFIBUS, firmware loading via configuration tool, redundant power supply, firmware version V4.0.
Siemens has announced the end of 6GK1411-5AB10
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

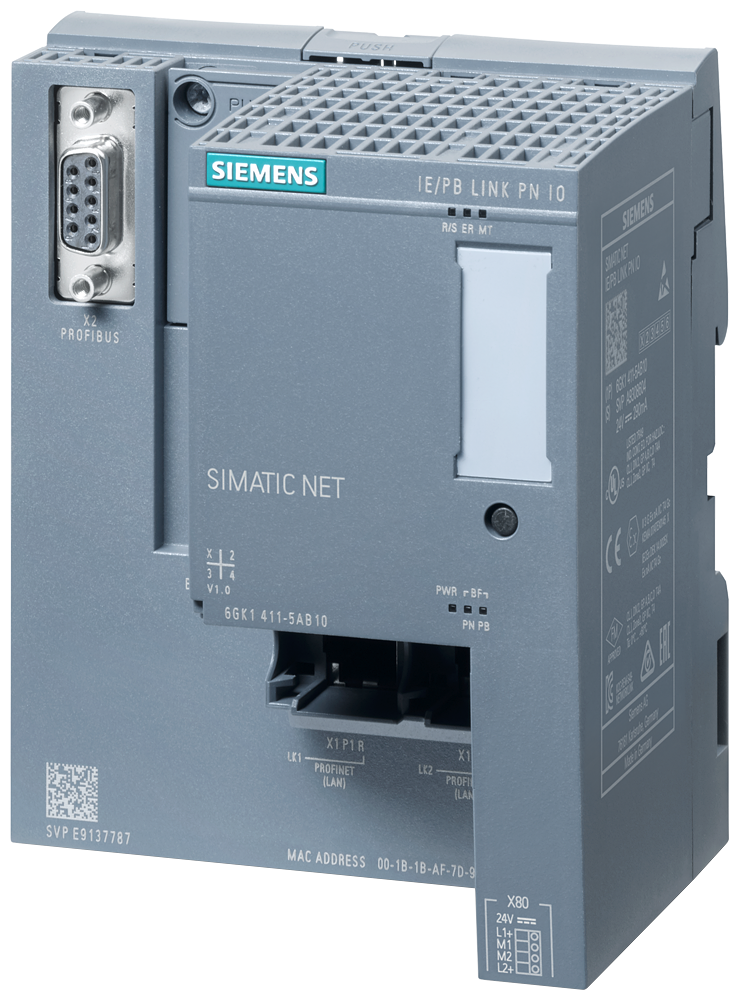

Siemens 6GK1411-5AB10 SIMATIC NET IE/PB Link PN IO 100 Mbit/s 12 Mbit/s Industrial Router
SIMATIC NET IE/PB Link PN IO gateway, Ethernet to PROFIBUS, up to 64 DP slaves.
Description
About the IE/PB LINK PN IO IE/PB link PN IO, gateway between Industrial Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, time-of-day synchronization via SIMATIC processes, NTP, SNMP v1, LLDP, S7 routing, data record routing, connection of up to 64 S7/DPV0/DPV1 slaves, support of DP/PA link and DP/FF link, 10/100 Mbit/s fast Ethernet, MRP, 9.6 Kbit/s up to 12 Mbit/s PROFIBUS, firmware loading via configuration tool, redundant power supply, firmware version V4.0.
About the IE/PB LINK PN IO IE/PB link PN IO, gateway between Industrial Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, time-of-day synchronization via SIMATIC processes, NTP, SNMP v1, LLDP, S7 routing, data record routing, connection of up to 64 S7/DPV0/DPV1 slaves, support of DP/PA link and DP/FF link, 10/100 Mbit/s fast Ethernet, MRP, 9.6 Kbit/s up to 12 Mbit/s PROFIBUS, firmware loading via configuration tool, redundant power supply, firmware version V4.0.
The Siemens 6GK1411-5AB10 IE/PB Link PN IO is a gateway between Industrial Ethernet and PROFIBUS that acts as a PROFINET IO proxy for up to 64 DP/DPV0/DPV1 slaves. It runs at 10/100 Mbit/s on the Ethernet side and 9.6 kbit/s to 12 Mbit/s on PROFIBUS, supports ring redundancy via MRP, and mounts in an ET 200SP-format housing on a 24 V DC supply.
Certifications & Standards
- CE
- UKCA
- cULus
- RCM
- RoHS
- EAC
- ATEX
- IECEx
- UL Hazloc
- CCC-Ex
Selection Notes
The 64-slave, 2048-byte address range limit is the number that matters when sizing this gateway against a PROFIBUS segment: a station with more devices or a larger I/O map needs to split across two links rather than one. Its PROFINET IO proxy function means an existing PROFINET controller sees the PROFIBUS segment as native IO without rewriting the DP master configuration, and MRP ring redundancy on the Ethernet side lets it sit in a ring topology without a separate switch.
Specification
Full specification
General 3
| product type designation | IE/PB LINK PN IO IE/PB link PN IO, gateway between Industrial Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, time-of-day synchronization via SIMATIC processes, NTP, SNMP v1, LLDP, S7 routing, data record routing, connection of up to 64 S7/DPV0/DPV1 slaves, support of DP/PA link and DP/FF link, 10/100 Mbit/s fast Ethernet, MRP, 9.6 Kbit/s up to 12 Mbit/s PROFIBUS, firmware loading via configuration tool, redundant power supply, firmware version V4.0. |
|---|---|
| product brand name | SIMATIC NET |
| suitability for operation | Gateway between Industrial Ethernet and PROFIBUS |
Transfer rate 2
| transfer rate: at the 1st interface | 10 ... 100 Mbit/s |
|---|---|
| transfer rate: at the 2nd interface | 9.6 kbit/s ... 12 Mbit/s |
Interfaces 7
| number of electrical connections: at the 1st interface / according to Industrial Ethernet | 2 |
|---|---|
| number of electrical connections: at the 2nd interface / according to PROFIBUS | 1 |
| number of electrical connections: for power supply | 2 |
| type of electrical connection: at the 1st interface / according to Industrial Ethernet | RJ45 port onboard or SIMATIC BusAdapter |
| type of electrical connection: at the 2nd interface / according to PROFIBUS | 9-pin Sub-D socket (RS 485) |
| type of electrical connection: for power supply | 4-pole terminal block |
| design of the removable storage: C-PLUG | Yes |
Show all 103 specifications ↓ Show less ↑91 more values in Identification, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Performance data / PROFIBUS DP, Performance data / S7 communication, Performance data / multi-protocol mode, Performance data / PROFINET communication / as PN IO device, Product functions / management, configuration, engineering, Product functions / routing, Product functions / redundancy, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments / header, Standards, specifications, approvals / marine classification / header, Europe Ltd. (ABS), (LRS), Standards, specifications, approvals / Environmental Product Declaration, Accessories, General Product Approval, Logistics.
Identification 10
| Part number | 6GK1411-5AB10 |
|---|---|
| Type designation | IE/PB LINK PN IO IE/PB link PN IO, gateway between Industrial Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, time-of-day synchronization via SIMATIC processes, NTP, SNMP v1, LLDP, S7 routing, data record routing, connection of up to 64 S7/DPV0/DPV1 slaves, support of DP/PA link and DP/FF link, 10/100 Mbit/s fast Ethernet, MRP, 9.6 Kbit/s up to 12 Mbit/s PROFIBUS, firmware loading via configuration tool, redundant power supply, firmware version V4.0. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622155486 |
| ETIM class | EC001423 |
| eCl@ss | 27242208 |
Supply voltage, current consumption, power loss 6
| type of voltage / of the supply voltage | DC |
|---|---|
| supply voltage / external / at DC / rated value | 24 V |
| relative positive tolerance / at DC / at 24 V | 20 % |
| relative negative tolerance / at DC / at 24 V | 15 % |
| consumed current: from external supply voltage / at DC / at 24 V / typical | 0.2 A |
| power loss [W] | 4.8 W; typical 4.8 W, maximum 7.2 W |
Ambient conditions 8
| ambient temperature: for vertical installation / during operation | 0 ... 40 °C |
|---|---|
| ambient temperature: for horizontally arranged busbars / during operation | 0 ... 60 °C |
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| ambient condition / relating to ambient temperature - air | during operation max. 2 000 m above sea level at max. 60 °C ambient |
| pressure - installation altitude | temperature |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 5
| module format | ET 200SP design |
|---|---|
| width | 100 mm |
| height | 117 mm |
| depth | 74 mm |
| fastening method: 35 mm DIN-rail mounting | Yes |
Performance data / PROFIBUS DP 7
| service / as DP master: DPV0 | Yes |
|---|---|
| service / as DP master: DPV1 | Yes |
| number of DP devices: at the 2nd interface / as DP master / maximum | 64 |
| data volume: of the address range of the inputs / as DP master / total | 2048 byte |
| data volume: of the address range of the outputs / as DP master / total | 2048 byte |
| data volume: of the address range of the inputs / per DP device | 244 byte |
| data volume: of the address range of the outputs / per DP device | 244 byte |
Performance data / S7 communication 1
| number of possible connections / for S7 communication: maximum | 32 |
|---|
Performance data / multi-protocol mode 1
| number of active connections / with multi-protocol mode | 48 |
|---|
Performance data / PROFINET communication / as PN IO device 1
| product function / PROFINET IO device | Yes |
|---|
Product functions / management, configuration, engineering 10
| product function / MIB support | Yes |
|---|---|
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| configuration software: required | STEP 7 as of V5.5 SP4 HF11 and HSP, STEP 7 Professional as of V15, PCS7 V9.0, PCS neo as of V3.0, PNI as of V1.0 |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
| identification & maintenance function: I&M2 - installation date | Yes |
| identification & maintenance function: I&M3 - comment | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Product functions / routing 2
| service / as PROFIBUS / dataset routing | Yes |
|---|---|
| number of possible connections / with dataset routing / maximum | 32 |
Product functions / redundancy 3
| product function: ring redundancy | Yes |
|---|---|
| product function / of the PROFINET IO device / is supported: PROFINET system redundancy | No |
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
Product functions / time 3
| product function / pass on time synchronization | Yes |
|---|---|
| protocol / is supported: NTP | Yes |
| protocol / is supported: SIMATIC time synchronization (SIMATIC Time) | Yes |
Standards, specifications, approvals 6
| certificate of suitability / CE marking | Yes |
|---|---|
| certificate of suitability / UKCA marking | Yes |
| certificate of suitability / cULus approval | Yes |
| certificate of suitability / Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability / RoHS conformity | Yes |
| certificate of suitability / EAC approval | Yes |
Standards, specifications, approvals / hazardous environments / header 5
| certificate of suitability / ATEX | Yes |
|---|---|
| certificate of suitability / IECEx | Yes |
| certificate of suitability / ULhazloc approval | Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability / FM registration | Yes |
Standards, specifications, approvals / marine classification / header 1
| Marine classification association / American Bureau of Shipping | Yes |
|---|
Europe Ltd. (ABS) 3
| Marine classification association / French marine classification society (BV) | Yes |
|---|---|
| Marine classification association / Det Norske Veritas (DNV) | Yes |
| Marine classification association / Lloyds Register of Shipping | Yes |
(LRS) 3
| Marine classification association / Nippon Kaiji Kyokai (NK) | Yes |
|---|---|
| Marine classification association / Polski Rejestr Statkow (PRS) | Yes |
| Marine classification association / Royal Institution of Naval | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 153.98 kg |
| global warming potential [CO2 eq]: during manufacturing | 22.6 kg |
| global warming potential [CO2 eq]: during operation | 131 kg |
| global warming potential [CO2 eq]: after end of life | 0.38 kg |
Accessories 1
| accessories | optional: C-PLUG, SIMATIC BusAdapter of the ET 200SP system |
|---|
General Product Approval 3
| China RoHS | Manufacturer Declara- tion For use in hazard- |
|---|---|
| General Product Approval China RoHS | EMV ous locations |
| For use in hazardous locations | Maritime application |
Logistics 7
| Net weight | 0.482 kg |
|---|---|
| Package dimensions | 74 × 100 × 117 mm |
| Country of origin | DE |
| Shipping weight | 0.982 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
