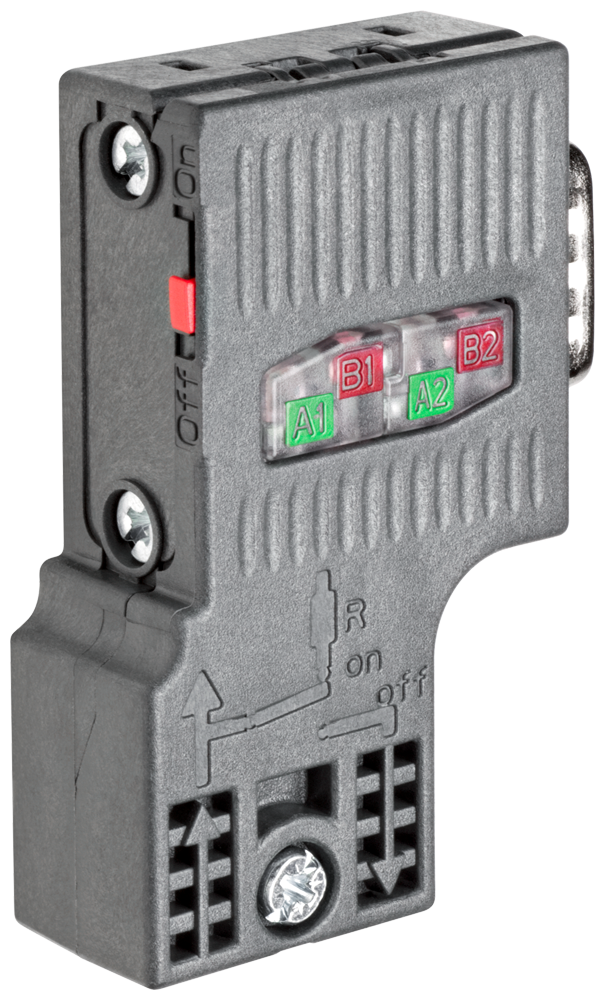

SIMATIC S7-400Siemens 6ES7972-0BA52-0XA0 SIMATIC NET PROFIBUS Connector 90° FastConnect Industrial Network Connector
PROFIBUS bus connector, 90° cable outlet, FastConnect termination, up to 12 Mbit/s, IP20.
Description
About the 6ES7972-0BA52-0XA0
About the 6ES7972-0BA52-0XA0
The Siemens 6ES7972-0BA52-0XA0 is a SIMATIC NET PROFIBUS bus connector with a 90° cable outlet and FastConnect insulation-displacement termination, rated up to 12 Mbit/s on PROFIBUS DP. It has two insulation-displacement terminals for the bus cable and a 9-pin sub-D connector to the station, with no integrated programming port.
Certifications & Standards
- RoHS
- UL
Selection Notes
The 90° cable outlet routes the bus cable flat along the panel or DIN rail instead of straight out of the connector — pick this variant over a straight (180°) connector where panel depth is tight or the connector sits at the end of a row of closely mounted modules. The screw-locked FastConnect terminals accept 2-core PROFIBUS FC installation cable without a separate crimp tool, and the integrated switchable terminating resistor lets it close a segment end without a separate terminator plug.
Applications
Connecting PROFIBUS DP field devices, drives, and I/O stations to the bus trunk cable in panel-mounted automation systems where cable routing space above the connector is limited.
Specification
Full specification
Product description PROFIBUS bus connector, RS 485, Fast Connect, without programming port, 90° SIMATIC DP, PROFIBUS connection plug up to 12 Mbps; 90° cable outlet; FastConnect insulation displacement method; terminating resistor with isolating function; without PG socket; dimensions 15.8 x 59 x 35.6 mm (W x H x D) 2
| product brand name | SIMATIC |
|---|---|
| suitability for use | for connecting PROFIBUS stations to the PROFIBUS bus cable |
Transfer rate 1
| transfer rate / with PROFIBUS DP | 9.6 kbit/s ... 12 Mbit/s |
|---|
Interfaces 5
| number of electrical connections: for PROFIBUS cables | 2 |
|---|---|
| number of electrical connections: for network components or terminal equipment | 1 |
| type of electrical connection: for PROFIBUS cables | Integrated insulation displacement terminals for 2-core PB FC installation cables |
| type of electrical connection: for network components or terminal equipment | 9-pin sub D connector |
| type of electrical connection / FastConnect | Yes |
Show all 39 specifications ↓ Show less ↑31 more values in Identification, Mechanical data, Design, dimensions and weights, Ambient conditions, Product features, product functions, product components / general, For use in hazardous locations, Logistics.
Identification 9
| Part number | 6ES7972-0BA52-0XA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515077299 |
| ETIM class | EC002636 |
| eCl@ss | 27440113 |
Mechanical data 3
| design of terminating resistor | Resistor combination integrated and connectable via slide switch |
|---|---|
| material / of the enclosure | plastic |
| locking mechanism design | Screwed joint |
Design, dimensions and weights 4
| type of cable outlet | 90 degree cable outlet |
|---|---|
| width | 15.8 mm |
| height | 59 mm |
| depth | 35.6 mm |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| protection class IP | IP20 |
Product features, product functions, product components / general 4
| product feature: silicon-free | Yes |
|---|---|
| product component: PG connection socket | No |
| product component: strain relief | Yes |
| standards, specifications, approvals certificate of suitability: RoHS conformity | Yes |
For use in hazardous locations 1
| FM Type Examination Cer- CCC-Ex | tificate |
|---|
Logistics 6
| Net weight | 0.041 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.541 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6ES7972-0BA52-0XA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- RoHS conformity
- UL approval
Quick answers
Questions about the 6ES7972-0BA52-0XA0
What is the HS code of 6ES7972-0BA52-0XA0 for customs?
The tariff (HS) code on file for 6ES7972-0BA52-0XA0 is 85366990.
What is the EAN of 6ES7972-0BA52-0XA0?
The EAN (GTIN) of 6ES7972-0BA52-0XA0 is 4025515077299.
Where does 6ES7972-0BA52-0XA0 ship from, and how fast?
6ES7972-0BA52-0XA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
