Siemens 6AV2181-5AF02-0AX0 Connecting Cable 2m PROFINET KTP Mobile HMI Accessory

Name: Siemens 6AV2181-5AF02-0AX0 Connecting Cable 2m PROFINET KTP Mobile HMI Accessory
Brand: Siemens
SKU: 6AV2181-5AF02-0AX0
Price: 194.33 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 6AV2181-5AF02-0AX0

Catalog No: 6AV2181-5AF02-0AX0

Series: SIMATIC HMI

Tariff Code (HS): 85444290

Communication: PROFINET

Stock: 0

Delivery time: 10-15 business day(s)

Shipping Origin: Türkiye EXW

$194.33

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

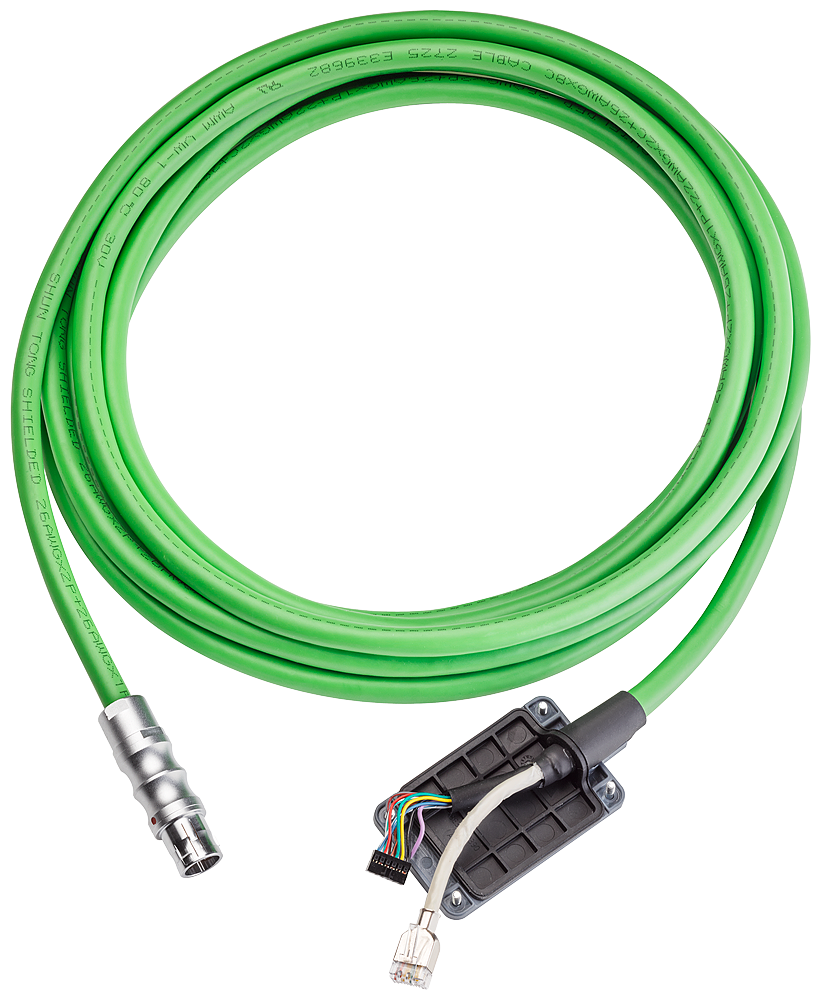

The Siemens 6AV2181-5AF02-0AX0 is a 2-meter PROFINET connecting cable for KTPX00(F) Mobile panels, supplied with a connection compartment cover secured by four screws and a retainer with one screw. It has a green, halogen-free cable sheath rated for a 300N maximum tensile load, operates from 0 to 55°C, and is certified CE, cULus, RCM, and KC.

Technical Specifications

Order Number	6AV2181-5AF02-0AX0
Brand	Siemens
Series	SIMATIC HMI
Product Type Designation	Connecting cable
Cable Length	2 m
Maximum Tensile Load	300 N
Cable Sheath Color	Green
Sheath Material Note	Halogen-free per EN 50267-2-1
Operating Temperature	0 to 55°C
Storage/Transport Temperature	-20 to 60°C
Scope of Supply	1 connecting cable, connection compartment cover with 4 screws, 1 retainer with 1 screw
Suitable for Safety Functions	Yes
Net Weight	0.29 kg
EAN	4047623404392

Certifications & Standards

CE
cULus
RCM
KC

Selection Notes

This cable is specific to KTPX00(F) Mobile PROFINET panels and includes the connection compartment cover and retainer needed to complete the mount, so no separate hardware is needed for the connection. Its 300N tensile rating and halogen-free sheath fit machine-mounted cable runs where the cable flexes or gets dragged during operation.

Technical Details

Short Description

Siemens connecting cable, 2m, PROFINET, for KTPX00(F) Mobile HMI panels, green halogen-free sheath, 300N tensile load.

Catalog No

6AV2181-5AF02-0AX0

Standards

CE mark, cULus, RCM (formerly C-TICK), KC approval, Suitable for safety functions

Delivery Date (Days)

10-15 days

Model Number

6AV2181-5AF02-0AX0

Tariff Code

85444290
