Siemens 3RW5980-0HS00 3RW5 Soft Starter
Description
About the 3RW59
About the 3RW59

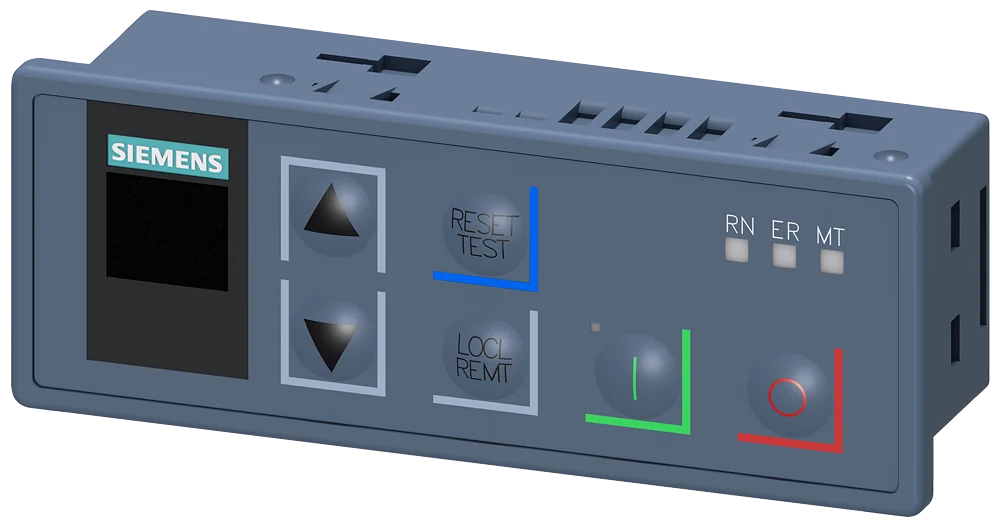

The Siemens 3RW5980-0HS00 is a soft starter from the SENTRON/SIRIUS 3RW5 series. HMI module Standard. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3RW5980-0HS00 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RW5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 8
| product brand name | SIRIUS |
|---|---|
| product category | HMI modules |
| product designation | HMI module |
| design of the product | Standard |
| product type designation | 3RW59 |
| manufacturer's article number of soft starter: ● | 3RW50 |
| Substance Prohibitance (day/month/year) | 02/15/2018 |
| SVHC substance name | Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1 |
Installation/ mounting/ dimensions 5
| mounting position | with vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back |
|---|---|
| fastening method | snap-on mounting |
| height | 36 mm |
| width | 96 mm |
| depth | 32 mm |
Ambient conditions 5
| ambient temperature: during operation | -25 ... +60 °C; Please observe derating at temperatures of 40 °C or above |
|---|---|
| ambient temperature: during storage and transport | -40 ... +80 °C |
| environmental category: during operation according to IEC 60721 | 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| environmental category: during storage according to IEC 60721 | 1K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4 |
| environmental category: during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 (max. height of fall 0.8 m) |
Show all 37 specifications ↓ Show less ↑19 more values in Identification, Electrical Safety, Logistics.
Identification 10
| Part number | 3RW5980-0HS00 |
|---|---|
| Type designation | 3RW59 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047621044095 |
| ETIM class | EC002498 |
| eCl@ss | 27371392 |
Electrical Safety 2
| protection class IP on the front according to IEC 60529 | IP20 |
|---|---|
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
Logistics 7
| Net weight | 0.058 kg |
|---|---|
| Package dimensions | 105 × 43 × 50 mm |
| Country of origin | CZ |
| Shipping weight | 0.558 kg |
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3RW5980-0HS00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3RW59
What is the EAN of 3RW59?
The EAN (GTIN) of 3RW59 is 4047621044095.
Where does 3RW59 ship from, and how fast?
3RW59 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
