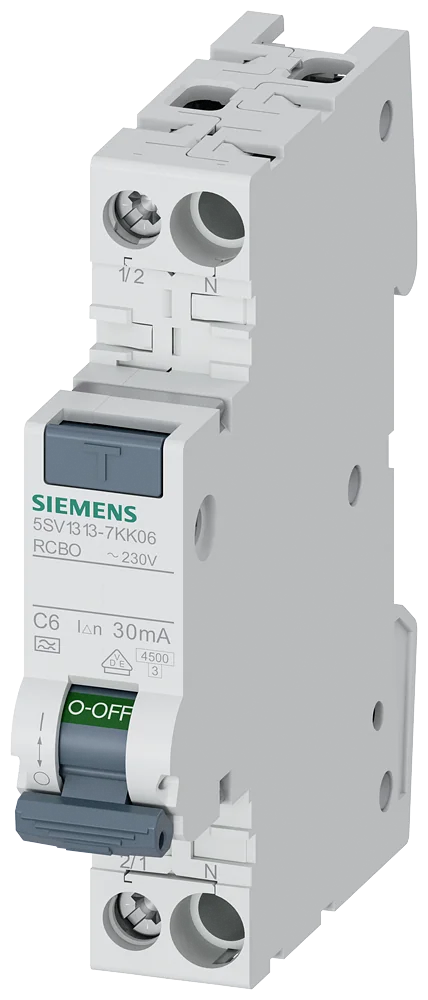

Siemens 5SV1313-7KK06 5SV1 6A 2P Residual Current Device

% $-102.98
Siemens 5SV1313-7KK06 Residual Current Device
Siemens 5SV1313-7KK06 Residual Current Device

Siemens 5SV1313-7KK06 5SV1 6A 2P Residual Current Device

Brand: Siemens
Reference No: 5SV1313-7KK06
Catalog No: 5SV1313-7KK06
Series: 5SV1
Rated Current: 6
Poles: 2P
Other options
6241016
Stock: 1
Delivery time: 1-2 business day(s)
Shipping Origin: Türkiye EXW
$102.98

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 5SV1313-7KK06 is a rcbo from the SENTRON/SIRIUS 5SV1 series. RCBO compact 1 MW 1-pole+N 4.5 kA type A 30 mA C6. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU 5SV1313-7KK06
Brand Siemens
Series 5SV1
Product Type Residual Current Device
Product brand name SENTRON
Product designation RCBO
Design of the product Instantaneous
Number of poles 2
Number of poles with protection 1
Design of pole 1P+N
Tripping characteristic class C
Mechanical service life (operating cycles) typical 10 000
Overvoltage category 3
Degree of pollution 2
Type of voltage of the operating voltage AC
Insulation voltage (Ui) rated value 253 V
Surge voltage resistance rated value 4 000 V
Surge current resistance at (8/20) µs 1 kA
Tripping fault current rated value 30 mA
At 30 °C rated value 6 A
At 40 °C rated value 5.64 A
At 45 °C rated value 5.46 A
Weight 0.126 kg
Country of Origin RO

Applications & Use Cases

The Siemens 5SV1313-7KK06 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 5SV1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)
6
Catalog No
5SV1313-7KK06
Number of Poles
2P
Delivery Date (Days)
1-2 days
Model Number
5SV1
