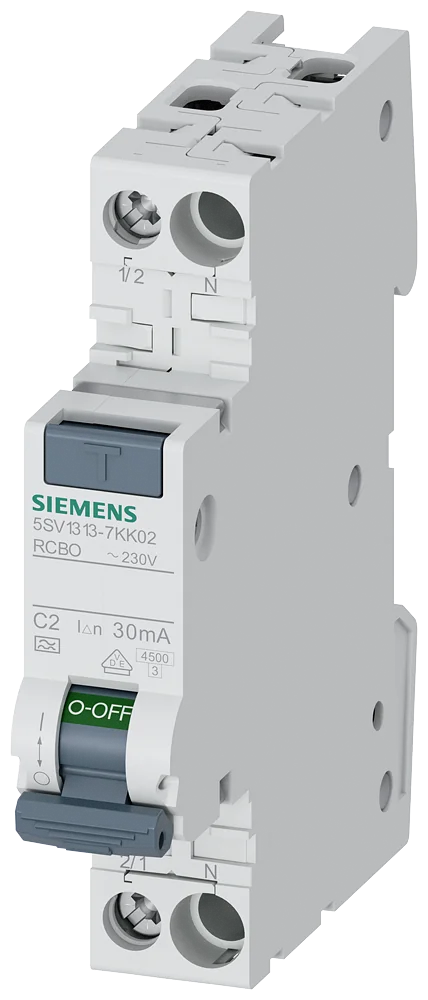

Siemens 5SV1313-7KK02 Residual Current Device

Siemens 5SV1313-7KK02 5SV1 2A 2P Residual Current Device

Name: Siemens 5SV1313-7KK02 5SV1 2A 2P Residual Current Device
Brand: Siemens
SKU: 5SV1313-7KK02
Price: 119.92 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 5SV1313-7KK02

Catalog No: 5SV1313-7KK02

Series: 5SV1

Rated Current: 2A

Poles: 2

Stock: 0

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$119.92

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 5SV1313-7KK02 is a rcbo from the SENTRON/SIRIUS 5SV1 series. RCBO compact 1 MW 1-pole+N 4.5 kA type A 30 mA C2. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	5SV1313-7KK02
Brand	Siemens
Series	5SV1
Product Type	Residual Current Device
Product brand name	SENTRON
Product designation	RCBO
Design of the product	Instantaneous
Number of poles	2
Number of poles with protection	1
Design of pole	1P+N
Tripping characteristic class	C
Overvoltage category	3
Degree of pollution	2
Type of voltage of the operating voltage	AC
Insulation voltage (Ui) rated value	253 V
Surge voltage resistance rated value	4 000 V
Surge current resistance at (8/20) µs	1 kA
Tripping fault current rated value	30 mA
At 30 °C rated value	2 A
At 40 °C rated value	1.9 A
At 45 °C rated value	1.86 A
At 50 °C rated value	1.8 A
Weight	0.1275 kg
Country of Origin	RO

Applications & Use Cases

The Siemens 5SV1313-7KK02 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 5SV1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
