Part number
3UF8200-1AA00-0
Model no
M-CP
$303.22 On request Dispatch — · From TürkiyeGet a Quote
3UF8

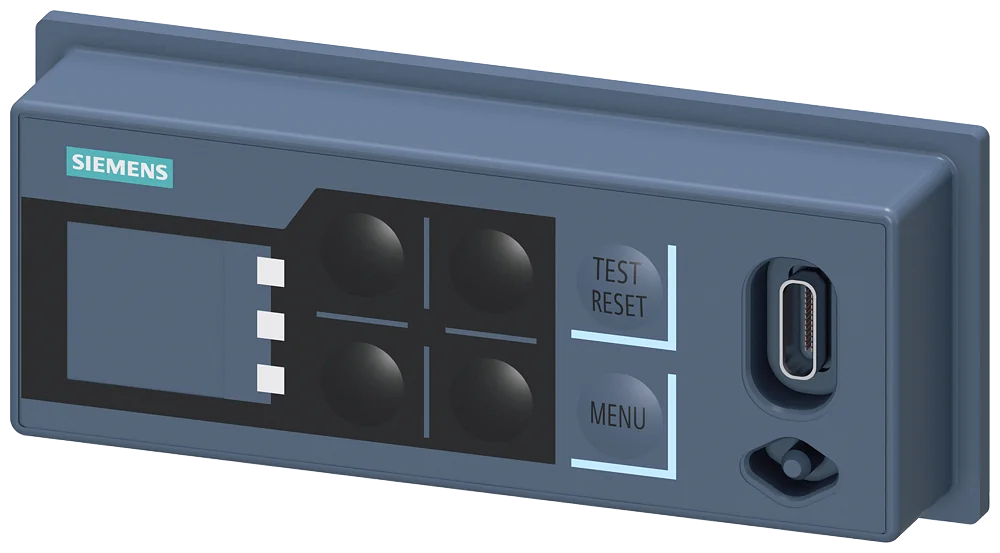

Siemens 3UF8200-1AA00-0 3UF8 Motor Controller

product brand name
SIMOCODE
product designation
operator panels
product type designation
M-CP
EAN
4047621111551
Description

About the M-CP

The Siemens 3UF8200-1AA00-0 is a motor controller from the SENTRON/SIRIUS 3UF8 series. Operator panel with display for SIMOCODE M series, installation on device front or front panel mounting, display with colored background, 3 LEDs for status display, 6 buttons for manual control, USB-C interface. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3UF8200-1AA00-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF8 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

57 values · Last verified 31 Oct 2026

General 3

product brand name SIMOCODE
product designation operator panels
product type designation M-CP

General technical data 11

certificate of suitability CE / RoHS
apparent power consumption 0.5 V·A
consumed active power 0.5 W
protection class IP on the front IP40/IP54
degree of protection NEMA rating 12
shock resistance according to IEC 60068-2-27 15 g / 11 ms
vibration resistance 1 ... 6 Hz / 15 mm; 6 ... 500 Hz / 2 g
number of keys 6
reference code according to IEC 81346-2 A
Substance Prohibitance (day/month/year) 01/01/2024
SVHC substance name 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1

Electromagnetic compatibility 7

EMC emitted interference according to IEC 60947-1 class A
EMC immunity according to IEC 60947-1 corresponds to degree of severity 3
conducted interference: due to burst according to IEC 61000-4-4 1 kV
conducted interference: due to conductor-earth surge according to IEC 61000-4-5 2 kV
conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 1 kV
field-based interference according to IEC 61000-4-3 10 V/m
electrostatic discharge according to IEC 61000-4-2 6/8 kV
Show all 57 specifications ↓ Show less ↑36 more values in Identification, Communication/ Protocol, Installation/ mounting/ dimensions, Ambient conditions, Display, Logistics.

Identification 10

Part number 3UF8200-1AA00-0
Type designation M-CP
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047621111551
ETIM class EC002614
eCl@ss 27370806

Communication/ Protocol 1

design of the interface USB-C

Installation/ mounting/ dimensions 5

mounting position vertical
fastening method front mounting / on basic unit
height 36.3 mm
width 88 mm
depth 25.7 mm

Ambient conditions 11

installation altitude at height above sea level: maximum 4 000 m
installation altitude at height above sea level: 1 maximum 2 000 m
installation altitude at height above sea level: 2 maximum 3 000 m; max. +50 °C (no protective separation)
installation altitude at height above sea level: 3 maximum 4 000 m; max. +40 °C (no protective separation)
ambient temperature: during operation -25 ... +70 °C
ambient temperature: during storage -40 ... +70 °C
ambient temperature: during transport -40 ... +70 °C
environmental category: during operation according to IEC 60721 3K24 (condensation occasionally, no precipitation, no water, no ice formation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3B2, 3S5 (sand must not enter the device), 3M6
environmental category: during storage according to IEC 60721 1K22 (condensation occasionally, no precipitation, no water, no ice formation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1B2, 1S10 (sand must not enter the device), 1M4
environmental category: during transport according to IEC 60721 2K12 (no condensation, no thermal shock), 2B2, 2C1, 2S1, 2M2
relative humidity during operation 5 ... 95 %

Display 2

number of status displays 4
number of displays 1

Logistics 7

Net weight 0.045 kg
Package dimensions 105 × 45 × 35 mm
Country of origin CZ
Shipping weight 0.545 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3UF8200-1AA00-0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the M-CP

What is the EAN of M-CP?

The EAN (GTIN) of M-CP is 4047621111551.

Where does M-CP ship from, and how fast?

M-CP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
