| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 40 | 3UF8110-1AA00-0 | On request | $297.97 | |
| 115 | 3UF8111-1AA00-0This part | On request | $398.64 | |
| 630 | 3UF8112-1AA00-0 | On request | $477.05 |

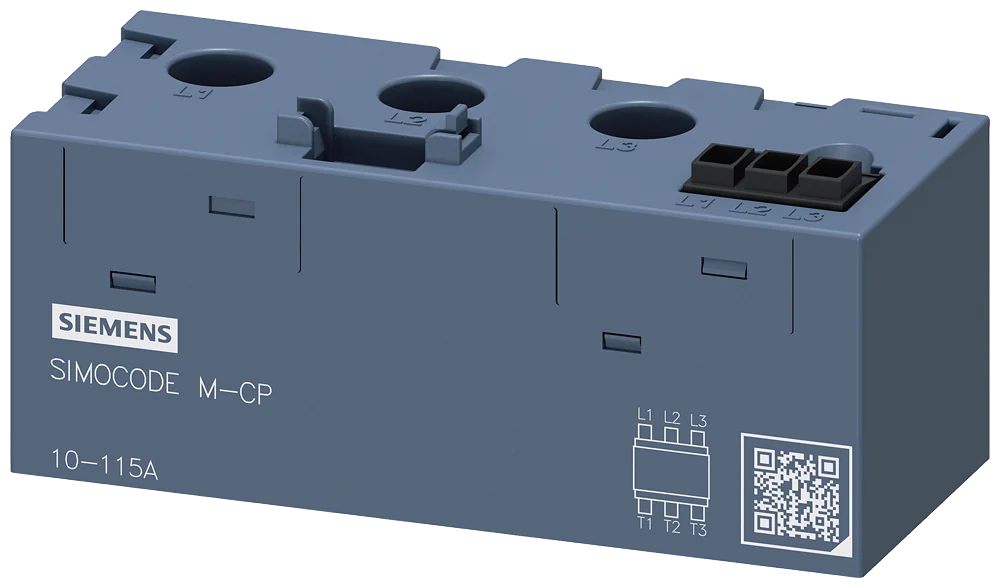

The Siemens 3UF8111-1AA00-0 is a motor controller from the SENTRON/SIRIUS 3UF8 series. Current/voltage measuring module current setting 10 - 115 A, voltage detection up to 690 V, straight-through transformer. Supplied by Stoklink for industrial and commercial low-voltage applications.
The Siemens 3UF8111-1AA00-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF8 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
| product brand name | SIMOCODE |
|---|---|
| product designation | Current/voltage measuring module |
| product type designation | M-CP |
| measuring procedure | RMS value measurement |
|---|---|
| size of the circuit-breaker | S2, S3 |
| product function: current measurement | Yes |
| product function: voltage measurement | Yes |
| product function: active power measurement | Yes |
| product function: energy measurement | Yes |
| product function: frequency measurement | Yes |
| product function: active power monitoring for pump dry-run according to Ignition protection type Ex b | No |
| measuring procedure for current measurement | TRMS |
| current measuring range extension with external current transformers | No |
| measuring procedure for voltage measurement | TRMS |
| measurable supply voltage between the line conductors at AC maximum rated value | 690 V |
| product component: input for thermistor connection | No |
| insulation voltage: with degree of pollution 3 at AC rated value | 690 V |
| insulation voltage: for wires of main circuit according to IEC 60947-1 rated value | 6 kV |
| surge voltage resistance rated value | 6 000 V |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance | 1 ... 6 Hz / 15 mm; 6 ... 500 Hz / 2 g |
| reference code according to IEC 81346-2 | F |
| Substance Prohibitance (day/month/year) | 01/01/2024 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 |
| EMC emitted interference according to IEC 60947-1 | class A |
|---|---|
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference: due to burst according to IEC 61000-4-4 | 2 kV |
| conducted interference: due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Part number | 3UF8111-1AA00-0 |
|---|---|
| Type designation | M-CP |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047621102504 |
| ETIM class | EC002572 |
| eCl@ss | 27370804 |
| number of outputs as contact-affected switching element | 0 |
|---|
| product function: power factor monitoring | Yes |
|---|---|
| product function: ground-fault monitoring | Yes |
| product function: voltage detection | Yes |
| trip class | CLASS 5E, 7E, 10E, 15E, 20E, 25E, 30E, 35E and 40E adjustable |
| product function: current detection | Yes |
| product function: overload protection | Yes |
| measuring precision: of frequency measurement | +/- 1.5 %, 7.5 ... 230 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C |
|---|---|
| measuring precision: for current measurement 1 | +/- 1.5 %, in range 7.5 A ... 230 A, in range 0.85 x 110 V ... 1.1 x 690 V (line-to- line voltages), 50/60 Hz, 25 °C |
| measuring precision: for current measurement 2 | +/- 3%, in range 230 A ... 920 A, in range 0.85 x 110 V ... 1.1 x 690 V (line-to- line voltages), 50/60 Hz, 25 °C |
| measuring precision: for voltage measurement 1 | +/- 1.5 %, in range 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C |
| measuring precision: at cos phi-measurement 1 | +/- 3%, 7.5 A ... 230 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.4...1), 50/60 Hz, 25 °C |
| measuring precision: at cos phi-measurement 2 | +/- 5%, 230 A ... 920 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.4...1), 50/60 Hz, 25 °C |
| measuring precision: for active power measurement 1 | +/- 5%, 7.5 A ... 230 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.4...1), 50/60 Hz, 25 °C |
| measuring precision: for active power measurement 2 | +/- 10%, 230 A ... 920 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.4...1), 50/60 Hz, 25 °C |
| measuring precision: for energy measurement 1 | +/- 5%, 7.5 A ... 230 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.4...1), 50/60 Hz, 25 °C |
| measuring precision: for energy measurement 2 | +/- 10%, 230 A ... 920 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.4...1), 50/60 Hz, 25 °C |
| measuring precision: for apparent power measurement 1 | +/- 3%, 7.5 A ... 230 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.4...1), 50/60 Hz, 25 °C |
| measuring precision: for apparent power measurement 2 | +/- 5%, 230 A ... 920 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.4...1), 50/60 Hz, 25 °C |
| accuracy of ground-fault monitoring | In the range 30 % .. 120 %/Is: +/- 10 % (Class CI-A), in range 15 % .. 30 % Ie: +/- 25 % (Class CI-B), both values acc. to IEC 60947-1 Annex T |
| temperature drift per °C | Reference temperature: 25°C |
| measured variable frequency | 45 ... 65 Hz |
| mounting position | any |
|---|---|
| fastening method | screw and snap-on mounting |
| height | 55.2 mm |
| width | 121.3 mm |
| depth | 50.5 mm |
| required spacing: top | 30 mm |
| required spacing: bottom | 30 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| diameter of inlet opening | 14 mm |
| diameter of inlet opening for current measurement | 14 mm |
| type of electrical connection: for main current circuit | straight-through transformers |
|---|---|
| type of electrical connection at the measurement inputs for voltage | screw-type terminals |
| type of connectable conductor cross-sections at the measurement inputs for voltage: finely stranded with core end processing | 1x (0.25 ... 2.5 mm2), 2x (0.25 ... 1.0 mm2) |
| tightening torque at the measurement inputs for voltage | 0.5 ... 0.6 N·m |
| tightening torque [lbf·in] at the measurement inputs for voltage | 4.4 ... 5.3 lbf·in |
| installation altitude at height above sea level: 1 maximum | 2 000 m |
|---|---|
| installation altitude at height above sea level: 2 maximum | 3 000 m; max. +50 °C (no protective separation) |
| installation altitude at height above sea level: 3 maximum | 4 000 m; max. +40 °C (no protective separation) |
| ambient temperature: during operation | -25 ... +70 °C |
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| environmental category: during operation according to IEC 60721 | 3K24 (condensation occasionally, no precipitation, no water, no ice formation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3B2, 3S5 (sand must not enter the device), 3M6 |
| environmental category: during storage according to IEC 60721 | 1K22 (condensation occasionally, no precipitation, no water, no ice formation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1B2, 1S10 (sand must not enter the device), 1M4 |
| environmental category: during transport according to IEC 60721 | 2K12 (no condensation, no thermal shock), 2C1 (no salt mist), 2B2, 2S1, 2M2 |
| relative humidity during operation | 5 ... 95 % |
| product function short circuit protection | No |
|---|
| Safety Integrity Level (SIL) according to IEC 61508 | 1 |
|---|
| certificate of suitability: IECEx | Yes; IECEx BVS 25.0051 X |
|---|---|
| certificate of suitability: according to ATEX directive 2014/34/EU | BVS 25 ATEX F001 X |
| explosion device group and category according to ATEX directive 2014/34/EU | II (2) G, II (2 ) D, I (M2) / I (M2), II (1/2) G, II (1G/2D) |
| (electrically) protective separation according to IEC 60947-1 | all circuits with protective separation (double clearances and creepage distances) |
|---|
| number of poles for main current circuit | 3 |
|---|---|
| adjustable current response value current of the current-dependent overload release | 11.5 ... 115 A |
| at AC: at 50 Hz rated value | 110 ... 690 V |
| at AC: at 60 Hz rated value | 110 ... 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| type of voltage | AC |
|---|---|
| inrush current maximum | 1 150 A; 10 x Io |
| Net weight | 0.35 kg |
|---|---|
| Package dimensions | 137 × 63 × 58 mm |
| Country of origin | CZ |
| Shipping weight | 0.85 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheet| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 40 A | 3UF8110-1AA00-0 | 3UF8 | On request | — | $297.97 | Quote | |
| 115 A | 3UF8111-1AA00-0 This part | 3UF8 | On request | — | $398.64 | Quote | |
| 630 A | 3UF8112-1AA00-0 | 3UF8 | On request | — | $477.05 | Quote |
The rated current of M-CP is 115 A.
The rated operational voltage of M-CP is 690 V AC.
The EAN (GTIN) of M-CP is 4047621102504.
M-CP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
