Part number
3UF8011-2AU00-0
Model no
M-CP
$781.53 On request Dispatch — · From TürkiyeGet a Quote
3UF8

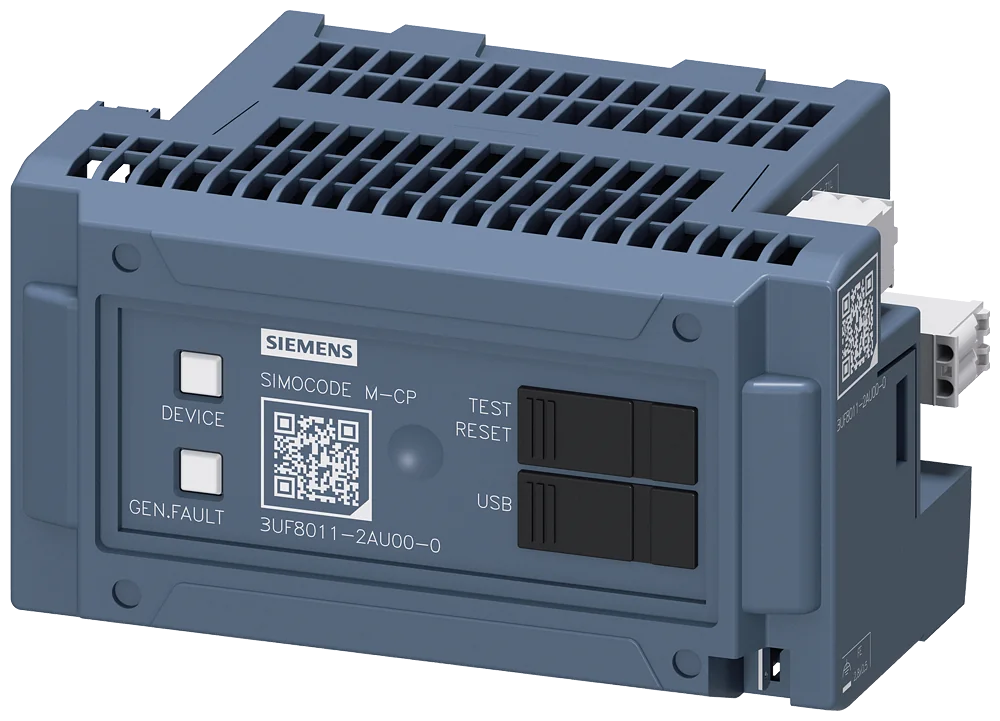

Siemens 3UF8011-2AU00-0 3UF8 240V Motor Controller

Rated operational voltage
240 V AC
EAN
4047621120256
Description

About the M-CP

The Siemens 3UF8011-2AU00-0 is a motor controller from the SENTRON/SIRIUS 3UF8 series. Basic device SIMOCODE M-CP MCC, Single Pair Ethernet, 10BASE-T1L IEEE 802.3cg SPE, PROFINET IO, OPC UA and web server, 1 bus connection 3-pole terminal, Us: 110-240 V AC/DC, 6 I/4 O freely configurable, input for thermistor, input for ground fault transformer 3UL23. Supplied by Stoklink for industrial and commercial low-voltage applications.

Certifications & Standards

  • UL2302-1
  • UL2303-1
  • UL2304-1
  • UL2305-1
  • UL2306-1
  • UL2307-1

Applications & Use Cases

The Siemens 3UF8011-2AU00-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF8 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

226 values · Last verified 31 Oct 2026

General 9

product brand name SIMOCODE
product designation Motor management system
product type designation M-CP
manufacturer's article number: 1 of residual current transformer connectable 3UL2302-1A
manufacturer's article number: 2 of residual current transformer connectable 3UL2303-1A
manufacturer's article number: 3 of residual current transformer connectable 3UL2304-1A
manufacturer's article number: 4 of residual current transformer connectable 3UL2305-1A
manufacturer's article number: 5 of residual current transformer connectable 3UL2306-1A
manufacturer's article number: 6 of residual current transformer connectable 3UL2307-1A

General technical data 49

certificate of suitability CE / RoHS
product function: current measurement No
product function: voltage measurement No
product function: active power measurement Yes
product function: energy measurement No
product function: frequency measurement No
product function: bus communication Yes
product function: automatic start Yes
product function: data acquisition function Yes
product function: diagnostics function Yes
product function: residual current display Yes
product function: password protection Yes
product function: test function Yes
product function: maintenance function Yes
product function: MRRT redundancy procedure No
product feature protective coating on printed-circuit board No; on request
product component: input for thermistor connection Yes
product component: digital input Yes
product component: input for residual current converter Yes
product component: input for analog temperature sensors No
product component: input for ground fault detection Yes
product component: relay output Yes
product extension: temperature monitoring module No
product extension: current measuring module No
product extension: current/voltage measuring module Yes
product extension: fail-safe digital I/O module No
product extension: ground-fault monitoring module No
product extension: decoupling module No
product extension: analog I/O module No
product extension: digital I/O module with monostable outputs No
product extension: digital I/O module with bistable outputs No
product extension: control unit with display Yes
product extension: control unit No
apparent power consumption 6.5 V·A
consumed active power 3.1 W
insulation voltage with degree of pollution 3 at AC rated value 250 V
surge voltage resistance rated value 4 000 V
shock resistance: according to IEC 60068-2-27 15 g / 11 ms
shock resistance: vibration resistance 1 ... 6 Hz / 15 mm; 6 ... 500 Hz / 2 g
switching capacity current of the NO contacts of the relay outputs at AC-15: at 24 V 6 A
mechanical service life (operating cycles) typical 10 000 000
electrical endurance (operating cycles) typical 100 000
buffering time in the event of power failure 0.2 s
adjustable current response value current 1 initial value 0.03 A
adjustable current response value current 1 full-scale value 40 A
reference code according to IEC 81346-2 F
continuous current of the NO contacts of the relay outputs: at 50 °C 6 A
Substance Prohibitance (day/month/year) 01/01/2024
SVHC substance name Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-No. 80-05-7

Sensor 2

measurable line frequency initial value 20 Hz
measurable line frequency full-scale value 120 Hz
Show all 226 specifications ↓ Show less ↑166 more values in Identification, Electromagnetic compatibility, Inputs/ Outputs, Protective and monitoring functions, Motor control functions, Communication/ Protocol, Installation/ mounting/ dimensions, Connections/ Terminals, Ambient conditions, Short-circuit protection, Electrical Safety, ATEX, Galvanic isolation, Main circuit, Control circuit/ Control, Logistics.

Identification 10

Part number 3UF8011-2AU00-0
Type designation M-CP
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047621120256
ETIM class EC002572
eCl@ss 27370804

Electromagnetic compatibility 10

EMC emitted interference according to IEC 60947-1 class A
EMC immunity according to IEC 60947-1 corresponds to degree of severity 3
conducted interference: due to burst according to IEC 61000-4-4 2 kV (power ports) / 1 kV (signal ports)
conducted interference: due to conductor-earth surge according to IEC 61000-4-5 2 kV
conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 1 kV
conducted interference: due to high-frequency radiation according to IEC 61000-4-6 10 V
field-based interference according to IEC 61000-4-3 10 V/m
electrostatic discharge according to IEC 61000-4-2 6 kV contact discharge / 8 kV air discharge
conducted HF interference emissions according to CISPR11 corresponds to degree of severity A
field-bound HF interference emission according to CISPR11 corresponds to degree of severity A

Inputs/ Outputs 21

product function: parameterizable inputs Yes
product function: parameterizable outputs Yes
number of inputs 6
for thermistor connection 1
number of digital inputs with a common reference potential 5
digital input version: type 1 acc. to IEC 61131 No
digital input version: type 2 acc. to IEC 61131 No
number of analog inputs 0
number of sensor inputs for ground fault detection 1
input voltage at digital input at DC: ● 110 ... 240 V
input voltage at digital input at AC 110 ... 240 V
number of outputs 4
number of semiconductor outputs 0
number of outputs as contact-affected switching element 4
number of analog outputs 0
switching behavior monostable
number of relay outputs 4
type of relay outputs Monostable
wire length for digital signals maximum 400 m
wire length between sensor and electronics evaluation device with Cu 1.5 mm2 and 150 nF/km maximum 400 m
wire length for thermistor connection: with conductor cross-section = 0.5 mm2 maximum 50 m

Protective and monitoring functions 25

product function: asymmetry detection Yes
product function: blocking current evaluation Yes
product function: power factor monitoring Yes
product function: ground fault detection Yes
product function: ground-fault monitoring Yes
product function: phase failure detection Yes
product function: phase sequence recognition Yes
product function: voltage detection Yes
product function: monitoring of number of start operations Yes
product function: overvoltage detection Yes
product function: overcurrent detection 1 phase Yes
product function: undervoltage detection Yes
product function: undercurrent detection 1 phase Yes
product function: active power monitoring Yes
type of current for monitoring AC current and pulsating DC current (type A) acc. to IEC 62020-1
response time maximum 100 ms
diagnostics function at sensor input with residual current transformer short-circuit detection Yes
relative measurement deviation of residual current transformer 2.5 %
product function: current detection Yes
product function: overload protection Yes
product function: evaluation of thermistor motor protection Yes
total cold resistance number of sensors in series maximum 1.5 kΩ
response value of thermoresistor 3 400 ... 3 800 Ω
of the short-circuit control 9Ω
release value of thermoresistor 1 500 ... 1 650 Ω

Motor control functions 12

product function: parameterizable overload relay Yes
product function: circuit breaker control Yes
product function: direct start Yes
product function: reverse starting Yes
product function: star-delta circuit Yes
product function: star-delta reversing circuit Yes
product function: Dahlander circuit Yes
product function: Dahlander reversing circuit No
product function: pole-changing switch circuit Yes
product function: pole-changing switch reversing circuit Yes
product function: slide control Yes
product function: valve control Yes

Communication/ Protocol 31

protocol is supported: PROFIBUS DP protocol No
protocol is supported: PROFINET IO protocol Yes
protocol is supported: PROFIsafe protocol No
protocol is supported: Modbus RTU No
protocol is supported: Modbus TCP Yes
protocol is supported: EtherNet/IP Yes
protocol is supported: OPC UA Server Yes
protocol is supported: LLDP Yes
protocol is supported: Address Resolution Protocol (ARP) Yes
protocol is supported: SNMP Yes
protocol is supported: HTTPS Yes
protocol is supported: NTP Yes
protocol is supported: Media Redundancy Protocol (MRP) No
product function: web server Yes
product function: shared device Yes
product function: at the Ethernet interface Autocrossover No
product function: at the Ethernet interface Autonegotiation Yes
product function: at the Ethernet interface Autosensing No
product function: Media Redundancy Protocol for Planned Duplication (MRPD) No
product function: is supported Device Level Ring (DLR) No
product function: is supported PROFINET system redundancy (S2) Yes
product function: supports PROFIenergy measured values No
product function: supports PROFIenergy shutdown No
transfer rate 10 Mbit/s
transfer rate maximum 10 Mbit/s
PROFINET conformity class B
identification & maintenance function: I&M0 - device-specific information Yes
identification & maintenance function: I&M1 - higher level designation/location designation Yes
identification & maintenance function: I&M2 - installation date Yes
identification & maintenance function: I&M3 - comment Yes
type of electrical connection of the communication interface spring-loaded terminal (push-in)

Installation/ mounting/ dimensions 9

mounting position any
fastening method screw and snap-on mounting
height 65.6 mm
width 118 mm
depth 77.5 mm
required spacing: top 10 mm
required spacing: bottom 20 mm
required spacing: left 0 mm
required spacing: right 0 mm

Connections/ Terminals 14

product component removable terminal for auxiliary and control circuit Yes
type of electrical connection: for auxiliary and control circuit spring-loaded terminals (push-in)
type of electrical connection: of the relay outputs spring-loaded terminal (push-in)
type of electrical connection: of the thermistor connection spring-loaded terminal (push-in)
type of electrical connection: of the fail-safe digital input spring-loaded terminal (push-in)
type of electrical connection: of the connection for ground fault input spring-loaded terminal (push-in)
type of electrical connection: of the 1-Wire® connection spring-loaded terminal (push-in)
type of electrical connection: of Industrial Ethernet interface spring-loaded terminal (push-in)
type of connectable conductor cross-sections: for supply voltage for AWG cables solid 1x (24 ... 12)
type of connectable conductor cross-sections: of the relay outputs solid 1x (0.2 ... 2.5 mm2)
type of connectable conductor cross-sections: of the 1-Wire® connection solid 1x (0.2 ... 1.5 mm2)
type of connectable conductor cross-sections: of the connection for ground fault input solid 1x (0.2 ... 1.5 mm2)
type of connectable conductor cross-sections: of the fail-safe digital input solid 1x (0.2 ... 1.5 mm2)
type of connectable conductor cross-sections: of the thermistor connection solid 1x (0.2 ... 1.5 mm2)

Ambient conditions 9

installation altitude at height above sea level maximum 2 000 m
ambient temperature: during operation -25 ... +60 °C
ambient temperature: during storage -40 ... +80 °C
ambient temperature: during transport -40 ... +80 °C
environmental category: during operation according to IEC 60721 3K24 (condensation occasionally, no precipitation, no water, no ice formation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3B2, 3S5 (sand must not enter the device), 3M6
environmental category: during storage according to IEC 60721 1K22 (condensation occasionally, no precipitation, no water, no ice formation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1B2, 1S10 (sand must not enter the device), 1M4
environmental category: during transport according to IEC 60721 2K12 (no condensation, no thermal shock), 2C1 (no salt mist), 2B2, 2S1, 2M2
relative humidity: during operation 5 ... 95 %
contact rating of auxiliary contacts according to UL B300 / R300

Short-circuit protection 1

design of short-circuit protection per output fuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit breaker C-Char: 2 A (@1 kA) and 6 A (I_K < 500 A)

Electrical Safety 1

touch protection against electrical shock finger-safe

ATEX 3

certificate of suitability: IECEx Yes; IECEX BVS 25.0051 X
certificate of suitability: according to ATEX directive 2014/34/EU BVS 25 ATEX F001 X
explosion device group and category according to ATEX directive 2014/34/EU I (M2), II (2) G, II (2) D / I (M2), II (1/2) G, II (1G/2D)

Galvanic isolation 2

(electrically) protective separation according to IEC 60947-1 all circuits with protective separation (double clearances and creepage distances)
design of the electrical isolation Protective separation in accordance with IEC 60947-1 for all circuits

Main circuit 1

operating frequency rated value 50 ... 60 Hz

Control circuit/ Control 10

product function soft starter control Yes
type of voltage of the control supply voltage AC/DC
control supply voltage at AC: at 50 Hz rated value 110 ... 240 V
control supply voltage at AC: at 60 Hz rated value 110 ... 240 V
control supply voltage frequency: 1 rated value 50 Hz
control supply voltage frequency: 2 rated value 60 Hz
relative symmetrical tolerance of the control supply voltage frequency 5%
operating range factor control supply voltage rated value at DC: initial value 0.85
inrush current peak: at 240 V 10 A
duration of inrush current peak: at 240 V 0.5 ms

Logistics 7

Net weight 0.38 kg
Package dimensions 135 × 102 × 73 mm
Country of origin CZ
Shipping weight 0.88 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3UF8011-2AU00-0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL2302-1
  • UL2303-1
  • UL2304-1
  • UL2305-1
  • UL2306-1
  • UL2307-1
Quick answers

Questions about the M-CP

Which supply voltage is M-CP rated for?

The rated operational voltage of M-CP is 240 V AC.

What is the EAN of M-CP?

The EAN (GTIN) of M-CP is 4047621120256.

Where does M-CP ship from, and how fast?

M-CP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.

Guides

Guides for motor starters

All guides for motor starters
Reviews

Customer reviews

Series

Siemens 3UF8

Brand
Siemens
Series
3UF8
$781.53 On request
Get a Quote
Quote

Get a Quote

M-CP

Genuine parts

Genuine, factory-sealed parts

Siemens · 3UF8011-2AU00-0

Every part on Stoklink is new, unused and made by the manufacturer named on the page.

Condition
New and unused, in the manufacturer's factory-sealed packaging.
Sourced from
Siemens and its authorised distributors.
Warranty
The manufacturer's warranty applies.
If a part is not genuine
We refund the full amount.

Added to cart Could not add to cart

View cart
