Part number
3UF7700-1AA00-0
Model no
TM
$328.27 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3UF7

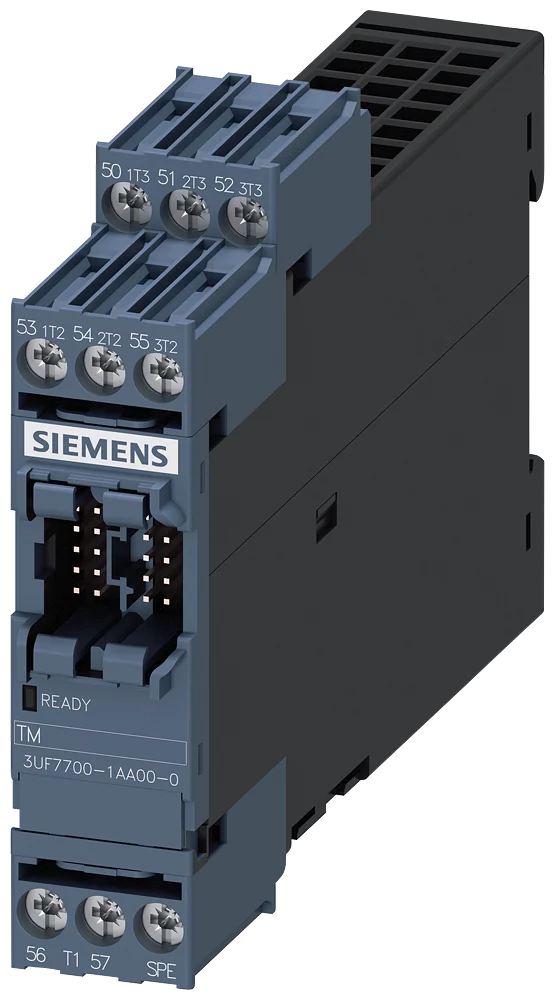

Siemens 3UF7700-1AA00-0 3UF7 Motor Controller

product brand name
SIMOCODE
product designation
temperature module
product type designation
TM
EAN
4011209628397
Description

About the TM

The Siemens 3UF7700-1AA00-0 is a motor controller from the SENTRON/SIRIUS 3UF7 series. Temperature module, 3 inputs for connection of up to 3 temperature sensors, for SIMOCODE pro V basic unit. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3UF7700-1AA00-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

97 values · Last verified 31 Oct 2026

General 3

product brand name SIMOCODE
product designation temperature module
product type designation TM

General technical data 23

product component: input for thermistor connection No
product component: input for analog temperature sensors Yes
product component: input for ground fault detection No
consumed active power 0.2 W
surge voltage resistance rated value 4 000 V
shock resistance according to IEC 60068-2-27 15 g / 11 ms
vibration resistance according to IEC 60068-2-6 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2 g
reference code according to IEC 81346-2 B
measurable temperature: initial value -50 °C
measurable temperature: full-scale value 500 °C
Substance Prohibitance (day/month/year) 05/01/2012
SVHC substance name Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1
measurable temperature: with NTC minimum 80 °C
measurable temperature: with NTC maximum 160 °C
measurable temperature: with KTY 84 minimum -40 °C
measurable temperature: with KTY 84 maximum 300 °C
measurable temperature: with KTY 83-110 minimum -50 °C
measurable temperature: with KTY 83-110 maximum 175 °C
measurable temperature: with Pt 1000 minimum -50 °C
measurable temperature: with Pt 1000 maximum 500 °C
measurable temperature: with Pt 100 minimum -50 °C
measurable temperature: with Pt 100 maximum 500 °C
relative temperature-related measurement deviation at 20 2%

°C 14

sensor current for Pt 100 typical 1 mA
sensor current for Pt 1000/KTY 83-110/KTY 84/NTC typical 0.2 mA
diagnostics function at sensor input with Pt 100: short-circuit detection Yes
diagnostics function at sensor input with Pt 100: open-circuit detection Yes
diagnostics function at sensor input with Pt 1000: short-circuit detection Yes
diagnostics function at sensor input with Pt 1000: open-circuit detection Yes
diagnostics function at sensor input with KTY 83-110: short-circuit detection Yes
diagnostics function at sensor input with KTY 83-110: open-circuit detection Yes
diagnostics function at sensor input with KTY 84: short-circuit detection Yes
diagnostics function at sensor input with KTY 84: open-circuit detection Yes
diagnostics function at sensor input with NTC: short-circuit detection Yes
diagnostics function at sensor input with NTC: open-circuit detection No
type of connection technology of sensor circuit 2-wire or 3-wire connection
A/D conversion time at sensor circuit 500 ms
Show all 97 specifications ↓ Show less ↑57 more values in Identification, Electromagnetic compatibility, Inputs/ Outputs, Protective and monitoring functions, Precision, Installation/ mounting/ dimensions, Connections/ Terminals, Ambient conditions, Electrical Safety, Galvanic isolation, Logistics.

Identification 10

Part number 3UF7700-1AA00-0
Type designation TM
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209628397
ETIM class EC002613
eCl@ss 27370805

Electromagnetic compatibility 6

EMC emitted interference according to IEC 60947-1 class A
EMC immunity according to IEC 60947-1 corresponds to degree of severity 3
conducted interference: due to burst according to IEC 61000-4-4 1 kV
conducted interference: due to conductor-earth surge according to IEC 61000-4-5 2 kV
conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 1 kV
field-based interference according to IEC 61000-4-3 10 V/m

Inputs/ Outputs 5

number of inputs 3
number of digital inputs 0
number of analog inputs 3
number of outputs as contact-affected switching element 0
number of analog outputs 0

Protective and monitoring functions 1

design of the sensor for temperature measurement connectable PT100 / PT1000 / KTY83-110 / KTY84 / NTC

Precision 1

temperature drift per °C 0.05 %/°C

Installation/ mounting/ dimensions 9

mounting position any
fastening method screw and snap-on mounting
height 92 mm
width 22.5 mm
depth 124 mm
required spacing: top 40 mm
required spacing: bottom 40 mm
required spacing: left 0 mm
required spacing: right 0 mm

Connections/ Terminals 6

type of electrical connection for auxiliary and control circuit screw-type terminals
type of connectable conductor cross-sections: solid 1x (0.5 ... 4.0mm2), 2x (0.5 ... 2.5 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 1x (0.5 ... 2.5 mm2), 2x (0.5 ... 1.5 mm2)
type of connectable conductor cross-sections: for AWG cables solid 1x (20 ... 14), 2x (20 ... 16)
tightening torque with screw-type terminals 0.8 ... 1.2 N·m
tightening torque [lbf·in] with screw-type terminals 7 ... 10.3 lbf·in

Ambient conditions 10

installation altitude at height above sea level: 1 maximum 2 000 m
installation altitude at height above sea level: 2 maximum 3 000 m; max. +50 °C (no protective separation)
installation altitude at height above sea level: 3 maximum 4 000 m; max. +40 °C (no protective separation)
ambient temperature: during operation -25 ... +60 °C
ambient temperature: during storage -40 ... +80 °C
ambient temperature: during transport -40 ... +80 °C
environmental category: during operation according to IEC 60721 3K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
environmental category: during storage according to IEC 60721 3K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
environmental category: during transport according to IEC 60721 3K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
relative humidity during operation 5 ... 95 %

Electrical Safety 1

touch protection against electrical shock finger-safe

Galvanic isolation 1

galvanic isolation between inputs and electronics No

Logistics 7

Net weight 0.11 kg
Package dimensions 150 × 113 × 30 mm
Country of origin DE
Shipping weight 0.61 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 31 Oct 2026
