Part number
3UF7600-1AU01-0
Model no
MM
$310.18 On request Dispatch — · From TürkiyeGet a Quote
3UF7

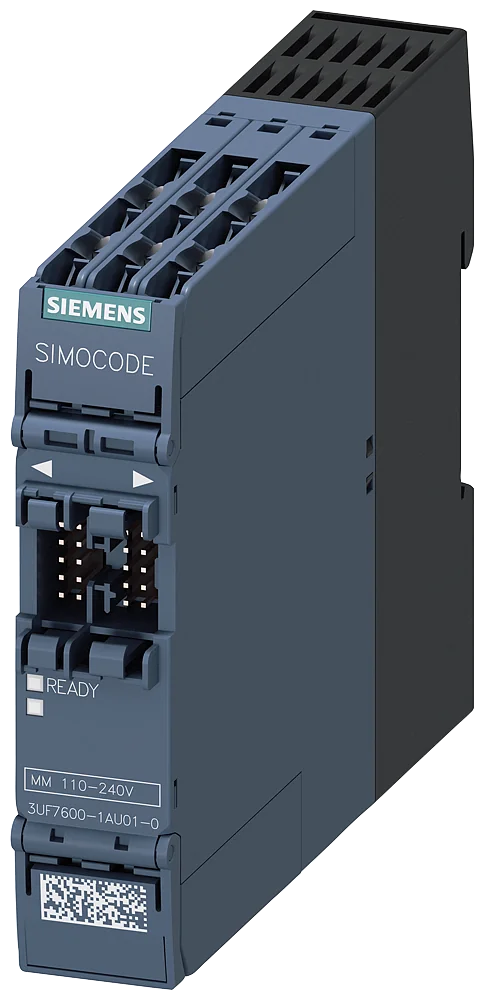

Siemens 3UF7600-1AU01-0 3UF7 240V Motor Controller

Rated operational voltage
240 V AC
EAN
4011209916234
Description

About the MM

The Siemens 3UF7600-1AU01-0 is a motor controller from the SENTRON/SIRIUS 3UF7 series. Multifunction module, 4 inputs and 2 relay outputs, input voltage 110-240 V AC/DC relay outputs monostable, analog residual current detection, with residual-current transformer 3UL23 connection temperature sensor Pt100/Pt1000/KTY/NTC, max. 1 multifunction module per basic device SIMOCODE pro S. Supplied by Stoklink for industrial and commercial low-voltage applications.

Certifications & Standards

  • UL2302-1
  • UL2303-1
  • UL2304-1
  • UL2305-1
  • UL2306-1
  • UL2307-1

Applications & Use Cases

The Siemens 3UF7600-1AU01-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

150 values · Last verified 31 Oct 2026

General 9

product brand name SIMOCODE
product designation Multifunction module
product type designation MM
manufacturer's article number: 1 of residual current transformer connectable 3UL2302-1A
manufacturer's article number: 2 of residual current transformer connectable 3UL2303-1A
manufacturer's article number: 3 of residual current transformer connectable 3UL2304-1A
manufacturer's article number: 4 of residual current transformer connectable 3UL2305-1A
manufacturer's article number: 5 of residual current transformer connectable 3UL2306-1A
manufacturer's article number: 6 of residual current transformer connectable 3UL2307-1A

General technical data 34

product function residual current display Yes
adjustable current response value current 40 ... 0.03 A
product component: input for thermistor connection No
product component: digital input Yes
product component: input for residual current converter Yes
product component: input for analog temperature sensors Yes
product component: input for ground fault detection Yes
product component: relay output Yes
consumed active power 0.8 W
insulation voltage with degree of pollution 3 at AC rated value 300 V
surge voltage resistance rated value 4 000 V
shock resistance: when mounted on current measuring module according to IEC 60068-2-27 10 g / 11 ms
shock resistance: according to IEC 60068-2-27 15 g / 11 ms
vibration resistance: according to IEC 60068-2-6 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2 g
vibration resistance: when mounted on current measuring module according to IEC 60068-2-6 1 ... 4 Hz / 15 mm, 4 ... 500 Hz / 1g
switching capacity current of the NO contacts of the relay outputs at AC-15: at 24 V 6 A
mechanical service life (operating cycles) typical 10 000 000
electrical endurance (operating cycles) typical 100 000
buffering time in the event of power failure 0 s
reference code according to IEC 81346-2 K
continuous current of the NO contacts of the relay outputs: at 50 °C 6 A
Substance Prohibitance (day/month/year) 05/01/2012
SVHC substance name Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1
measurable temperature: with NTC minimum 80 °C
measurable temperature: with NTC maximum 160 °C
measurable temperature: with KTY 84 minimum -40 °C
measurable temperature: with KTY 84 maximum 300 °C
measurable temperature: with KTY 83-110 minimum -50 °C
measurable temperature: with KTY 83-110 maximum 175 °C
measurable temperature: with Pt 1000 minimum -50 °C
measurable temperature: with Pt 1000 maximum 500 °C
measurable temperature: with Pt 100 minimum -50 °C
measurable temperature: with Pt 100 maximum 500 °C
relative temperature-related measurement deviation at 20 2%

°C 16

sensor current for Pt 100 typical 1 mA
sensor current for Pt 1000/KTY 83-110/KTY 84/NTC typical 0.2 mA
diagnostics function at sensor input with Pt 100: short-circuit detection Yes
diagnostics function at sensor input with Pt 100: open-circuit detection Yes
diagnostics function at sensor input with Pt 1000: short-circuit detection Yes
diagnostics function at sensor input with Pt 1000: open-circuit detection Yes
diagnostics function at sensor input with KTY 83-110: short-circuit detection Yes
diagnostics function at sensor input with KTY 83-110: open-circuit detection Yes
diagnostics function at sensor input with KTY 84: short-circuit detection Yes
diagnostics function at sensor input with KTY 84: open-circuit detection Yes
diagnostics function at sensor input with NTC: short-circuit detection Yes
diagnostics function at sensor input with NTC: open-circuit detection No
type of connection technology of sensor circuit 2-wire or 3-wire connection
A/D conversion time at sensor circuit 500 ms
measurable line frequency initial value 16 Hz
measurable line frequency full-scale value 400 Hz
Show all 150 specifications ↓ Show less ↑91 more values in Identification, Electromagnetic compatibility, Inputs/ Outputs, Protective and monitoring functions, Precision, Installation/ mounting/ dimensions, Connections/ Terminals, Ambient conditions, Short-circuit protection, Electrical Safety, ATEX, Galvanic isolation, Control circuit/ Control, Logistics.

Identification 10

Part number 3UF7600-1AU01-0
Type designation MM
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209916234
ETIM class EC002613
eCl@ss 27370805

Electromagnetic compatibility 10

EMC emitted interference according to IEC 60947-1 class A
EMC immunity according to IEC 60947-1 corresponds to degree of severity 3
conducted interference: due to burst according to IEC 61000-4-4 2 kV (power ports) / 1 kV (signal ports)
conducted interference: due to conductor-earth surge according to IEC 61000-4-5 2 kV
conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 1 kV
conducted interference: due to high-frequency radiation according to IEC 61000-4-6 10 V
field-based interference according to IEC 61000-4-3 10 V/m
electrostatic discharge according to IEC 61000-4-2 6 kV contact discharge / 8 kV air discharge
conducted HF interference emissions according to CISPR11 corresponds to degree of severity A
field-bound HF interference emission according to CISPR11 corresponds to degree of severity A

Inputs/ Outputs 18

product function: parameterizable inputs Yes
product function: parameterizable outputs Yes
number of inputs 4
number of digital inputs 4
with a common reference potential 4
digital input version: type 1 acc. to IEC 61131 No
digital input version: type 2 acc. to IEC 61131 Yes
number of analog inputs 0
number of sensor inputs: for ground fault detection 1
number of sensor inputs: for temperature measurement 1
input voltage at digital input at DC rated value 230 V
number of outputs 2
number of semiconductor outputs 0
number of outputs as contact-affected switching element 2
number of analog outputs 0
switching behavior monostable
property of contacts of the relay outputs Floating NO contacts (NC reaction parameterizable via internal signal conditioning), of which 2 relay outputs connected to common ground and one relay output separately, can be freely assigned to the control functions (e.g. line, star (wye), delta contactor or signaling of the operating state)
wire length for digital signals maximum 200 m

Protective and monitoring functions 6

product function ground fault detection Yes
type of current for monitoring Type A (alternating currents and pulsing DC residual currents)
response time maximum 0 s
diagnostics function at sensor input with residual current transformer short-circuit detection Yes
relative measurement deviation of residual current transformer 7.5 %
design of the sensor for temperature measurement connectable PT100 / PT1000 / KTY83-110 / KTY84 / NTC

Precision 1

temperature drift per °C 0.05 %/°C

Installation/ mounting/ dimensions 9

mounting position any
height 100 mm
width 22.5 mm
depth 124.5 mm
required spacing: top 40 mm
required spacing: bottom 40 mm
required spacing: left 0 mm
required spacing: right 0 mm
diameter of inlet opening of connectable residual current transformer 35 ... 210 mm

Connections/ Terminals 7

product component removable terminal for auxiliary and control circuit Yes
type of electrical connection for auxiliary and control circuit screw-type terminals
type of connectable conductor cross-sections: solid 1x (0.5 ... 2.5 mm2), 2x ( 0.5 ... 1.5 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 1x (0.5 ... 2.5 mm2), 2x (0.5 ... 1.0 mm2)
type of connectable conductor cross-sections: for AWG cables solid 1x (20 ... 14), 2x (20 ... 16)
tightening torque with screw-type terminals 0.6 ... 0.8 N·m
tightening torque [lbf·in] with screw-type terminals 5.2 ... 7 lbf·in

Ambient conditions 11

installation altitude at height above sea level: 1 maximum 2 000 m
installation altitude at height above sea level: 2 maximum 3 000 m; max. +50 °C (no protective separation)
installation altitude at height above sea level: 3 maximum 4 000 m; No protective separation at 40 °C
ambient temperature: during operation -25 ... +60 °C
ambient temperature: during storage -40 ... +80 °C
ambient temperature: during transport -40 ... +80 °C
environmental category: during operation according to IEC 60721 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
environmental category: during storage according to IEC 60721 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
environmental category: during transport according to IEC 60721 2K2, 2C1, 2S1, 2M2
relative humidity during operation 10 ... 95 %
contact rating of auxiliary contacts according to UL B300 / R300

Short-circuit protection 1

design of short-circuit protection per output Fuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit- breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A)

Electrical Safety 1

touch protection against electrical shock finger-safe

ATEX 2

certificate of suitability according to ATEX directive 2014/34/EU BVS 06 ATEX F001
explosion device group and category according to ATEX directive 2014/34/EU II (2) G, II (2 ) D, I (M2)

Galvanic isolation 2

(electrically) protective separation according to IEC 60947-1 All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)
galvanic isolation between inputs and electronics No

Control circuit/ Control 6

type of voltage of the control supply voltage AC/DC
control supply voltage at AC: at 50 Hz rated value 110 ... 240 V
control supply voltage at AC: at 60 Hz rated value 110 ... 240 V
control supply voltage frequency 1 50 ... 60 Hz
control supply voltage at DC rated value 110 ... 240 V
operating range factor control supply voltage rated value at DC: initial value 0.85

Logistics 7

Net weight 0.205 kg
Package dimensions 109 × 36 × 152 mm
Country of origin DE
Shipping weight 0.705 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3UF7600-1AU01-0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL2302-1
  • UL2303-1
  • UL2304-1
  • UL2305-1
  • UL2306-1
  • UL2307-1
Quick answers

Questions about the MM

Which supply voltage is MM rated for?

The rated operational voltage of MM is 240 V AC.

What is the EAN of MM?

The EAN (GTIN) of MM is 4011209916234.

Where does MM ship from, and how fast?

MM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
