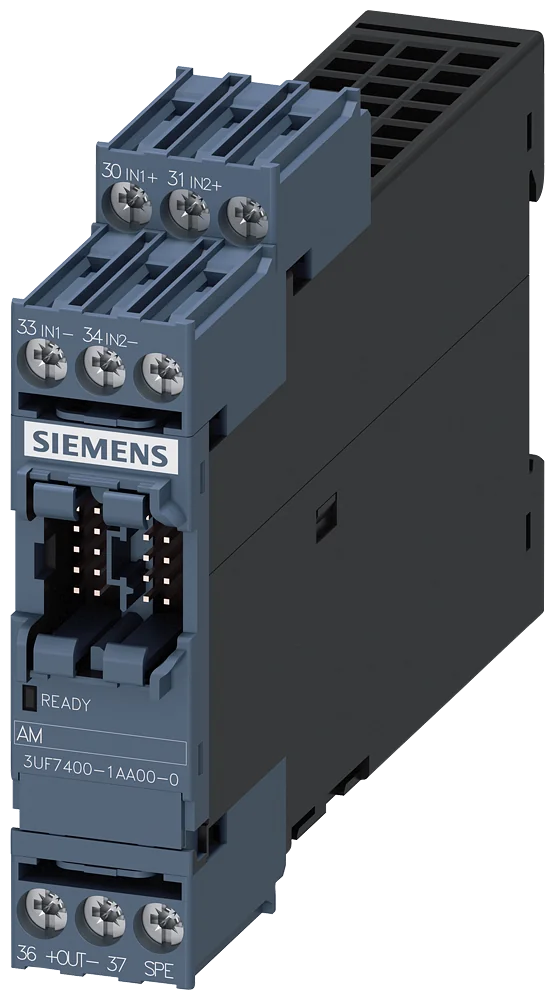

The Siemens 3UF7400-1AA00-0 is a motor controller from the SENTRON/SIRIUS 3UF7 series. Analog module, 2 inputs (passive) and 1 output, for analog signals 0/4...20 mA for SIMOCODE pro V basic unit. Supplied by Stoklink for industrial and commercial low-voltage applications.
The Siemens 3UF7400-1AA00-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
| product brand name | SIMOCODE |
|---|---|
| product designation | analog modules |
| product type designation | AM |
| product component: input for thermistor connection | No |
|---|---|
| product component: input for analog temperature sensors | No |
| product component: input for ground fault detection | No |
| consumed active power | 0.9 W |
| surge voltage resistance rated value | 4 000 V |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2 g |
| reference code according to IEC 81346-2 | B |
| reference code according to IEC 81346-2:2019 | B |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| SVHC substance name | Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 |
| EMC emitted interference according to IEC 60947-1 | class A |
|---|---|
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference: due to burst according to IEC 61000-4-4 | 1 kV |
| conducted interference: due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Part number | 3UF7400-1AA00-0 |
|---|---|
| Type designation | AM |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209628373 |
| ETIM class | EC002613 |
| eCl@ss | 27370805 |
| number of inputs | 2 |
|---|---|
| number of digital inputs | 0 |
| number of analog inputs | 2 |
| input current as destruction limit maximum permissible | 40 mA |
| input resistance | 50 Ω |
| A/D resolution at the analog input | 12 bit |
| A/D conversion time at the analog input | 150 ms |
| diagnostics function at the analog input open-circuit detection | Yes |
| measuring range of current parameterizable | 0/4 mA ... 20 mA |
| relative symmetrical measuring accuracy | 1% |
| relative symmetrical accuracy of output signal | 1% |
| number of outputs | 1 |
| number of semiconductor outputs | 0 |
| number of outputs as contact-affected switching element | 0 |
| number of analog outputs | 1 |
| output load at analog output maximum | 500 Ω |
| D/A conversion time at analog output | 25 ms |
| A/D resolution at analog output | 12 bit |
| output voltage maximum | 30 V |
| type of voltage of the output voltage | DC |
| property of the output short-circuit proof | Yes |
| value range of output current parameterizable | 0/4 mA ... 20 mA |
| mounting position | any |
|---|---|
| fastening method | screw and snap-on mounting |
| height | 92 mm |
| width | 22.5 mm |
| depth | 124 mm |
| required spacing: top | 40 mm |
| required spacing: bottom | 40 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
|---|---|
| type of connection technology | 2-wire connection |
| type of shield: at input | shield recommended up to 30 m and/or when exiting control cabinet, shield required from 30 m |
| type of shield: at output | shield recommended up to 30 m and/or when exiting control cabinet, shield required from 30 m |
| type of connectable conductor cross-sections: solid | 1x (0.5 ... 4.0mm2), 2x (0.5 ... 2.5 mm2) |
| type of connectable conductor cross-sections: finely stranded with core end processing | 1x (0.5 ... 2.5 mm2), 2x (0.5 ... 1.5 mm2) |
| type of connectable conductor cross-sections: for AWG cables solid | 1x (20 ... 14), 2x (20 ... 16) |
| tightening torque with screw-type terminals | 0.8 ... 1.2 N·m |
| tightening torque [lbf·in] with screw-type terminals | 7 ... 10.3 lbf·in |
| installation altitude at height above sea level: 1 maximum | 2 000 m |
|---|---|
| installation altitude at height above sea level: 2 maximum | 3 000 m; max. +50 °C (no protective separation) |
| installation altitude at height above sea level: 3 maximum | 4 000 m; max. +40 °C (no protective separation) |
| ambient temperature: during operation | -25 ... +60 °C |
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| environmental category: during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| environmental category: during storage according to IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 |
| environmental category: during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| relative humidity during operation | 5 ... 95 % |
| touch protection against electrical shock | finger-safe |
|---|
| galvanic isolation: between output and electronics | No |
|---|
| Net weight | 0.11 kg |
|---|---|
| Package dimensions | 149 × 112 × 33 mm |
| Country of origin | DE |
| Shipping weight | 0.61 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 31 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe EAN (GTIN) of AM is 4011209628373.
AM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
