Part number
3UF7330-1AB00-0
Model no
DM-FP
$610.17 In stock · 24 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3UF7

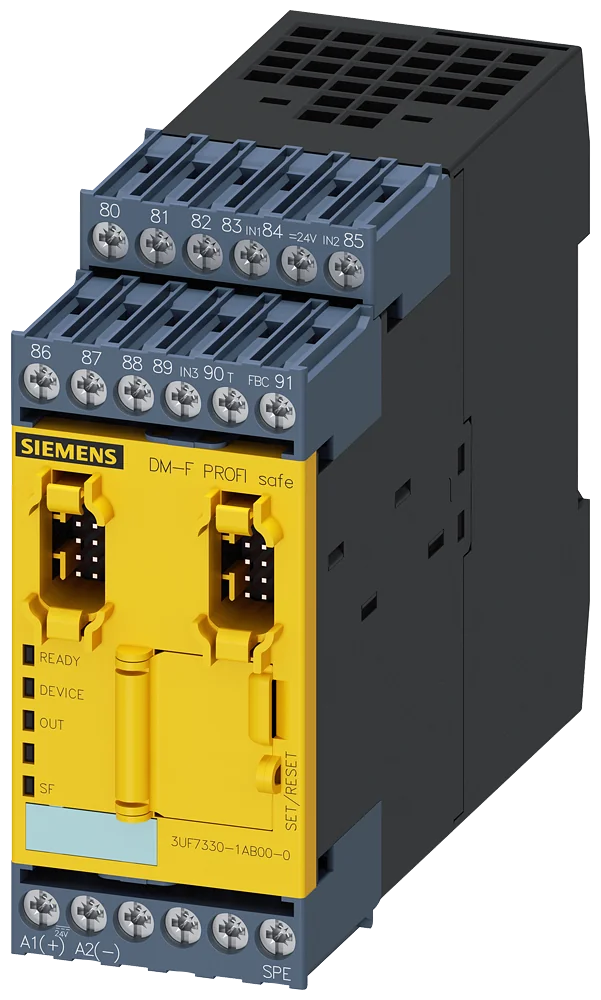

Siemens 3UF7330-1AB00-0 3UF7 24V Motor Controller

Rated operational voltage
24 V AC
EAN
4011209841772
Description

About the DM-FP

The Siemens 3UF7330-1AB00-0 is a motor controller from the SENTRON/SIRIUS 3UF7 series. Fail-safe digital module DM-F PROFIsafe, for fail-safe shutdown via bus/PROFIsafe, Us: 24 V DC, 2 relay enabling circuits, 2 relay outputs, 3 inputs, maximum achievable SIL IEC 61508: 3, maximum achievable PL ISO 13849-1: E. Supplied by Stoklink for industrial and commercial low-voltage applications.

Certifications & Standards

  • IEC 61508
  • EN 61131-2
  • IEC 60947-1

Applications & Use Cases

The Siemens 3UF7330-1AB00-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

144 values · Last verified 31 Oct 2026

General 4

product brand name SIMOCODE
product designation Fail-safe digital module
design of the product for fail-safe shutdown
product type designation DM-FP

General technical data 33

product function: EMERGENCY OFF function No
product function: automatic start No
product function: light barrier monitoring No
product function: light array monitoring No
product function: protective door monitoring No
product function: magnetically operated switch monitoring NC-NO No
product function: pressure-sensitive mat monitoring No
product function: monitored start-up No
product component: input for thermistor connection No
product component: digital input Yes
product component: input for analog temperature sensors No
product component: input for ground fault detection No
product component: relay output Yes
consumed active power 4 W
insulation voltage with degree of pollution 3 at AC rated value 300 V
surge voltage resistance rated value 4 000 V
shock resistance according to IEC 60068-2-27 15 g / 11 ms
vibration resistance according to IEC 60068-2-6 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2 g
operating frequency maximum 360 1/y
switching capacity current of the NO contacts of the relay outputs at AC-15: at 24 V 3 A
switching capacity current of relay enabling circuits at AC-15: at 24 V 3 A
switching capacity current of relay enabling circuits at DC-13: at 24 V 4 A
mechanical service life (operating cycles) typical 10 000 000
electrical endurance (operating cycles) typical 100 000
buffering time in the event of power failure 60 ms
recovery time: after power failure typical 1 s
backslide delay time in the event of power failure: typical 40 ms
backslide delay time in the event of power failure: maximum 80 ms
reference code according to IEC 81346-2 F
reference code according to IEC 81346-2:2019 F
type of input characteristic Type 2 in accordance with EN 61131-2
Substance Prohibitance (day/month/year) 05/01/2012
SVHC substance name Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Electromagnetic compatibility 10

EMC emitted interference according to IEC 60947-1 class A
EMC immunity according to IEC 60947-1 corresponds to degree of severity 3
conducted interference: due to burst according to IEC 61000-4-4 2 kV network connection / 1 kV control connection
conducted interference: due to conductor-earth surge according to IEC 61000-4-5 1 kV
conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 0.5 kV
conducted interference: due to high-frequency radiation according to IEC 61000-4-6 10 V
field-based interference according to IEC 61000-4-3 10 V/m
electrostatic discharge according to IEC 61000-4-2 6 kV contact discharge / 8 kV air discharge
conducted HF interference emissions according to CISPR11 corresponds to degree of severity A
field-bound HF interference emission according to CISPR11 corresponds to degree of severity A
Show all 144 specifications ↓ Show less ↑97 more values in Identification, Inputs/ Outputs, Product Function, Communication/ Protocol, Installation/ mounting/ dimensions, Connections/ Terminals, Ambient conditions, Short-circuit protection, Safety related data, (λdd), ISO 13849, IEC 61508, Electrical Safety, ATEX, Response times/ Monitoring times, Galvanic isolation, Control circuit/ Control, Logistics.

Identification 10

Part number 3UF7330-1AB00-0
Type designation DM-FP
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209841772
ETIM class EC002613
eCl@ss 27370805

Inputs/ Outputs 17

product function: parameterizable inputs Yes
product function: parameterizable outputs Yes
number of inputs 4
design of input: feedback input Yes
number of digital inputs 3
with a common reference potential 4
digital input version: type 1 acc. to IEC 61131 No
digital input version: type 2 acc. to IEC 61131 Yes
number of analog inputs 0
number of outputs 2
number of semiconductor outputs 0
number of outputs as contact-affected switching element: ● 2
number of outputs as contact-affected switching element: as NO contact safety-related instantaneous contact 2
number of analog outputs 0
switching behavior monostable
property of contacts of the relay outputs Fail-safe NO contacts
wire length for digital signals maximum 300 m

Product Function 8

suitability for use: position switch monitoring No
suitability for use: EMERGENCY-OFF circuit monitoring No
suitability for use: valve monitoring No
suitability for use: opto-electronic protection device monitoring No
suitability for use: tactile sensor monitoring No
suitability for use: magnetically operated switch monitoring No
suitability for use: proximity switch monitoring No
suitability for use: safety-related circuits No

Communication/ Protocol 1

protocol is supported PROFIsafe protocol Yes

Installation/ mounting/ dimensions 9

mounting position any
fastening method screw and snap-on mounting
height 106 mm
width 45 mm
depth 124 mm
required spacing: top 40 mm
required spacing: bottom 40 mm
required spacing: left 0 mm
required spacing: right 0 mm

Connections/ Terminals 7

product component removable terminal for auxiliary and control circuit Yes
type of electrical connection for auxiliary and control circuit screw-type terminals
type of connectable conductor cross-sections: solid 1x (0.5 ... 4.0mm2), 2x (0.5 ... 2.5 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 1x (0.5 ... 2.5 mm2), 2x (0.5 ... 1.5 mm2)
type of connectable conductor cross-sections: for AWG cables solid 1x (20 ... 12), 2x (20 ... 14)
tightening torque with screw-type terminals 0.8 ... 1.2 N·m
tightening torque [lbf·in] with screw-type terminals 7 ... 10.3 lbf·in

Ambient conditions 11

installation altitude at height above sea level: 1 maximum 2 000 m
installation altitude at height above sea level: 2 maximum 3 000 m; max. +50 °C (no protective separation)
installation altitude at height above sea level: 3 maximum 4 000 m; max. +40 °C (no protective separation)
ambient temperature: during operation -25 ... +60 °C
ambient temperature: during storage -40 ... +80 °C
ambient temperature: during transport -40 ... +80 °C
environmental category: during operation according to IEC 60721 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
environmental category: during storage according to IEC 60721 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
environmental category: during transport according to IEC 60721 2K2, 2C1, 2S1, 2M2
relative humidity during operation 5 ... 95 %
contact rating of auxiliary contacts according to UL B300 / R300

Short-circuit protection 1

design of the fuse link for short-circuit protection of relay enabling circuits required gL/gG: 4 A

(λdd) 2

failure rate [FIT] at rate of non-recognizable hazardous failures (λdu) 7 FIT
average diagnostic coverage level (DCavg) 99 %

ISO 13849 1

performance level (PL) according to EN ISO 13849-1 e

IEC 61508 6

Safety Integrity Level (SIL): according to IEC 61508 SIL 3
safety device type according to IEC 61508-2 Type B
PFDavg with low demand rate: according to IEC 61508 2E-5
Safe failure fraction (SFF) 99 %
hardware fault tolerance: according to IEC 61508 1
T1 value for proof test interval or service life according to IEC 61508 20 a

Electrical Safety 1

touch protection against electrical shock finger-safe

ATEX 2

certificate of suitability according to ATEX directive 2014/34/EU BVS 06 ATEX F001
explosion device group and category according to ATEX directive 2014/34/EU II (2) G, II (2 ) D, I (M2)

Response times/ Monitoring times 3

PROFIsafe monitoring time F-WD-Time 250 ms
response time: in case of failure OFDT 200 ms
response time: in faultless state WCDT 150 ms

Galvanic isolation 2

(electrically) protective separation according to IEC 60947-1 All circuits in SIMOCODE pro are with protective separation, i.e. they are designed with doubled creepage paths and clearances. NOTICE: The information in the "Protective Separation" test report, No. 2668, must be observed.
design of the electrical isolation Protective separation in accordance with IEC 60947-1 for all circuits, up to installation altitude of 2000 m

Control circuit/ Control 5

type of voltage of the control supply voltage DC
control supply voltage at DC rated value 24 V
operating range factor control supply voltage rated value at DC: initial value 0.8
inrush current peak: at 24 V 8.3 A
duration of inrush current peak: at 24 V 1 ms

Logistics 7

Net weight 0.315 kg
Package dimensions 116 × 66 × 140 mm
Country of origin DE
Shipping weight 0.815 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3UF7330-1AB00-0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 61508
  • EN 61131-2
  • IEC 60947-1
Quick answers

Questions about the DM-FP

Which supply voltage is DM-FP rated for?

The rated operational voltage of DM-FP is 24 V AC.

What is the EAN of DM-FP?

The EAN (GTIN) of DM-FP is 4011209841772.

Where does DM-FP ship from, and how fast?

DM-FP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
