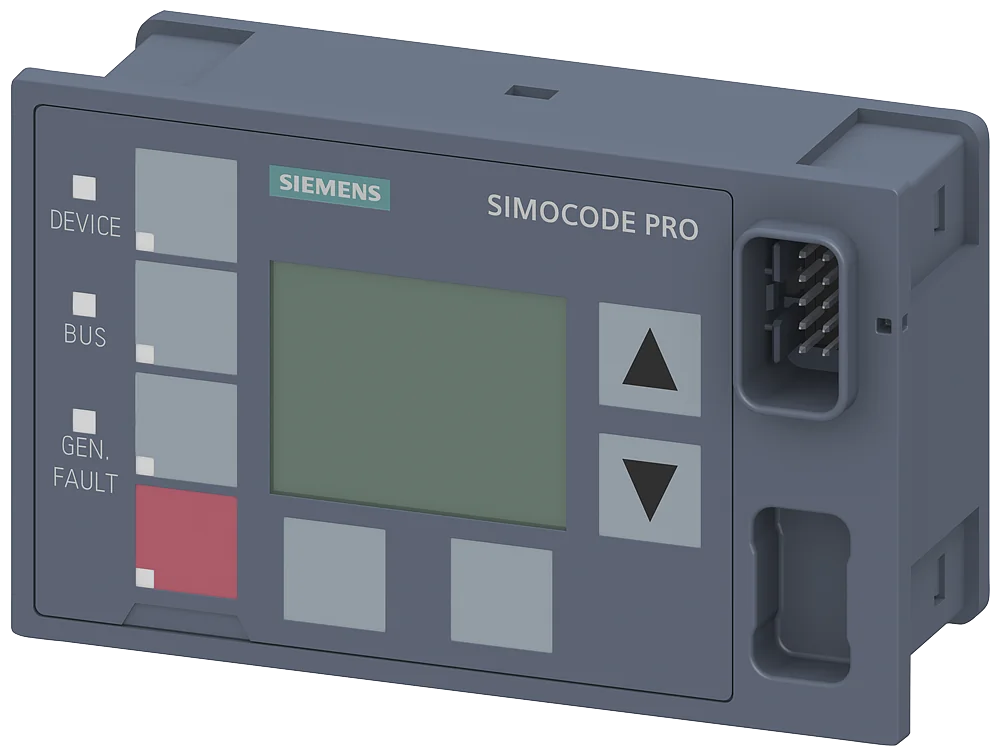

The Siemens 3UF7210-1AA01-0 is a motor controller from the SENTRON/SIRIUS 3UF7 series. Operator panel with display for SIMOCODE pro V(without PN GP) installation in control cabinet door or front plate, can be plugged onto basic unit or expansion modules, 7 LEDs for status display and 4 freely assignable buttons for manual control, color: titanium gray. Supplied by Stoklink for industrial and commercial low-voltage applications.
The Siemens 3UF7210-1AA01-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
| product brand name | SIMOCODE |
|---|---|
| product designation | operating module with display |
| product type designation | BBD |
| national language on the display screen is supported | English / German / French / Spanish / Portuguese / Italian / Polish / Finnish |
|---|---|
| color | titanium grey |
| certificate of suitability | CE / UL / CSA / CCC / C-Tick (RCM) / GOST / NOM / ABS / DNV / GL / LRS / RoHS |
| consumed active power | 0.3 W |
| insulation voltage: rated value | 300 V |
| surge voltage resistance rated value | 4 000 V |
| protection class IP on the front | IP54 |
| vibration resistance | 1 ... 6 Hz / 15 mm; 6 ... 500 Hz / 2 g |
| reference code according to IEC 81346-2 | A |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 |
| EMC emitted interference according to IEC 60947-1 | class A |
|---|---|
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference: due to burst according to IEC 61000-4-4 | 1 kV |
| conducted interference: due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Part number | 3UF7210-1AA01-0 |
|---|---|
| Type designation | BBD |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047621043210 |
| ETIM class | EC002614 |
| eCl@ss | 27370806 |
| mounting position | vertical |
|---|---|
| fastening method | front plate mounting |
| height | 60 mm |
| width | 96 mm |
| depth | 44 mm |
| installation altitude at height above sea level: maximum | 4 000 m |
|---|---|
| installation altitude at height above sea level: 1 maximum | 2 000 m |
| installation altitude at height above sea level: 2 maximum | 3 000 m; max. +50 °C (no protective separation) |
| installation altitude at height above sea level: 3 maximum | 4 000 m; max. +40 °C (no protective separation) |
| ambient temperature: during operation | 0 ... 60 °C |
| ambient temperature: during storage | -20 ... +70 °C |
| ambient temperature: during transport | -20 ... +70 °C |
| environmental category: during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| environmental category: during storage according to IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 |
| environmental category: during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| Net weight | 0.114 kg |
|---|---|
| Package dimensions | 103 × 73 × 48 mm |
| Country of origin | CZ |
| Shipping weight | 0.614 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 31 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe EAN (GTIN) of BBD is 4047621043210.
BBD ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
